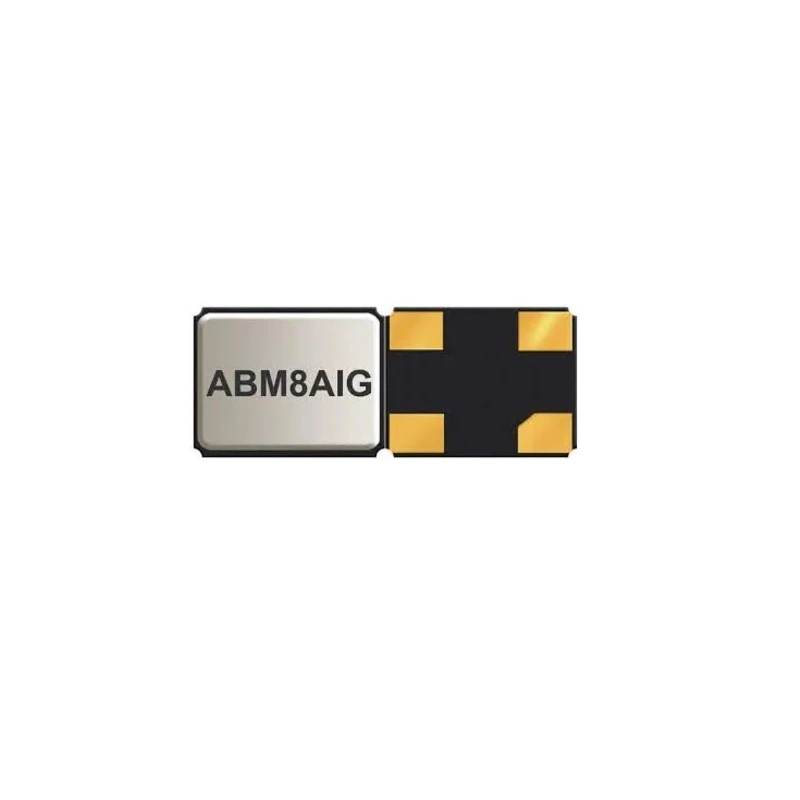

Abracon 32 MHz Surface Mount Ceramic Package Crystal ±50 ppm Frequency Stability 12 pF Load ABM8AIG-32.000MHZ-12-2Z-T3

Name: Abracon 32 MHz Surface Mount Ceramic Package Crystal ±50 ppm Frequency Stability 12 pF Load ABM8AIG-32.000MHZ-12-2Z-T3
Brand: Abracon
SKU: 177311



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	0.8mm
Length	3.2mm
Model	ABM8AIG-32.000MHZ-12-2Z-T3
Packaging	Tape & Reel
Width	2.5mm
Mount Type	Surface
Series	ABM8AIG
Maximum Operating Temperature	85°C
Package Type	Ceramic package
Minimum Operating Temperature	-40°C
Standards/Approvals	RoHS
Pin Count	4
Automotive Standard	AEC-Q200
Standard Frequency	32MHz
Load Capacitance	12pF
Series Resistance	40Ω
Automotive Grade 1	-40°C to +125°C

Key Features

The crystal features a hermetically seam sealed 4-pin ceramic package measuring 3.2 mm length, 2.5 mm width, and 0.8 mm height.
It supports a load capacitance of 12 pF ensuring reliable oscillation.
Automotive standard AEC-Q200 certified for temperature range -40°C to +125°C.
Series resistance of 40 Ω ensures stable frequency generation.
Ideal for automotive and industrial applications including infotainment, GPS, ADAS, and LiDAR systems.
RoHS and Pb free compliant with tape and reel packaging for easy surface mount assembly.

Product Description

Abracon ABM8AIG-32.000MHZ-12-2Z-T3 is a precision 32 MHz crystal unit designed for surface mount applications requiring high stability and ruggedness. It features a hermetically seam sealed 4-pin ceramic package measuring 3.2 mm in length, 2.5 mm in width, and 0.8 mm in height.

With a load capacitance of 12 pF and frequency stability of ±50 ppm over the operating temperature range, the crystal ensures consistent oscillation performance critical for timing circuits.

Manufactured to meet the automotive AEC-Q200 standard, it operates reliably from -40°C up to +125°C, suitable for harsh industrial and automotive environments. The series resistance of 40 Ω supports stable frequency output.

This crystal unit is commonly used in automotive infotainment systems, GPS navigation devices, advanced driver-assistance systems (ADAS), and LiDAR sensors where precise frequency control and durability are mandated.

The unit is RoHS compliant and packaged in tape and reel format, facilitating automated surface mount assembly on printed circuit boards. The crystal provides a consistent frequency reference with ±50 ppm stability. Compact ceramic package offers mechanical protection and long-term reliability.

AEC-Q200 qualification ensures automotive grade quality. Wide operating temperature range suits demanding environments. Packaging in tape and reel supports efficient manufacturing processes.

This product is an excellent choice for industrial and automotive engineers seeking high-quality, reliable timing components. Discover a full range of Abracon crystals and related components at EnvMart to enhance your electronic designs.
