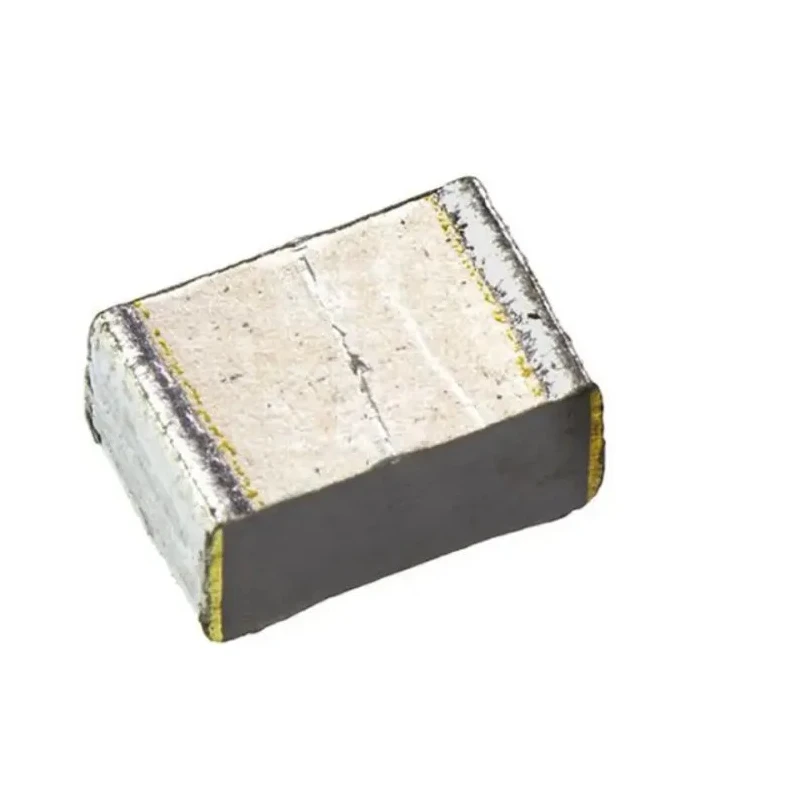

Panasonic Film Capacitor ECHU1H224GX9 50V DC 50V AC 220nF Surface Mount

Panasonic ECHU1H224GX9 film capacitor is designed for use in electronic equipment and power applications requiring a stable, low inductance capacitor with surface mount capability. It features a capacitance of 220nF and is rated for 50 volts DC and AC, making it suitable for filtering, coupling, and decoupling circuits in consumer and industrial electronics.

This capacitor exhibits excellent stability and reliability at higher temperatures, rated up to 125°C maximum operating temperature. Its compact dimensions of 6mm length, 4.1mm width, and 2.8mm height allow it to fit seamlessly into densely packed circuit boards. The two-pin surface mounting design facilitates automated assembly and reflow soldering processes.

Constructed to meet RoHS standards, the ECHU(X) series ensures environmental compliance. The product is manufactured in Japan under strict quality controls to deliver consistent electrical performance and long-term durability.

Compact surface mount film capacitor suitable for electronic circuit applications. Rated for 50 volts DC and AC operation ensuring stable performance. Capacitance of 220 nanofarads for precise capacitance requirements. Small dimensions: length 6mm, width 4.1mm, height 2.8mm for space-constrained designs.

Supports maximum operating temperature up to 125°C for high reliability. Features 2 pins for surface mounting on PCB assemblies. RoHS compliant ensuring environmental safety and regulatory compliance. Manufactured in Japan reflecting high quality standards.

This Film Capacitor is ideal for industrial electronics, consumer devices, power supplies, and communication equipment where reliable capacitive filtering and noise suppression are required. It supports surface mount technology enabling efficient PCB assembly lines in manufacturing settings.

For detailed design and integration, Panasonic provides technical documentation, including RoHS certificates and compliance statements.
