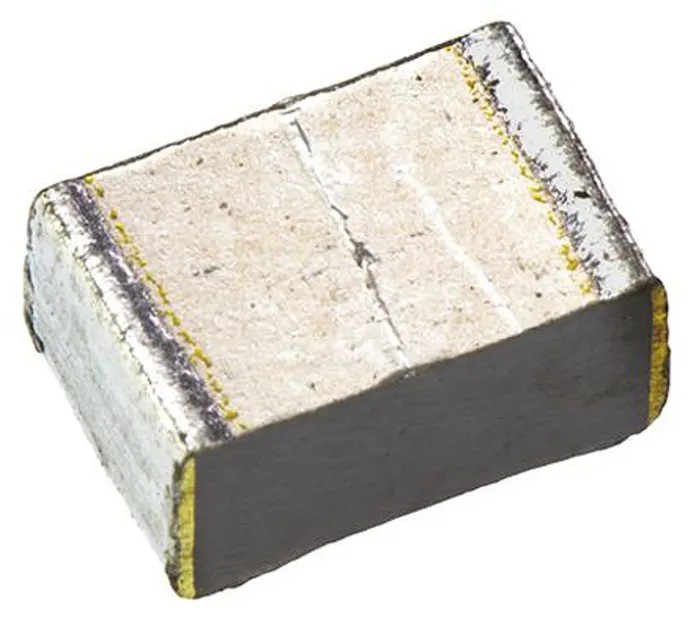

Panasonic Film Capacitor 1 nF 50V DC 50V AC Surface Mount PPS Material ECHU1H102GX5

Panasonic ECHU1H102GX5 Film Capacitor is a high-quality surface mount component featuring a nominal capacitance of 1 nF. It is constructed from stacked metallised PPS film, delivering excellent stability and reliability for electronic circuit applications. Rated for 50V DC and 50V AC voltage, this capacitor supports operation up to 125°C, making it suitable for robust industrial and commercial electronics assemblies.

This capacitor's compact dimensions of 2 mm length, 1.25 mm width, and 0.9 mm height allow its integration in dense PCB designs. Its low equivalent series resistance and lightweight design contribute to efficient circuit operation and ease of installation without adding excessive weight.

Panasonic's ECHU(X) series film capacitors are recommended for time-constant applications, oscillation and resonance circuits, filtering, and audio circuits, making them versatile components in various electronic and industrial equipment such as communications, power electronics, and control systems. These capacitors are RoHS compliant and designed specifically for reflow soldering processes, ensuring compatibility with automated manufacturing environments.

Constructed of stacked metallised PPS film for high reliability. Compact and lightweight design suitable for space-constrained circuits. Rated maximum operating temperature of 125°C for enhanced durability. Low equivalent series resistance (ESR) ensures efficient performance.

RoHS compliant, supporting environmental standards. Designed for reflow soldering processes ensuring compatibility with modern PCB assembly. Compact dimensions enable easy PCB mounting in tight spaces. Suitable for time-constant, oscillation, resonance, filtering, and audio circuit applications.

These Panasonic Film Capacitors are widely used in industrial electronics manufacturing, laboratory equipment, communication devices, and consumer electronics, delivering consistent performance under demanding conditions. Their surface mount capability supports modern automated PCB assembly processes, improving production efficiency and product reliability.
