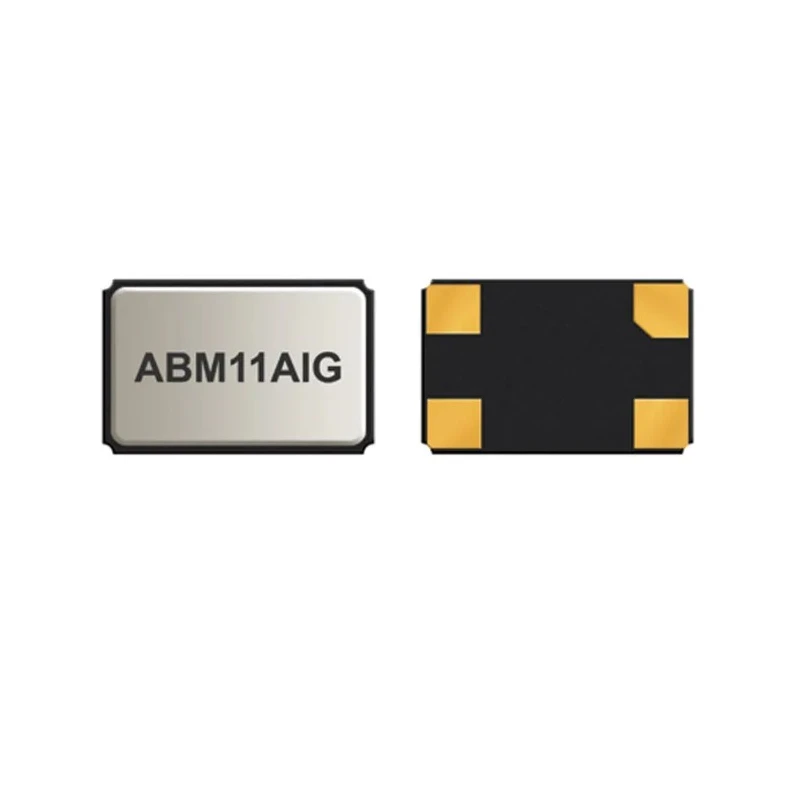

Abracon 27.12 MHz Surface Mount Crystal ±50 ppm Frequency Tolerance 10 pF Load Capacitance Ceramic ABM11AIG-27.120MHZ-4Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.55mm |
| Length | 2mm |
| Model | ABM11AIG-27.120MHZ-4Z-T3 |
| Packaging | Tape & Reel |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | ABM11AIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 27.12MHz |
| Load Capacitance | 10pF |
| Series Resistance | 60Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- The crystal features a ceramic 4-pin package designed for surface mount technology.
- It includes a 10 pF load capacitance tailored for stable oscillation frequency.
- Operating temperature ranges from -40°C to 125°C, with automotive grade 1 reliability.
- The product complies with RoHS directives and is AEC-Q200 qualified for automotive use.
- Its hermetically sealed ceramic package ensures improved protection and longevity.
- Typical series resistance is 60 Ohms, ensuring low energy loss in circuits.
- Suitable for infotainment, GPS/navigation, ADAS, and LiDAR industrial systems.
- Supplied in tape and reel packaging for efficient automated assembly.
Product Description
The Abracon ABM11AIG-27.120MHZ-4Z-T3 is a surface mount crystal unit designed for high-reliability automotive and industrial environments. Operating at a standard frequency of 27.12 MHz with a ±50 ppm frequency tolerance, it ensures precise timing essential for sensitive electronic applications.
Construction features include a hermetically hermetically seam-sealed ceramic package with 4 pins, with dimensions of 2 mm length, 1.6 mm width, and 0.55 mm height. The crystal supports a load capacitance of 10 pF and has a stable frequency stability of ±100 ppm across its operating range.
This product is built to withstand temperature extremes from -40°C to 125°C, surpassing automotive grade 1 standards and compliant with AEC-Q200 automotive certification. This guarantees performance longevity in harsh climates and rugged conditions.
The crystal’s low series resistance of 60 Ohms minimizes energy loss, making it suitable for power-sensitive applications typically found in infotainment systems, GPS navigation, advanced driver-assistance systems (ADAS), and LiDAR. Being RoHS and Pb-free compliant ensures environmentally friendly manufacturing.
The unit is shipped on tape and reel packaging, facilitating seamless integration into high-volume surface-mount technology production lines. The crystal features a ceramic 4-pin package designed for surface mount technology.
It includes a 10 pF load capacitance tailored for stable oscillation frequency. Operating temperature ranges from -40°C to 125°C, with automotive grade 1 reliability. The product complies with RoHS directives and is AEC-Q200 qualified for automotive use.
Its hermetically sealed ceramic package ensures improved protection and longevity. Typical series resistance is 60 Ohms, ensuring low energy loss in circuits. Suitable for infotainment, GPS/navigation, ADAS, and LiDAR industrial systems.
Supplied in tape and reel packaging for efficient automated assembly.
This crystal unit is optimal for electronic design engineers and manufacturers focused on automotive, industrial, and communication system applications. Browse more automotive-grade and industrial-grade Crystal Units and oscillators on EnvMart for all your precision timing component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this model is 27.12 MHz.
It features a load capacitance of 10 pF, which is tailored for stable oscillation frequency.
This unit has dimensions of 2 mm in length, 1.6 mm in width, and 0.55 mm in height.
The operating temperature range is from -40°C to 125°C, meeting automotive grade 1 standards.
The typical series resistance is 60 Ohms, ensuring low energy loss in circuits.
Yes, it complies with RoHS directives and is Pb-free, ensuring environmentally friendly manufacturing.
It is supplied in tape and reel packaging, which facilitates efficient automated assembly.
This model is AEC-Q200 qualified, making it suitable for automotive applications.
This unit is designed for surface mount technology, featuring a ceramic 4-pin package.
It is suitable for applications in infotainment systems, GPS/navigation, advanced driver-assistance systems (ADAS), and LiDAR.
The crystal features a hermetically sealed ceramic package, which provides improved protection and longevity.
This model has 4 pins, designed for surface mounting.
