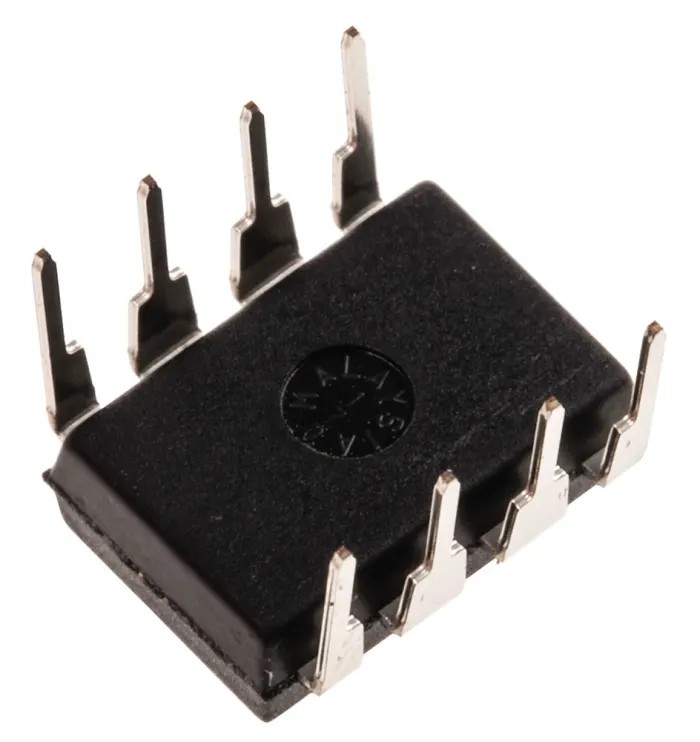

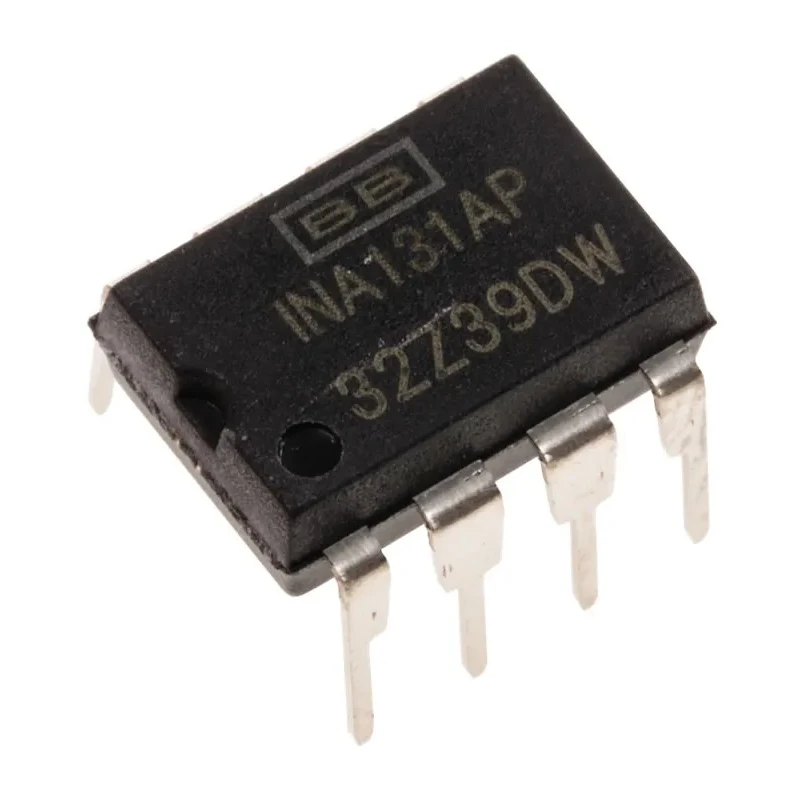

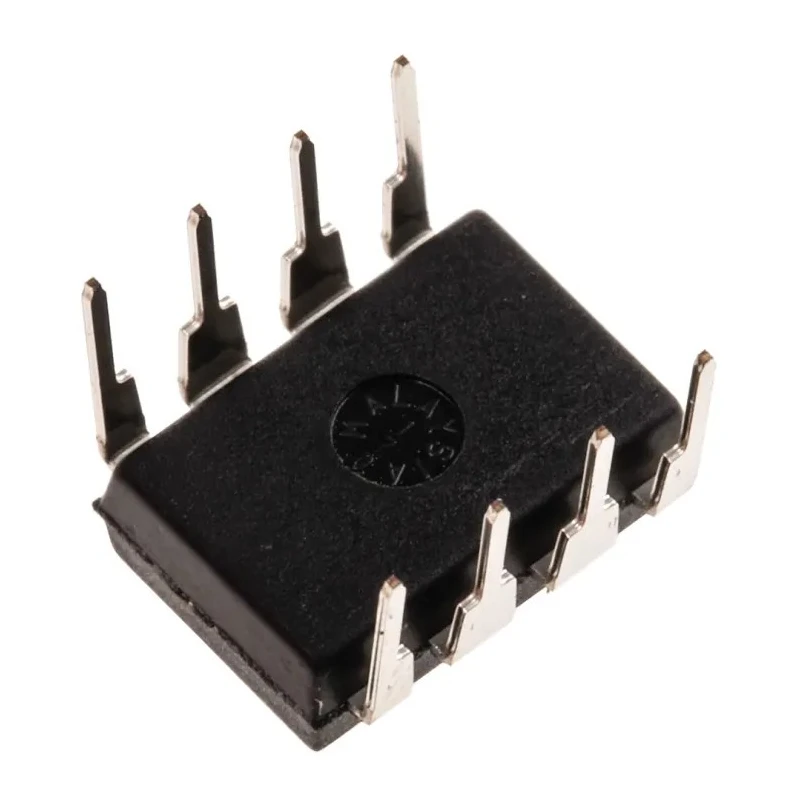

Texas Instruments Instrumentation Amplifier , 0.125 mV Input Offset, 70 kHz Gain Bandwidth, 8-Pin PDIP, 3 mA Supply INA131AP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | INA131AP |
| Mount Type | Through Hole |
| Series | INA131 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Pin Count | 8 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 5V |
| Supply Current | 3mA |
| GBP - Gain Bandwidth Product | 70kHz |
| Vos - Input Offset Voltage | 0.125 mV |
| Slew Rate | 0.7V/μs |
| CMRR - Common Mode Rejection Ratio | 106dB |
Key Features
- Single-channel instrumentation amplifier with 8-pin PDIP package.
- Operates on 5 to 18 V supply voltage.
- Extremely low input offset voltage of 0.125 mV for precise amplification.
- High common-mode rejection ratio of 106 dB to minimize noise interference.
- Low supply current of 3 mA supports low power applications.
- Slew rate of 0.7 V/μs ensures accurate and fast signal response.
- Wide operating temperature range from -40°C to 85°C for robust usage.
Product Description
Texas Instruments INA131AP is a precision instrumentation amplifier designed to amplify differential signals while rejecting common-mode noise, ideal for industrial and laboratory measurement applications.
This single-channel device comes in an 8-pin PDIP package and supports through-hole mounting, making it suitable for PCB integration with established manufacturing processes. Operating with a minimum supply voltage of 5 V up to a maximum of 18 V, the INA131AP is optimized for low-power operation with a 3 mA supply current.
The device features an input offset voltage of only 0.125 mV and a gain bandwidth product of 70 kHz, providing stable and accurate amplification in electrically noisy environments. A common-mode rejection ratio of 106 dB further enhances signal integrity.
The INA131AP's slew rate of 0.7 V/μs ensures rapid response to varying input signals, while the wide temperature range (-40°C to 85°C) ensures reliability under harsh conditions. Typical applications include precision test and measurement instrumentation, signal conditioning in industrial automation, data acquisition systems, and medical instrumentation.
Single-channel precision amplification with low offset voltage. High common-mode rejection for noise reduction. Wide supply voltage range and low current consumption. Robust temperature operating range for industrial use.
Convenient 8-pin PDIP package for through-hole PCB mounting.
This instrumentation amplifier is a reliable solution for engineers designing high-accuracy analog front-end circuits in industrial, laboratory, automotive, and medical electronics sectors.
Explore Texas Instruments products and Instrumentation Amplifiers at EnvMart for comprehensive electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input offset voltage of this model is 0.125 mV, providing precise amplification for differential signals.
This unit requires a supply current of 3 mA, making it suitable for low power applications.
The INA131AP operates within a temperature range of -40°C to 85°C, ensuring reliability in various environmental conditions.
The common-mode rejection ratio (CMRR) of this model is 106 dB, which helps minimize noise interference during signal amplification.
The INA131AP is available in an 8-pin PDIP package, suitable for through-hole mounting on PCBs.
The slew rate of 0.7 V/μs ensures that the amplifier can respond quickly to changes in input signals, maintaining signal integrity.
This model has a pin count of 8, which is standard for its package type.
Typical applications for this instrumentation amplifier include precision test and measurement instrumentation, signal conditioning, and data acquisition systems.
The INA131AP uses a through-hole mounting type, making it compatible with standard PCB manufacturing processes.
The maximum supply voltage for this model is 18 V, allowing for a range of operational configurations.
