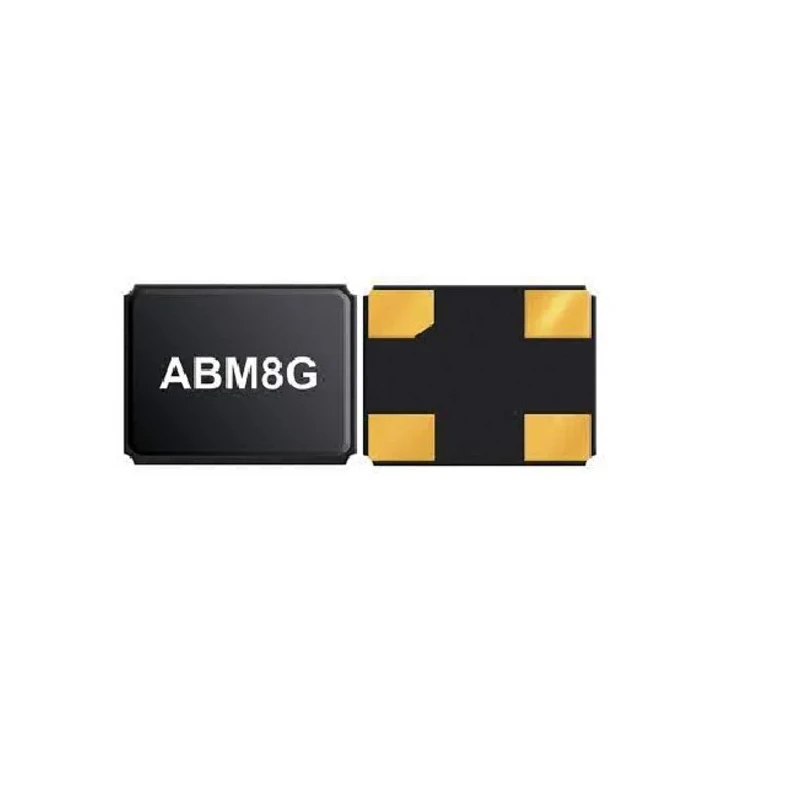

Abracon 25 MHz Crystal ±50 ppm Surface Mount 4-Pin 1 mm Height 3.2 mm Length 2.5 mm Width ABM8G-25.000MHZ-B4Y-T3

The Abracon ABM8G-25.000MHZ-B4Y-T3 is a high-precision 25 MHz crystal unit designed for surface mount applications. Featuring a 4-pin ultra-miniature ceramic glass-sealed package, this crystal is engineered for high density usage in modern electronic devices where space and reliability are critical.

This crystal offers a frequency tolerance of ±50 ppm along with frequency stability of ±30 ppm, ensuring precise and stable oscillation. It supports a typical load capacitance of 10 pF and has a series resistance of 60 ohms, making it suitable for a wide range of oscillator circuit requirements.

Its compact dimensions of 3.2 mm length, 2.5 mm width, and 1 mm height enable integration into thin equipment and high-density circuit boards. The operating temperature range from -10°C to 60°C allows reliable performance in various environmental conditions.

The glass sealed ceramic package provides enhanced protection and stability against mechanical and environmental stresses. This component complies with RoHS standards, reflecting environmentally responsible manufacturing.

Common applications for this crystal include modems, communication devices, wireless systems, test equipment, and PMCIA modules. Its low height and robustness make it ideal for modern electronic designs requiring compactness and durability.

Operates at a standard frequency of 25 MHz with tight ±50 ppm tolerance. Surface mount package with 4-pin configuration for compact PCB design. Dimensions include 3.2 mm length, 2.5 mm width, and 1 mm height for ultra-miniature applications.

Load capacitance of 10 pF ensures compatibility with typical oscillator circuits. Frequency stability is ±30 ppm for consistent performance. Operating temperature range is -10°C to 60°C suitable for various environments.

Series resistance of 60 ohms supports high frequency operation. RoHS compliant, assuring environmentally friendly manufacturing standards. Glass sealed ceramic package offers high reliability and resistance to high temperatures.

Ideal for applications such as modems, communication devices, test equipment, PMCIA, and wireless systems.

This crystal is a reliable choice for engineers seeking precise frequency control and surface mount convenience in high-density electronic assemblies. Explore further products and trusted brands in the Electronics Components category on EnvMart.
