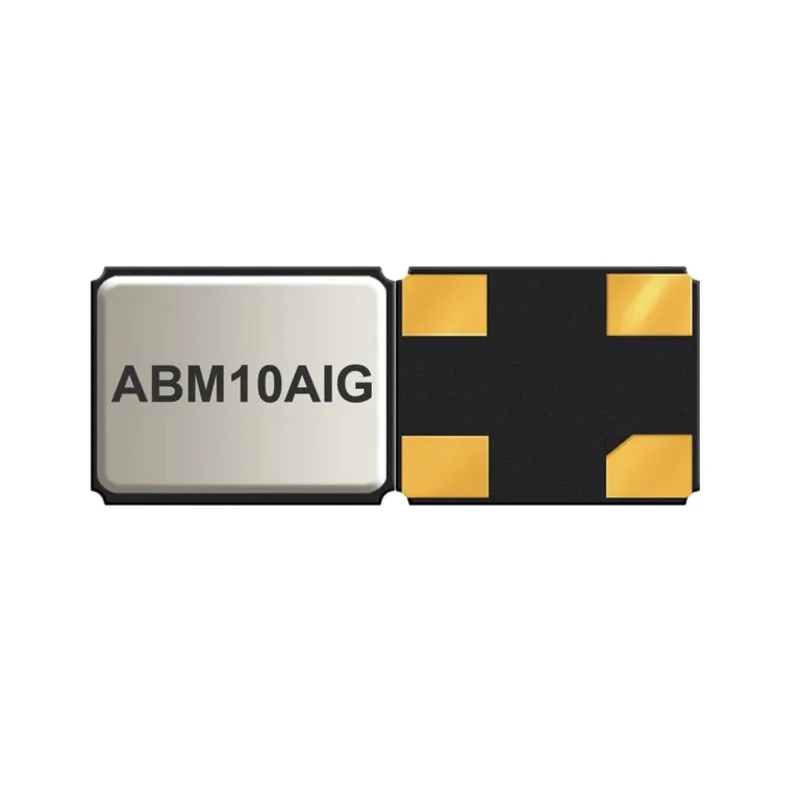

Abracon 25 MHz Crystal ±50 ppm Ceramic Package Surface Mount 4-Pin 2.5 mm x 2 mm x 0.55 mm ABM10AIG-25.000MHZ-4Z-T3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Abracon |
| Height | 0.55mm |
| Length | 2.5mm |
| Model | ABM10AIG-25.000MHZ-4Z-T3 |
| Packaging | Tape & Reel |
| Width | 2mm |
| Mount Type | Surface |
| Series | ABM10AIG |
| Maximum Operating Temperature | 125°C |
| Package Type | Ceramic package |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 4 |
| Automotive Standard | AEC-Q200 |
| Standard Frequency | 25MHz |
| Load Capacitance | 10pF |
| Series Resistance | 60Ω |
| Automotive Grade 1 | -40°C to +125°C |
Key Features
- The crystal operates at a standard frequency of 25 MHz.
- It comes in a hermetically seam-sealed ceramic surface mount package.
- Package dimensions are 2.5 mm length, 2 mm width, and 0.55 mm height.
- Series resistance is 60 Ω, supporting stable oscillations.
- Operating temperature range is -40°C to +125°C, meeting Automotive Grade 1 standards.
- Pin count is 4, designed for tape and reel packaging for production efficiency.
- The product is RoHS compliant and AEC-Q200 qualified for automotive applications.
- Ideal for infotainment systems, GPS, navigation, ADAS, and LIDAR applications.
Product Description
Abracon ABM10AIG-25.000MHZ-4Z-T3 is a high-precision 25 MHz crystal oscillator manufactured with a hermetically seam-sealed ceramic package designed for surface mount technology (SMT). This model offers excellent frequency stability and tolerance, optimized for demanding automotive and industrial environments.
The crystal features a standard frequency tolerance of ±50 ppm and frequency stability of ±100 ppm, ensuring accurate timing functions essential in communication and navigation systems. Its series resistance of 60 Ω guarantees stable oscillations with low signal loss.
With a compact ceramic package measuring 2.5 mm in length, 2 mm in width, and 0.55 mm in height, the device fits seamlessly into modern PCB designs.
This product complies with RoHS and is automotive-grade qualified under AEC-Q200 standards, capable of operating reliably within a temperature range from -40°C to +125°C, suitable for harsh thermal conditions found in automotive and industrial applications.
The crystal’s 4-pin configuration and tape & reel packaging support efficient automated assembly lines, minimizing handling and speeding production. The crystal operates at a standard frequency of 25 MHz. Hermetically sealed ceramic package protects against environmental factors.
Tape & reel packaging supports volume production efficiency. Automotive Grade 1 compliant with extended temperature range. Ideal for applications including infotainment systems, GPS, ADAS, and LiDAR technologies. Overall, the ABM10AIG series is engineered to meet high reliability and precision requirements in automotive, industrial, and communication fields.
For designers and engineers seeking dependable oscillators, this Crystal Unit from Abracon ensures robust performance and manufacturing quality. Explore EnvMart for advanced crystal oscillator technologies and related electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The standard frequency of this crystal oscillator is 25 MHz.
This model has dimensions of 2.5 mm in length, 2 mm in width, and 0.55 mm in height.
The crystal operates within a temperature range of -40°C to +125°C, making it suitable for harsh environments.
The series resistance of this model is 60 Ω, which supports stable oscillations.
This crystal oscillator features a 4-pin configuration.
The crystal is packaged in a tape and reel format, which is designed for efficient automated assembly.
Yes, this crystal is RoHS compliant, ensuring it meets environmental standards.
It meets the AEC-Q200 automotive standard, qualifying it for automotive applications.
The load capacitance for this model is specified at 10 pF.
This crystal is ideal for applications such as infotainment systems, GPS, ADAS, and LiDAR technologies.
The frequency stability of this model is ±100 ppm, which ensures accurate timing functions.
The country of origin for this crystal oscillator is India.
