| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 0.47mm |
| Length | 1mm |
| Model | BZX884S-C47-QYL |
| Mount Type | Surface |
| Series | BZX884S-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1006BD-2 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101, RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 365mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 47V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 375Ω |
| Typical Voltage Temperature Coefficient | 42mV/K |

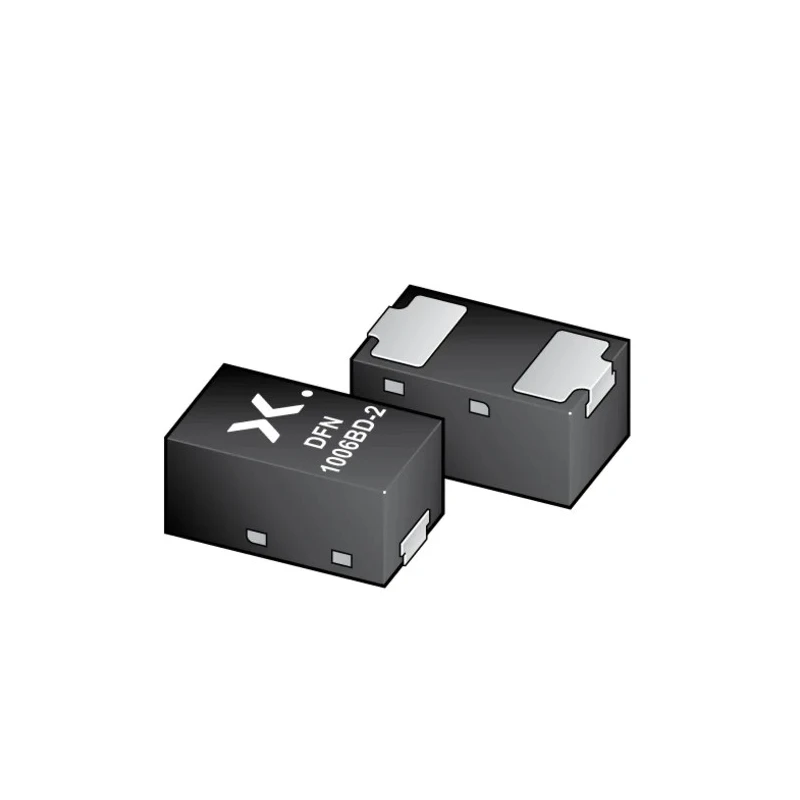

The Nexperia BZX884S-C47-QYL is a general-purpose zener diode designed for voltage regulation tasks in demanding applications. It provides a nominal zener voltage of 1.47 V with a tight 2% tolerance, supporting precise voltage references.
Encapsulated in an ultra-small surface mount DFN1006BD-2 plastic package, this diode offers a maximum power dissipation of 365 mW and a compact footprint of 1 mm length and 0.47 mm height, making it ideal for space-restricted PCB layouts.
This diode has excellent electrical characteristics including a maximum zener impedance of 375 ohms and a very low maximum reverse leakage current of 50 nA, ensuring minimal leakage and stable operation under reverse bias conditions.
It is qualified under the AEC-Q101 automotive standard and RoHS compliant, making it suitable for automotive and industrial electronics that require high reliability and environmental compliance.
The device operates reliably over a wide temperature range from -55°C to 150°C. It features side-wettable flanks to improve solder joint reliability during manufacturing processes.
Typical voltage temperature coefficient of 42 mV/K allows for predictable voltage performance changes with ambient temperature fluctuations, important in precise electronic designs.
The diode is configured as a single element within its chip. Test current is specified at 5 mA for standardized voltage measurements. Its package type is DFN1006BD-2, a leadless SMD plastic package. Zener diode series is BZX884S-Q, which includes variants for different voltages and tolerances.
This component is widely recommended for automotive, industrial, and general electronic circuit protection and voltage regulation uses. Explore a wide range of semiconductor components at EnvMart to find suitable parts for your electronic design and manufacturing requirements.
