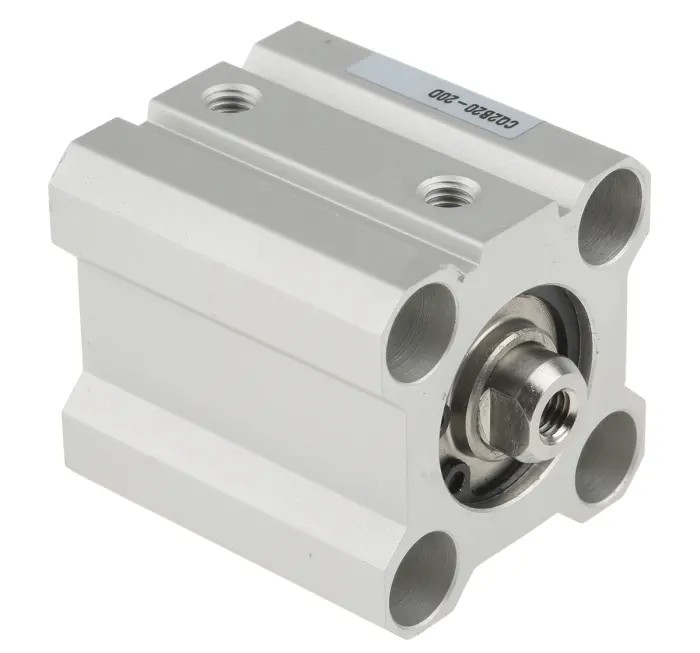

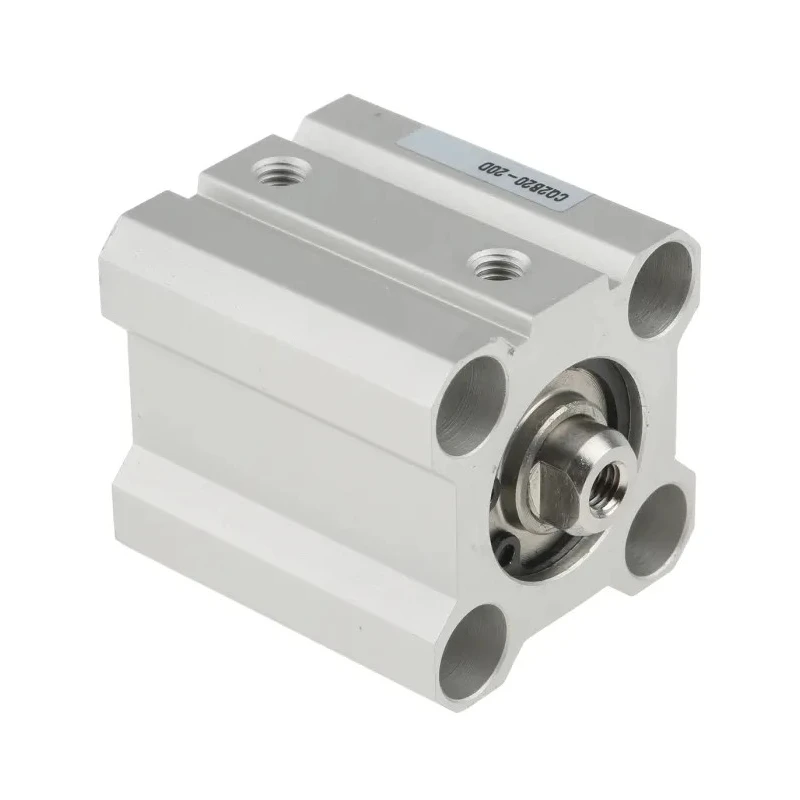

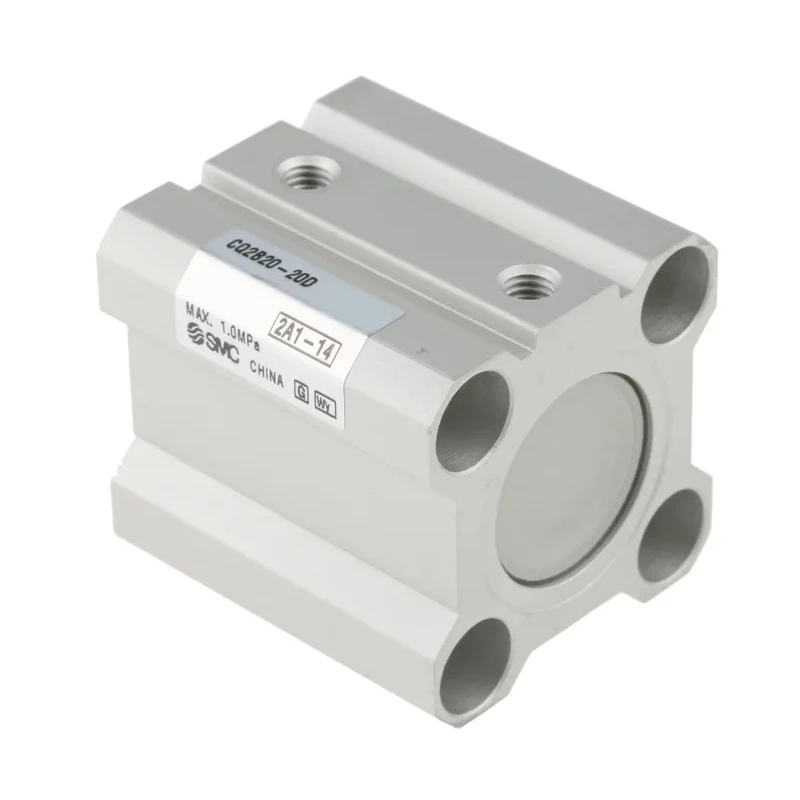

SMC Pneumatic Compact Cylinder Double Acting 20 mm Bore 20 mm Stroke Aluminium Alloy Body CQ2B20-20D
Specifications
| Country of Origin | India |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 36mm |
| Length | 44mm |
| Model | CQ2B20-20D |
| Gross Weight | 101g |
| Width | 36mm |
| Mount Type | Through Hole |
| Series | CQ2 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 20mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Cushioning Type | Air |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
Key Features
- Double acting cylinder suitable for precise pneumatic control.
- Compact design with 20 mm bore and 20 mm stroke length.
- Aluminium alloy body provides lightweight yet robust construction.
- Maximum operating pressure of 1.5 MPa for demanding applications.
- Wide operating temperature range from -10°C to 70°C.
- Through hole mount type for versatile installation options.
- Single rod type with female piston rod thread and metric thread standard.
- Air cushioning for smooth operation.
Product Description
SMC CQ2B20-20D Pneumatic Compact Cylinder is a high-quality double acting pneumatic actuator designed for industrial automation and fluid power systems. Featuring a 20 mm bore diameter and a 20 mm stroke length, this compact cylinder offers reliable performance with a robust aluminium alloy body construction and a through hole mount for flexible fittings.
The cylinder operates under a maximum pressure of 1.5 Mpa and supports piston speeds ranging from 50 to 500 mm/s, making it well-suited for applications requiring swift and accurate movements. Its air cushioning enhances the smoothness of the piston action and protects against impact wear.
The operational temperature range extends from -10°C to +70°C, allowing stable utilization in various industrial environments including assembly line automation, robotics, packaging, and material handling systems.
Its design incorporates a single piston rod with a female metric thread, assuring ease of integration with pneumatic tubing and automated equipment. The lightweight design reduces installation effort and improves system efficiency.
Double acting cylinder suitable for precise pneumatic control. Compact design with 20 mm bore and 20 mm stroke length. Aluminium alloy body provides lightweight yet robust construction. Maximum operating pressure of 1.5 MPa for demanding applications.
Wide operating temperature range from -10°C to 70°C. Through hole mount type for versatile installation options. Single rod type with female piston rod thread and metric thread standard. Air cushioning for smooth operation.
Lightweight at 101 grams facilitating easy assembly integration. Designed for piston speeds up to 500 mm/s ensuring responsive performance.
This compact pneumatic cylinder is ideal for industrial, manufacturing, automation, and laboratory applications that demand reliable pneumatic actuation in confined spaces. It complements a wide range of pneumatic systems and is engineered for durability and efficient performance in diverse operational conditions.
Explore more pneumatic cylinders and related fluid power tools with EnvMart for your industrial automation needs.
Explore more products in our Pneumatic Piston Rod Cylinder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The dimensions of this model are 44 mm in length, 36 mm in width, and 36 mm in height.
The maximum operating pressure for the SMC CQ2B20-20D is 1.5 MPa.
This model features a stroke length of 20 mm.
The bore diameter of the SMC CQ2B20-20D is 20 mm.
It utilizes air cushioning for smooth operation.
The gross weight of this unit is 101 grams.
The operational temperature range extends from -10°C to +70°C.
This model features a through hole mount type for versatile installation options.
It is a double acting cylinder, suitable for precise pneumatic control.
The rod type is single, with a female piston rod thread and metric thread standard.
This compact cylinder is ideal for industrial automation, robotics, packaging, and material handling systems.
The SMC CQ2B20-20D supports piston speeds ranging from 50 to 500 mm/s.
