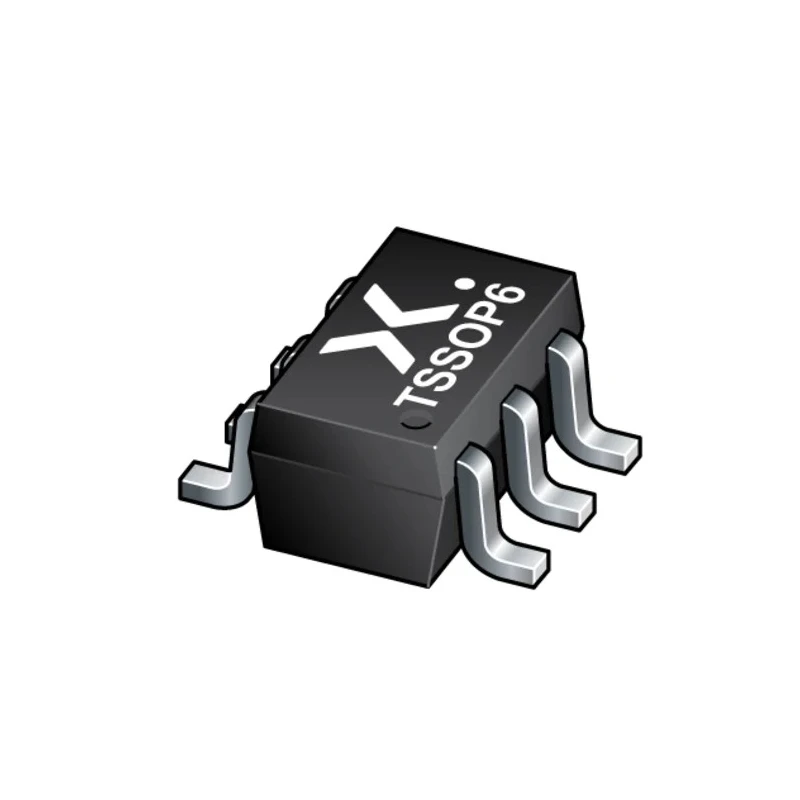

Nexperia 3-Input Multifunction Logic Gate SC-88 Package, 6 Pin, AUP Logic Family, -40°C to 125°C 74AUP1T97GW-Q100H

The Nexperia 74AUP1T97GW-Q100H is a high-performance 3-input multifunction logic gate housed in a compact 6-pin SC-88 surface mount package. It belongs to the AUP logic family and is designed to offer versatile functionality in integrated electronic circuits. Operating efficiently over a wide temperature range from -40°C to 125°C, this logic gate is suitable for automotive applications as well as demanding commercial electronics.

Its advanced design includes configurable logic functions such as MUX, AND, OR, NAND, NOR, inverter, and buffer modes, selectable via 3-bit input combinations. The incorporation of level translating, Schmitt-trigger inputs enhances noise immunity and signal integrity against voltage fluctuations and electromagnetic interference.

Operating from a supply voltage range of 2.3 V to 3.6 V, the device offers excellent CMOS low power dissipation with a maximum static current consumption of only 1.5 μA. The IOFF circuitry supports partial power-down mode, helping to reduce energy usage in idle states.

Additional features include low noise overshoot and undershoot (< 10% of VCC), overvoltage tolerant inputs up to 3.6 V, and latch-up performance beyond 100 mA per JESD 78 Class II, which ensures robustness in industrial and automotive environments.

This component complies with JEDEC standards and meets the automotive AEC-Q100 quality requirements, making it reliable for critical applications in industrial, automotive, consumer electronics, and embedded system design.

This multifunction gate supports configuration as MUX, AND, OR, NAND, NOR, inverter and buffer functions. Wide supply voltage range from 2.3 V to 3.6 V enables flexible application design. Built with Schmitt-trigger inputs for noise immunity and level translating capability.

Features low power CMOS technology with static ICC maximum of 1.5 μA ensuring power efficiency. Device pins count of 6 in SC-88 package ideal for compact electronic circuit integration. Compliance with JEDEC standards and automotive AEC-Q100 certification ensures high quality and reliability.

Low noise overshoot and undershoot less than 10% of VCC minimizes signal distortion during operations. Partial power-down mode operation provided by IOFF circuitry enhances energy savings in power-sensitive designs.
