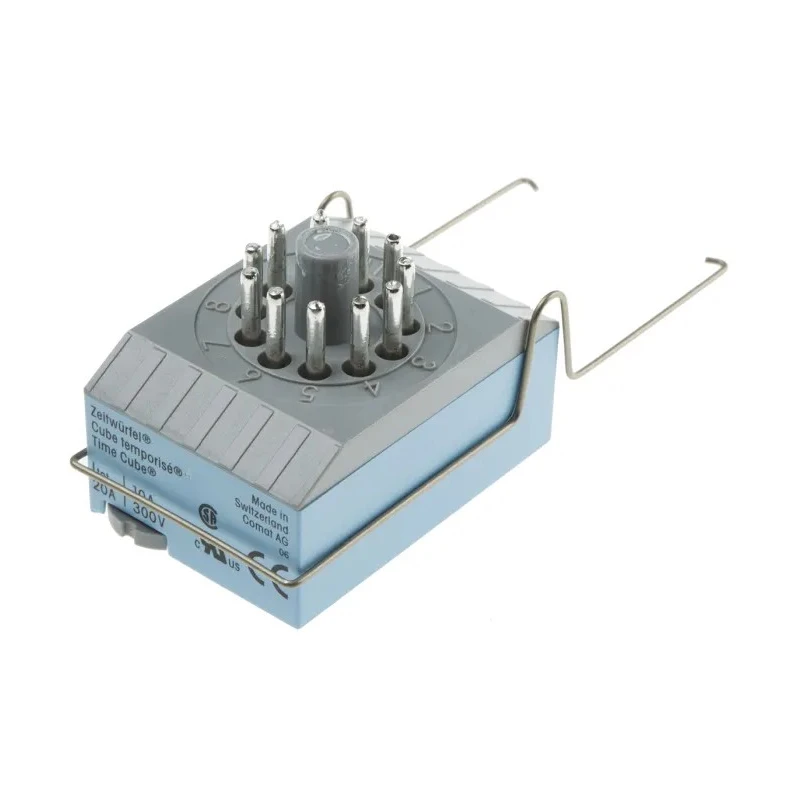

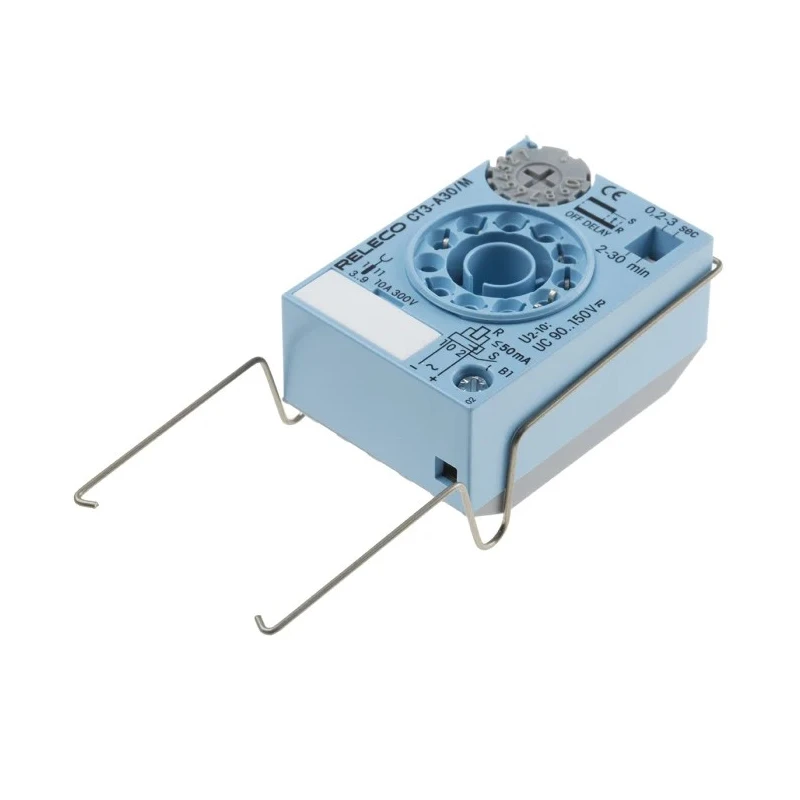

Releco Timer Relay 3-Contact 220 V DC 150 V AC 90 V AC Time Range 0.2 to 30 min and 0.2 to 30 s OFF Delay 11-Pin CT3-A

Free Delivery in India | Lowest Global Shipping Charges

Releco Timer Relay 3-Contact 220 V DC 150 V AC 90 V AC Time Range 0.2 to 30 min and 0.2 to 30 s OFF Delay 11-Pin CT3-A

Name: Releco Timer Relay 3-Contact 220 V DC 150 V AC 90 V AC Time Range 0.2 to 30 min and 0.2 to 30 s OFF Delay 11-Pin CT3-A
Brand: Releco
SKU: 187678
Price: 183.24 USD
Availability: InStock



Category Timer Relay Brand Releco Condition New

Specifications

Country of Origin	Sri Lanka
Brand	Releco
Height	37mm
Length	50mm
Model	CT3-A
IP Rating	IP40
Mode	OFF Delay
Width	35mm
Series	CT3-A
Maximum Operating Temperature	60°C
Contact Configuration	3 CO
Minimum Operating Temperature	-25°C
Time Range	0.2 to 30 min, 0.2 to 30 s
Terminal type	11-Pin
Standards/Approvals	EN 292-2, EN 60204-1
Number of Contacts	3
Number of Timer Functions	1
Switching Voltage	400V
Contact Current	10A
Supply DC Voltage	220 V dc
Timing Adjustment	Dial
Supply AC Voltage	150, 90V ac
TIMER 11 PIN OFF 150V ADCBrand	Releco

Key Features

Operates at a supply DC voltage of 220 V and AC voltages of 150 V and 90 V.
Equipped with three common output (3 CO) contacts and one timer function.
Switching voltage capacity of 400 V and contact current rated at 10 A.
Includes an 11-pin terminal-type design for easy relay socket connection.
Adjustable timing via dial potentiometer for fine control.
Compact dimensions of 50 mm length, 35 mm width, and 37 mm height.
Reliable IP40 rating ensures protection against solid objects and limited ingress.
Operates in temperature range from -25°C to 60°C for diverse environmental conditions.

Product Description

The Releco CT3-A Series Timer Relay is a highly reliable electrical component designed for precise timing control in industrial and automation applications. Featuring a 3-contact configuration, it operates efficiently at 220 V DC and AC voltages of 150 V and 90 V, accommodating flexible application requirements.

The set timing range spans from 0.2 to 30 minutes and 0.2 to 30 seconds, making it suitable for a wide range of operational cycles. The timer relay provides OFF delay functionality controlled via a user-friendly dial potentiometer, enabling fine time adjustments with high accuracy.

Compact and robust, the relay measures 50 mm in length, 35 mm in width, and 37 mm in height, optimized for panel mounting with its 11-pin terminal type socket. Rated IP40, it offers protection against ingress of solid foreign objects, ensuring durability in various usage environments.

Designed to withstand harsh conditions, the timer relay supports an operating temperature range from -25°C to +60°C. It carries certifications conforming to EN 292-2 and EN 60204-1 standards and is UL and CSA approved, reflecting its compliance with international safety and quality regulations.

Ideal for applications in industrial automation, electrical control systems, HVAC, and manufacturing processes, this device helps enable precise timing control for equipment sequencing and safety operations.

Operates with a 220 V DC supply and supports AC voltages of 150 V and 90 V. Offers a timer function with timing adjustable from 0.2 to 30 minutes and seconds. Utilizes 3 common output contacts (3 CO) for switching operations.

Features an 11-pin socket terminal for easy installation and replacement. Rated for switching voltage up to 400 V and contact current of 10 A.

This Releco CT3-A timer relay is a dependable solution to enhance automation and control with precise timing and robust electrical interfacing. Explore the Timer Relay category at EnvMart for additional models and specifications.
