| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Model | BAT54QB-QZ |
| Mount Type | Surface |
| Series | BAT54QB-Q |
| Maximum Operating Temperature | 150°C |
| Package Type | DFN1110D-3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Non-Repetitive Forward Surge Current Ifsm | 200mA |
| Maximum Forward Voltage Vf | 380mV |

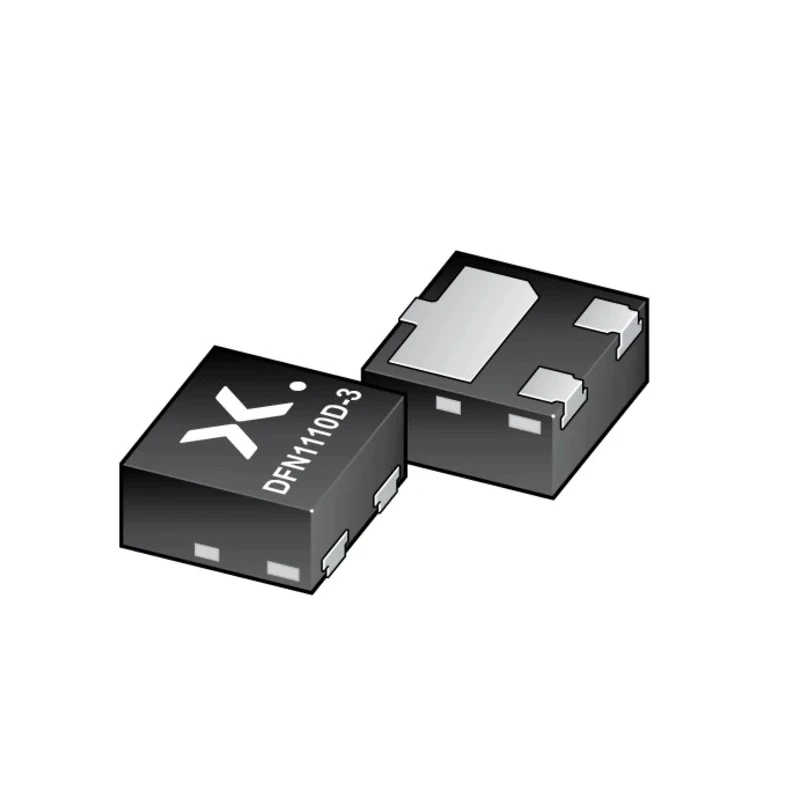

Nexperia BAT54QB-QZ is a Schottky Barrier Diode designed for use in compact electronic assemblies requiring efficient rectification and fast switching performance. Packaged in an ultra-small DFN1110D-3 surface-mounted device (SMD), this diode supports a maximum continuous forward current of 200 mA and a peak reverse voltage of 30 V, making it suitable for low voltage power management circuits.
The device features a low forward voltage drop of approximately 380 mV, which minimizes power loss and heat generation during operation. Its low capacitance further enables usage in high-frequency circuits, such as switching regulators, RF systems, and signal detection applications.
The diode operates reliably over a wide temperature range from -55°C up to 150°C, suitable for both commercial and automotive environments. Its leadless plastic package with side-wettable flanks facilitates automated soldering and inspection processes, increasing manufacturing yield and product reliability.
Compliant with RoHS directives and automotive standard AEC-Q101, the BAT54QB-QZ diode is recommended for automotive electronics and other demanding industrial applications requiring high-quality discrete semiconductor components.
Its compact size and robust specifications make it an excellent choice for noise suppression, voltage clamping, and polarity protection in power supply units, battery management systems, and related applications.
Encapsulated in ultra-small DFN1110D-3 package ensuring compact PCBs. Low forward voltage and capacitance suitable for high-speed switching. Wide operating temperature range from -55°C to 150°C. Leadless package with side-wettable flanks for reliable solder joints.
Automotive grade qualification with AEC-Q101 compliance. RoHS compliant offering environmental safety. Supports automatic optical inspection for production quality. Recommended for automotive, industrial, and power management applications.
