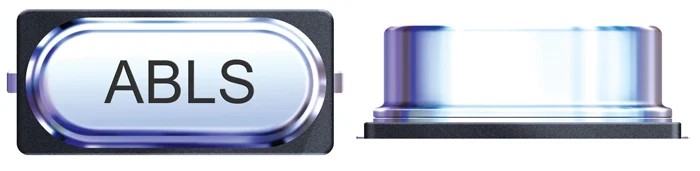

Abracon 12 MHz Crystal Unit ±30 ppm Frequency Tolerance Through Hole Mount HC-49-US 2-Pin ABLS-12.000MHZ-L4Q-T

Free Delivery in India | Lowest Global Shipping Charges

Abracon 12 MHz Crystal Unit ±30 ppm Frequency Tolerance Through Hole Mount HC-49-US 2-Pin ABLS-12.000MHZ-L4Q-T

Name: Abracon 12 MHz Crystal Unit ±30 ppm Frequency Tolerance Through Hole Mount HC-49-US 2-Pin ABLS-12.000MHZ-L4Q-T
Brand: Abracon
SKU: 177028
Price: 0.47 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	4.2mm
Length	11.5mm
Model	ABLS-12.000MHZ-L4Q-T
Packaging	Tape & Reel
Width	4.7mm
Mount Type	Through Hole
Series	ABLS
Maximum Operating Temperature	70°C
Package Type	HC-49-US
Minimum Operating Temperature	0°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	12MHz
Load Capacitance	16pF
Series Resistance	50Ω

Key Features

Standard frequency of 12 MHz suitable for precise timing applications.
Package is HC-49-US with tape and reel packaging for efficient assembly.
2-pin configuration designed for through-hole mount circuits.
Load capacitance set at 16 pF for optimized performance.
Operating temperature range from 0°C to 70°C ensuring reliability.
Series resistance of 50 Ω providing low power loss.
RoHS compliant ensuring environmental safety.

Product Description

The Abracon ABLS-12.000MHZ-L4Q-T 12 MHz Crystal Unit is manufactured with a HC-49-US package featuring a compact form factor of 11.5 mm length, 4.7 mm width, and 4.2 mm height. It is designed for through-hole mounting with 2 pins providing stable electrical connections.

This crystal oscillator offers a frequency tolerance of ±30 ppm with frequency stability of ±50 ppm, making it ideal for use in computers, modems, microprocessors, and wireless communication systems requiring precise frequency control.

It offers a standard load capacitance of 16 pF, ensuring effective load matching for oscillator circuits. The unit operates reliably within a temperature range of 0°C to 70°C, making it suitable for typical electronic environments.

The series resistance rating of 50 Ω ensures minimal signal loss during operation. The crystal unit is RoHS compliant and lead-free, aligning with environmental and manufacturing regulations. Its tape and reel packaging format facilitates automated assembly, enhancing production efficiency in industrial manufacturing.

Applications of this crystal unit span across diverse industrial, research, and commercial electronics products where frequency accuracy and reliability are paramount, including timing circuits, frequency generators, and communication devices.

Standard frequency of 12 MHz suitable for precise timing applications. Frequency tolerance of ±30 ppm for accurate frequency stability. Package is HC-49-US with tape and reel packaging for efficient assembly. 2-pin configuration designed for through-hole mount circuits.

Load capacitance set at 16 pF for optimized performance. Operating temperature range from 0°C to 70°C ensuring reliability. Series resistance of 50 Ω providing low power loss. RoHS compliant ensuring environmental safety.
