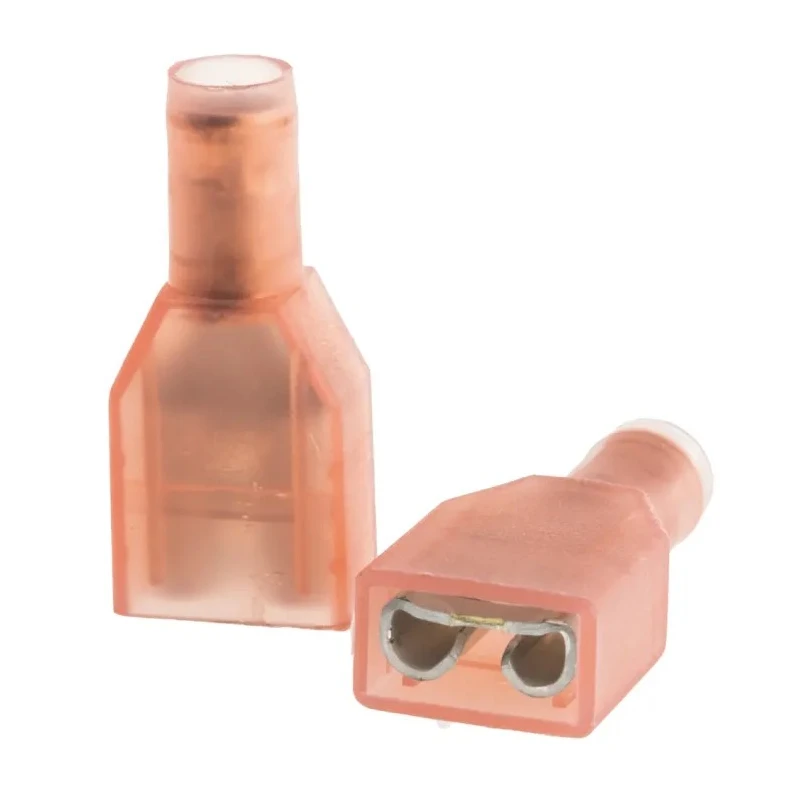

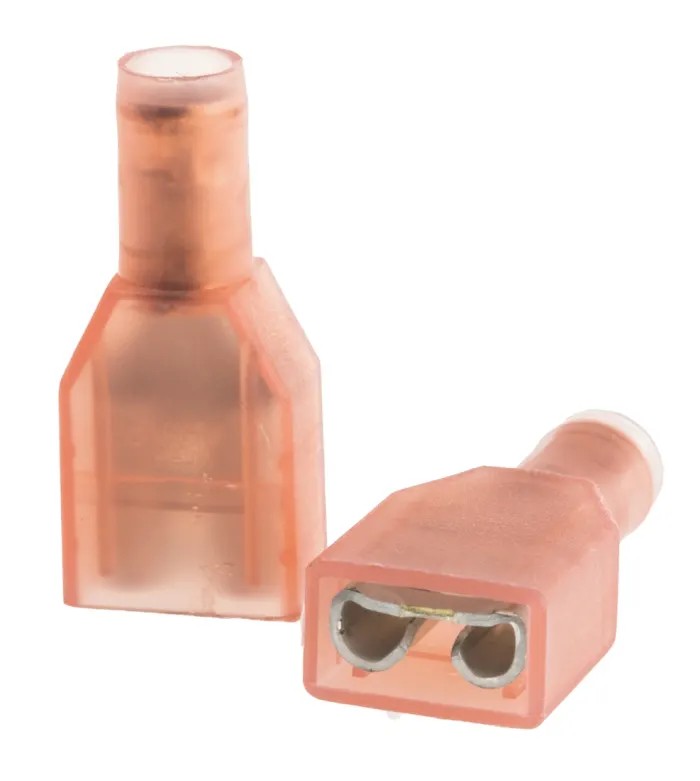

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 735279

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 735279

Name: TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector Crimp 6.35 x 0.81 mm Tab Size 735279
Brand: TE Connectivity
SKU: 210012
Price: 1.39 USD
Availability: InStock



Category Spade Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red
Orientation	Straight
Model	735279
Gender	Female
Insulation	Insulated
Overall Length	21.5mm
Contact Material	Brass
Series	PIDG FASTON .250
Termination Type	Crimp
Insulation Material	Nylon
Contact Plating	Tin
Minimum Wire Size mm²	0.3mm²
Maximum Wire Size mm²	0.75mm²
Minimum Wire Size AWG	22AWG
Maximum Wire Size AWG	18AWG
Tab Width	6.35mm
Tab Thickness	0.81mm
Tab Size	6.35 x 0.81 mm

Key Features

Fully insulated design offers protection against electric shock.
Copper sleeve enhances wire insulation support and durability after crimping.
Serrated crimp barrel provides maximum contact and tensile strength.
Funnelled wire entry allows quick and easy wire insertion.
Nylon insulation ensures resistance to greases and oils for extended service life.
Colour coded red for quick and accurate wire size identification.
Constructed from precision formed tin-plated brass to ensure strong conductivity.
Overall length of 21.5 mm suits various industrial and electrical applications.

Product Description

TE Connectivity 735279 PIDG FASTON .250 Red Insulated Female Spade Connector is a fully insulated crimp receptacle designed to provide reliable and uniform electrical terminations in demanding circuit environments. Featuring a precision formed high conductivity brass body with tin plating and a copper sleeve inside a nylon insulation, this connector is engineered for robust performance and electrical safety.

The crimp barrel incorporates serrations ensuring maximum contact and tensile strength post-crimping, while the fully insulated wire and terminal area protect against accidental electrical shock. The funnelled wire entry eases the wire insertion process and speeds installation in industrial, electrical, and automotive applications.

Colour coding with red nylon insulation aids accurate wire size identification and compatibility with wire gauges 22 AWG to 18 AWG (0.3 mm² to 0.75 mm²). Its straight orientation and 21.5 mm length make it suitable for a wide range of applications including power supplies, lighting, HVAC systems, instrumentation, appliances, and automotive electrical wiring.

These connectors, part of the PIDG FASTON .250 series, deliver fast and secure wire connection and disconnection with durable electrical and mechanical properties. Fully insulated for electrical protection. Copper sleeve for improved wire insulation support after crimping.

Serrations in crimp barrel for maximum contact and tensile strength. Funnelled wire entry for easy and fast wire insertion. Nylon insulation for resistance to greases and oils. Colour coded according to wire size to aid accurate installation.

Precision formed tin-plated brass contact material for superior conductivity. Straight orientation suitable for various circuit connections.

This TE Connectivity PIDG FASTON .250 Red Insulated Female Spade Connector is ideal for electrical, industrial, instrumentation, HVAC, lighting, appliance, power supply, and automotive applications, offering dependable performance and ease of use.
