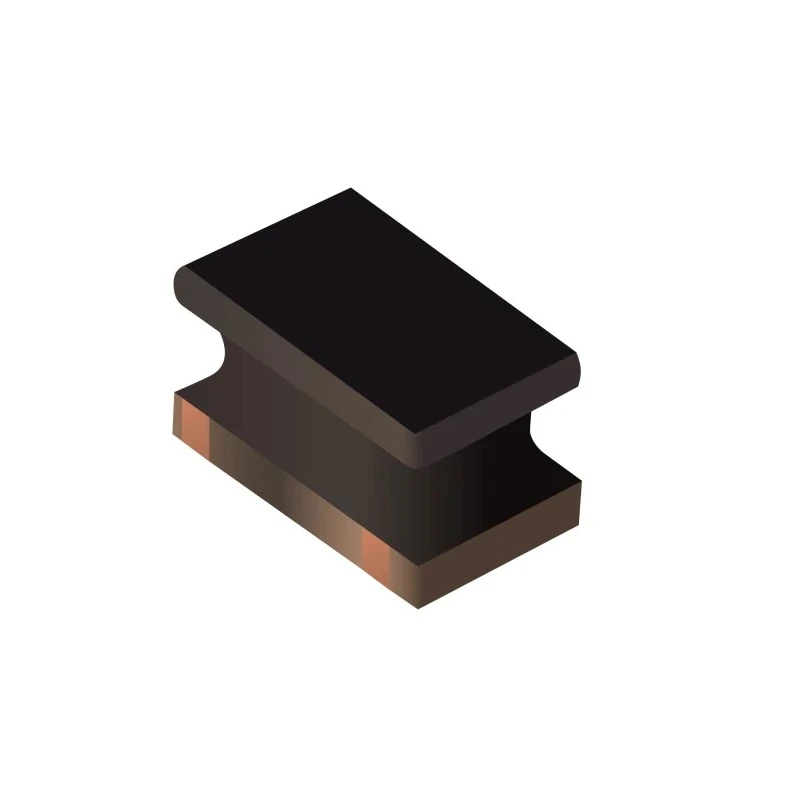

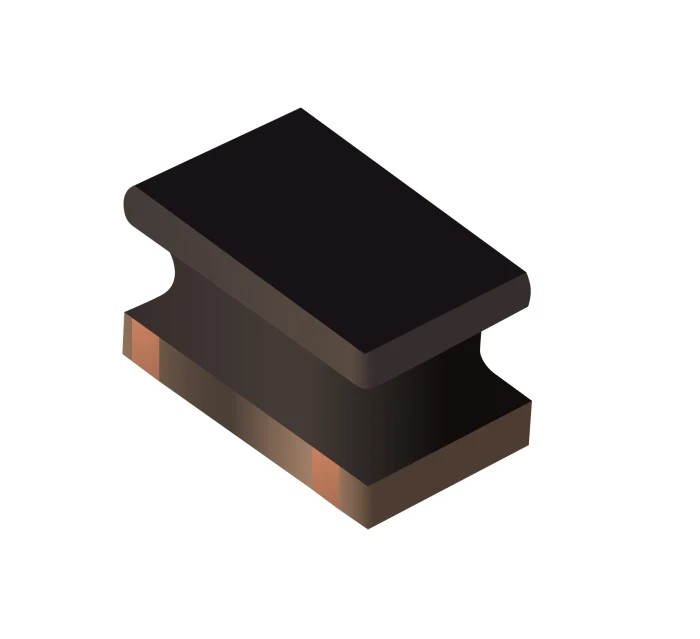

Bourns 2012 Shielded Power Inductor SRN2012T 6.8 μH Semi Shielded ±30% 0.7 A IDC Ferrite Core China
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 1.2mm |
| Brand | Bourns |
| Height | 1.2mm |
| Length | 2mm |
| Model | SRN2012T |
| Depth | 1.2mm |
| Packaging | Reel |
| Series | SRN2012T |
| Maximum Operating Temperature | 125°C |
| Sub Type | Semi Shielded Power Inductor |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS, Halogen Free, AEC-Q200 |
| Package/Case | 2012 |
| Maximum DC Current | 0.7A |
| Maximum DC Resistance | 1.76Ω |
| Inductance Tolerance | ±30 % |
| Maximum Self Resonant Frequency | 208MHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Semi Shielded |
| Automotive Standard | AEC-Q |
Key Features
- Compact 2012 package with 2 mm length and 1.2 mm height and depth dimensions.
- Maximum DC current rating of 0.7 A with a DC resistance of 1.76 Ω.
- Inductance tolerance of ±30% suitable for various power applications.
- High self-resonant frequency of 208 MHz delivering efficient performance.
- Complies with RoHS, Halogen Free, and AEC-Q200 automotive standards.
- Operating temperature range from -40°C to 125°C for durability.
- Ferrite core ensures efficient magnetic properties for power inductance.
- Delivered on reels for easy automated PCB assembly integration.
Product Description
Bourns SRN2012T 2012 shielded power inductor features 6.8 μH inductance with a semi shielded ferrite core, designed for reliable power circuit applications. Its miniature 2012 surface mount package measures 2 mm length by 1.2 mm height and depth, ensuring compact PCB footprint.
Rated for a maximum DC current of 0.7 A, it offers a low DC resistance of 1.76 Ω and an inductance tolerance of ±30% for stable operation. The device exhibits a high self-resonant frequency of 208 MHz and a minimum quality factor of 14, enabling efficient energy storage and filtering.
Manufactured with RoHS compliance, halogen-free materials, and meeting AEC-Q200 automotive standards, it is robust under harsh environmental conditions ranging from -40°C to +125°C.
The ferrite core construction provides excellent magnetic properties favorable for power inductors in industrial, automotive, and power management applications. Compact 2012 package suitable for modern electronics. High current capacity of 0.7 A and low resistance of 1.76 Ω.
Wide operating temperature range and automotive standard compliance. Packaging on reels promotes efficient assembly processes. Halogen free and RoHS compliant for environmental safety.
This Bourns power inductor SRN2012T series is an ideal choice for engineers requiring high-quality, reliable inductors for power supply and filtering in industrial electronics and automotive designs.
Explore the Electronics Components category on EnvMart for more Surface Mount Inductors and related power management devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 6.8 μH.
It has a maximum DC current rating of 0.7 A.
This unit has dimensions of 2 mm in length, and 1.2 mm in both height and depth.
The operating temperature range is from -40°C to 125°C.
The maximum self-resonant frequency is 208 MHz.
It uses a ferrite core, which provides efficient magnetic properties for power inductance.
The DC resistance is 1.76 Ω.
It complies with RoHS, is halogen-free, and meets AEC-Q200 automotive standards.
It is delivered on reels for easy automated PCB assembly integration.
The inductance tolerance is ±30%.
This inductor is suitable for various power applications, including industrial and automotive power management.
The minimum quality factor is 14, which contributes to its efficient energy storage and filtering capabilities.
