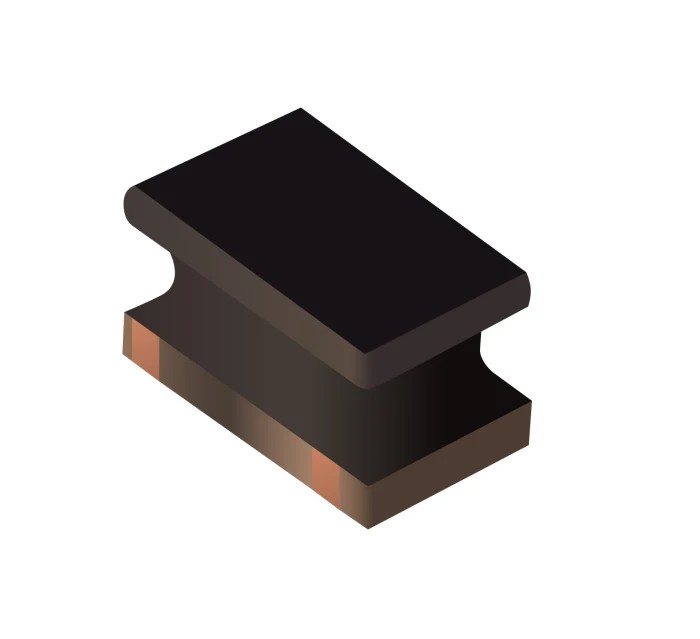

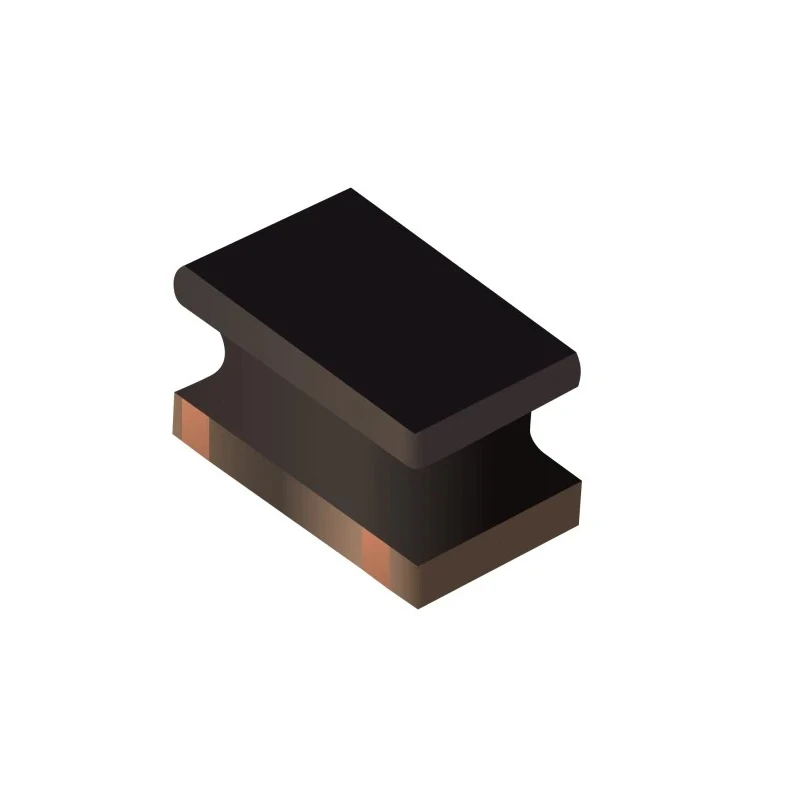

Bourns 2012 Shielded Power Inductor with Ferrite Core 6.8 μH Semi Shielded ±30 % 0.7 A Idc Q:14 SRN2012T
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 1.2mm |
| Brand | Bourns |
| Height | 1.2mm |
| Length | 2mm |
| Model | SRN2012T |
| Depth | 1.2mm |
| Packaging | Reel |
| Series | SRN2012T |
| Maximum Operating Temperature | 125°C |
| Sub Type | Semi Shielded Power Inductor |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS, Halogen Free, AEC-Q200 |
| Package/Case | 2012 |
| Maximum DC Current | 0.7A |
| Maximum DC Resistance | 1.76Ω |
| Inductance Tolerance | ±30 % |
| Maximum Self Resonant Frequency | 208MHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Semi Shielded |
| Automotive Standard | AEC-Q |
Key Features
- Compact 2012 package size suitable for surface mount applications.
- Semi shielded construction with ferrite core ensuring high efficiency.
- Operating temperature range from -40°C to 125°C for wide environmental durability.
- Low DC resistance of 1.76 Ω for improved power efficiency.
- High self-resonant frequency of 208 MHz for reliable high-frequency operation.
- Halogen free and RoHS compliant for environmental safety.
- Automotive standard AEC-Q200 certified for robust performance in automotive applications.
- Quality factor (Q) of 14 ensuring minimal power loss.
Product Description
Bourns SRN2012T shielded power inductor with ferrite core offers a nominal inductance of 6.8 μH in a compact 2012 package, designed for surface mount soldering in industrial and automotive electronics.
This semi shielded inductor supports a maximum DC current of 0.7 A and operates reliably within a temperature range from -40°C up to 125°C, making it ideal for harsh environments.
Its ferrite core construction and semi shielded design provide high inductance stability, low DC resistance of 1.76 Ω, and a minimum quality factor of 14, supporting efficient power management in switching power supplies and DC/DC converters.
The component features a maximum self-resonant frequency of 208 MHz, offering excellent performance in high-frequency applications including power supply filtering and energy storage.
Compliant with RoHS and halogen-free standards, the SRN2012T series meets environmental and safety regulations. It also meets the automotive quality standard AEC-Q200, ensuring suitability for automotive electronic systems.
Compact 2012 package with 2 mm length, 1.2 mm height, depth, and diameter. High Q value with stable inductance and power efficiency. Suitable for industrial, automotive, telecommunications, and power supply applications.
RoHS compliant and halogen free materials reduce environmental impact. Automotive AEC-Q200 qualification ensures durability and performance.
This power inductor is an ideal component for engineers designing reliable, efficient power delivery and filtering circuits in various industrial and commercial electronic products.
Explore more quality Inductors and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal inductance of this model is 6.8 μH.
It supports a maximum DC current of 0.7 A.
This unit operates reliably within a temperature range from -40°C to 125°C.
The maximum self-resonant frequency is 208 MHz, making it suitable for high-frequency applications.
The dimensions are 2 mm in length, 1.2 mm in height, and 1.2 mm in depth.
It features a semi shielded construction with a ferrite core.
The minimum quality factor (Q) is 14, which helps in reducing power loss.
Yes, it is RoHS compliant and halogen-free, ensuring adherence to environmental safety regulations.
It is certified to meet the automotive standard AEC-Q200, ensuring its suitability for automotive applications.
The DC resistance is 1.76 Ω, which contributes to improved power efficiency.
The Bourns SRN2012T is packaged in a reel for surface mount applications.
This inductor is suitable for industrial, automotive, telecommunications, and power supply applications.
