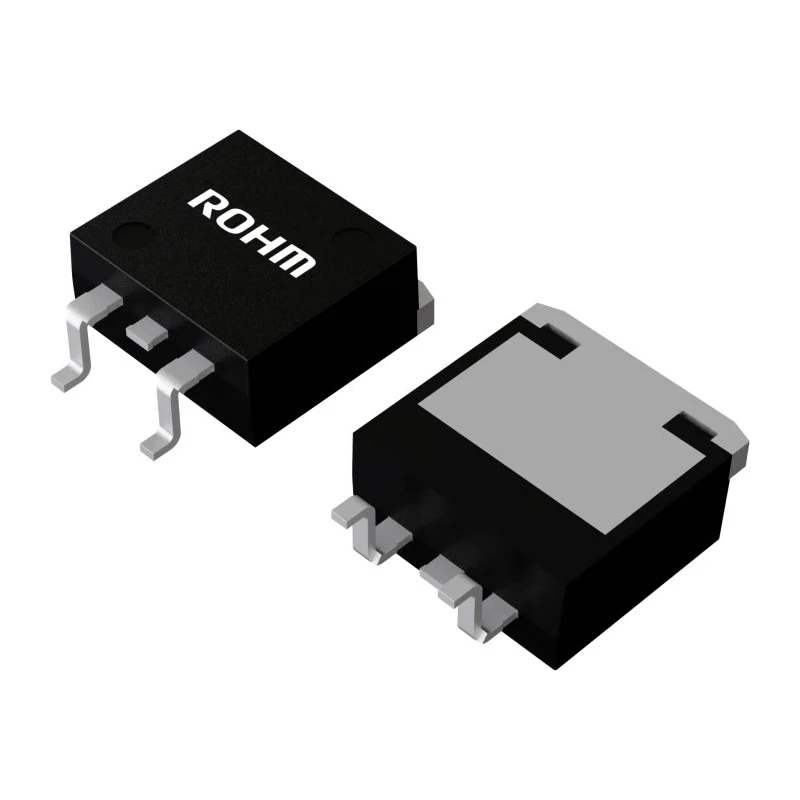

ROHM Single Diode 20 A 350 V 3-Pin TO-263 Surface Mount Fast Recovery RFUH25NS3STL

Free Delivery in India | Lowest Global Shipping Charges

ROHM Single Diode 20 A 350 V 3-Pin TO-263 Surface Mount Fast Recovery RFUH25NS3STL

Name: ROHM Single Diode 20 A 350 V 3-Pin TO-263 Surface Mount Fast Recovery RFUH25NS3STL
Brand: ROHM
SKU: 175358
Price: 1.7 USD
Availability: InStock



Category Switching Diodes Brand ROHM Condition New

Specifications

Country of Origin	India
Brand	ROHM
Model	RFUH25NS3STL
Mount Type	Surface
Series	RFUH25NS3S
Maximum Operating Temperature	150°C
Package Type	TO-263
Minimum Operating Temperature	-55°C
Standards/Approvals	RoHS
Pin Count	3
Diode Configuration	Single
Peak Non-Repetitive Forward Surge Current Ifsm	100A
Peak Reverse Recovery Time trr	10ns
Maximum Forward Current If	20A
Maximum Peak Reverse Repetitive Voltage Vrrm	350V

Key Features

Designed for surface mount applications ensuring compact installation.
Fast recovery time of 10 ns supports high-speed switching.
Capable of handling a peak non-repetitive forward surge current of 100 A.
Operates reliably between -55°C and 150°C storage and operating temperatures.
Low forward voltage of 1.45 V for improved efficiency.
Suitable for switching power supplies and power management circuits.
RoHS compliant ensuring environmental safety standards.
Three-pin configuration in a robust TO-263 surface mount package.

Product Description

ROHM RFUH25NS3STL is a single diode designed for high-efficiency switching applications with a maximum forward current of 20 A and a peak reverse voltage of 350 V. Packaged in a TO-263 surface mount form factor with three pins, it offers a fast recovery time of 10 ns that reduces switching losses and improves power supply efficiency. It operates within a wide temperature range from -55°C to 150°C, making it suitable for demanding industrial and commercial electronics environments.

This diode features a low forward voltage of approximately 1.45 V, contributing to reduced energy dissipation during operation. Its peak non-repetitive forward surge current rating of 100 A allows it to handle transient high-current scenarios safely. The product is fully RoHS compliant, meeting current environmental and safety standards.

The surface mount TO-263 package ensures a compact footprint ideal for automated PCB assembly in consumer electronics, power supplies, industrial equipment, and automation systems. Its robust construction and electrical characteristics make it suitable for applications such as switching power supplies, motor control, power management circuits, and general-purpose rectification.

With reliable performance and a fast recovery feature, this ROHM diode contributes to enhanced efficiency and longevity of electronic products in industrial, commercial, and laboratory settings.

Designed for high-speed switching applications requiring fast recovery time. Operates reliably over a broad temperature range for diverse environments. Compact surface mount TO-263 package suitable for automated manufacturing.

Low forward voltage reduces power loss and improves overall efficiency. RoHS certification ensures compliance with environmental regulations. Capable of handling surge currents making it robust against transient conditions.

Widely applicable in switching power supplies and industrial electronics. Three-pin configuration supports straightforward PCB integration. Explore a wide range of Switching Diodes and semiconductor components at EnvMart to meet your electronic design and manufacturing needs.
