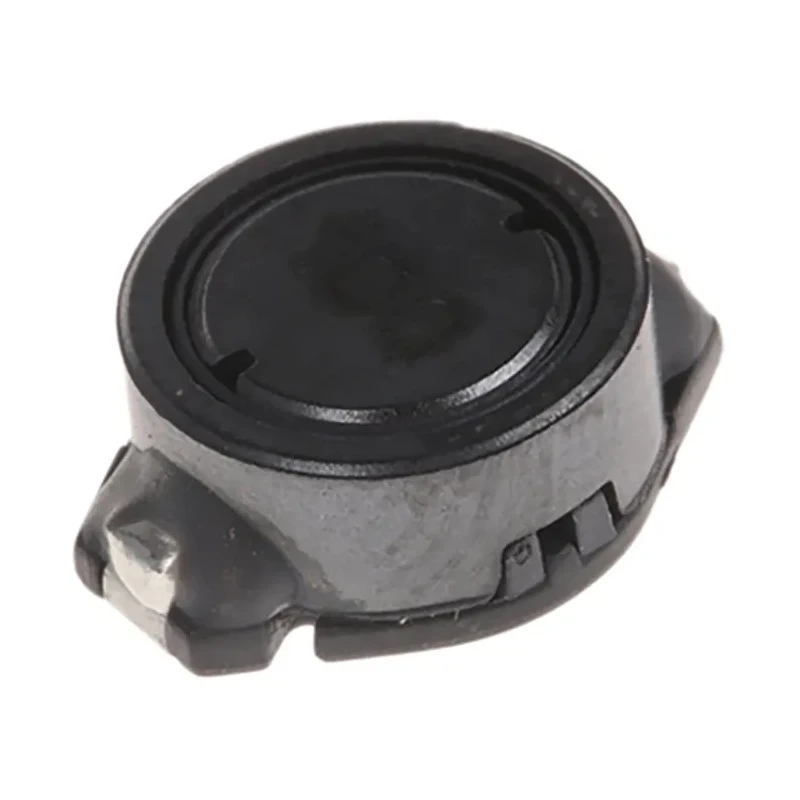

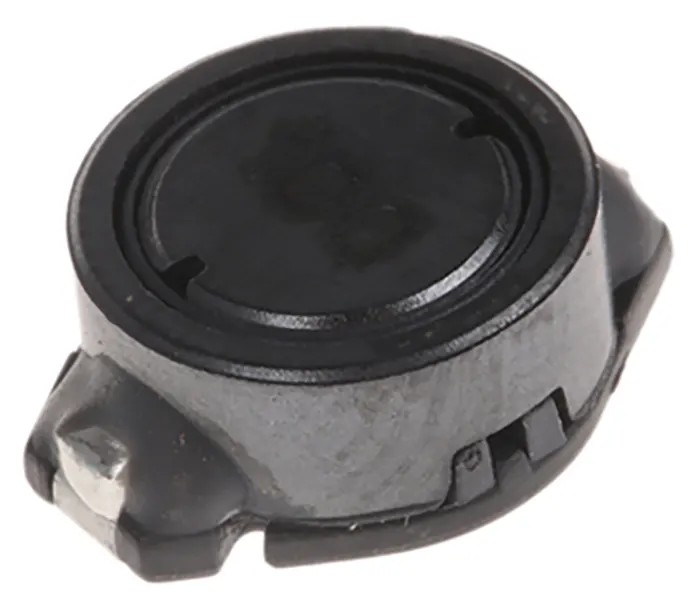

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor 10 μH ±20 % 2 A 30 MHz 74454010

Wurth Elektronik presents the WE-PD3 series shielded wirewound surface mount inductors, model 74454010, featuring a ferrite core and offering 10 μH inductance with ±20 % tolerance. These inductors provide a maximum DC current rating of 2 A and operate efficiently up to a self-resonant frequency of 30 MHz. The magnetically shielded design effectively minimizes electromagnetic interference, suitable for high-performance electronic applications.

Constructed for demanding industry standards, the WE-PD3 inductors meet the AEC-Q200 automotive qualification, making them ideal for use in automotive electronics and other critical applications. With an operating temperature range from -25°C to 85°C, these inductors are robust and reliable under diverse environmental conditions.

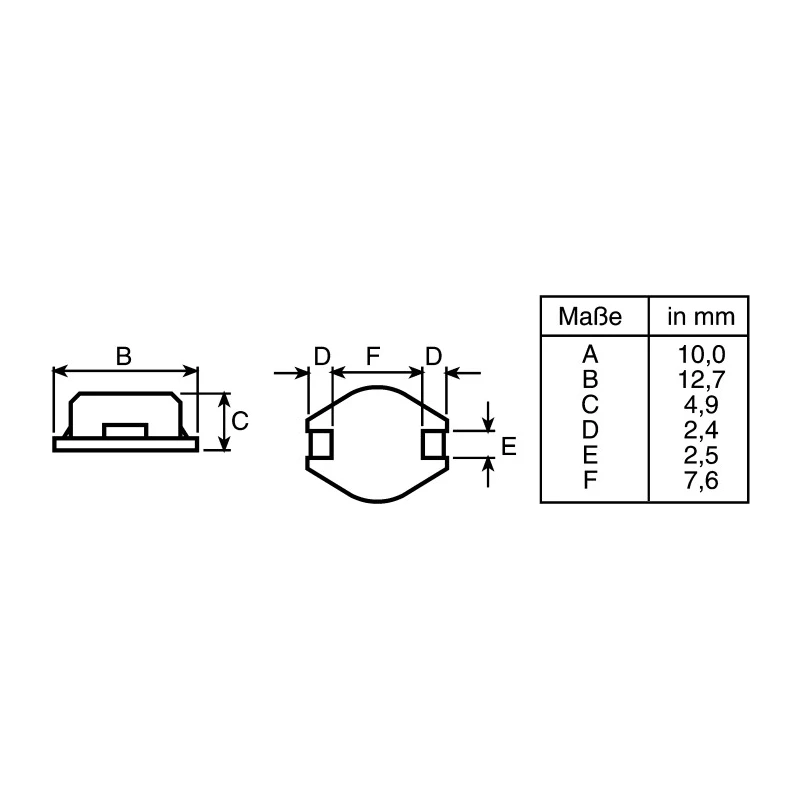

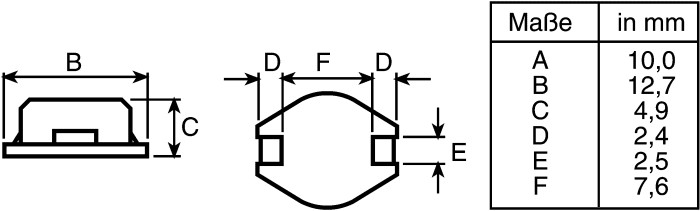

The surface mount termination style enables seamless integration into compact PCB layouts, promoting efficient automated assembly using tape and reel packaging. The inductor dimensions are optimized for space-saving with a length of 12.7 mm, height of 4.9 mm, depth of 10 mm, and diameter of 7.6 mm.

The high quality factor (Q) of 48 ensures that the inductors deliver low losses and high efficiency in filtering, suppression choke, and other electronic circuit functions primarily below 1 MHz. The wirewound construction type further enhances durability and consistency of inductance over time.

Designed with a ferrite core for enhanced magnetic properties. Magnetically shielded construction reduces electromagnetic interference. Complies with automotive standard AEC-Q200. Surface mount termination for efficient PCB assembly.

Operating temperature range from -25°C to 85°C supports varied environments. High quality factor (Q) of 48 for efficient energy storage. Tape & reel packaging facilitates automated manufacturing processes. Compact and low-profile dimensions suitable for dense PCB layouts.

This Wurth Elektronik WE-PD3 series inductor is widely applicable across electronics manufacturing, automotive systems, industrial control units, and telecommunications. Its shielding and thermal specs also make it suitable for power supply filtering and noise suppression in sensitive electronic devices.
