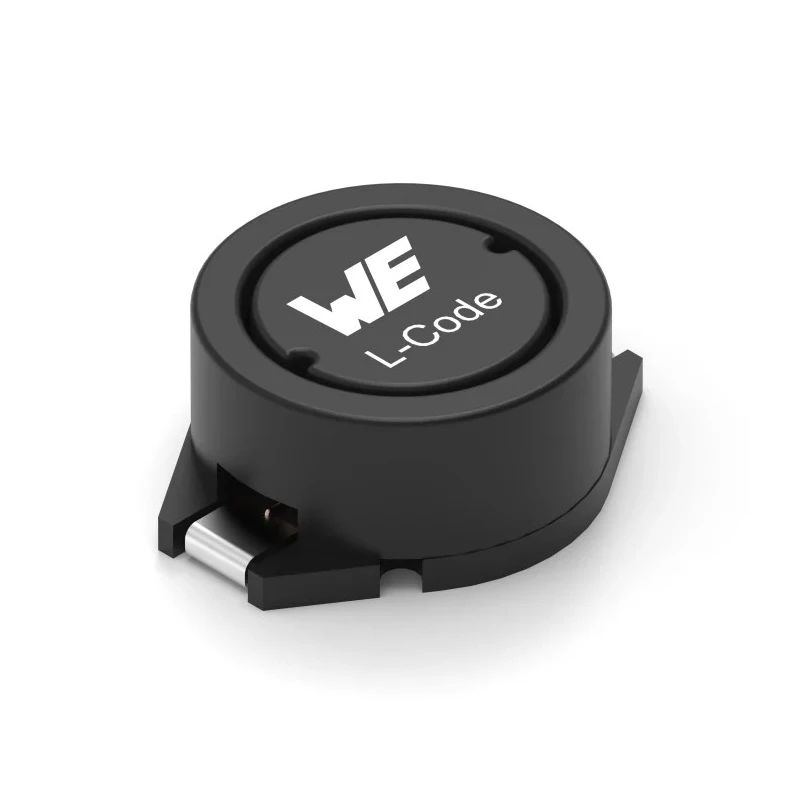

Wurth Elektronik WE-PD3 Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±15% 1A Idc Q:35 74454147

Wurth Elektronik model 74454147 is a WE-PD3 series shielded wirewound surface mount inductor with a ferrite core. It provides an inductance of 47 μH with a tolerance of ±15% and can handle a maximum DC current of 1 ampere. This product is designed for use in electronic circuits requiring reliable inductance with magnetic shielding to minimize electromagnetic interference.

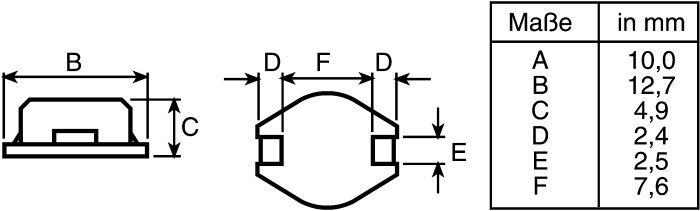

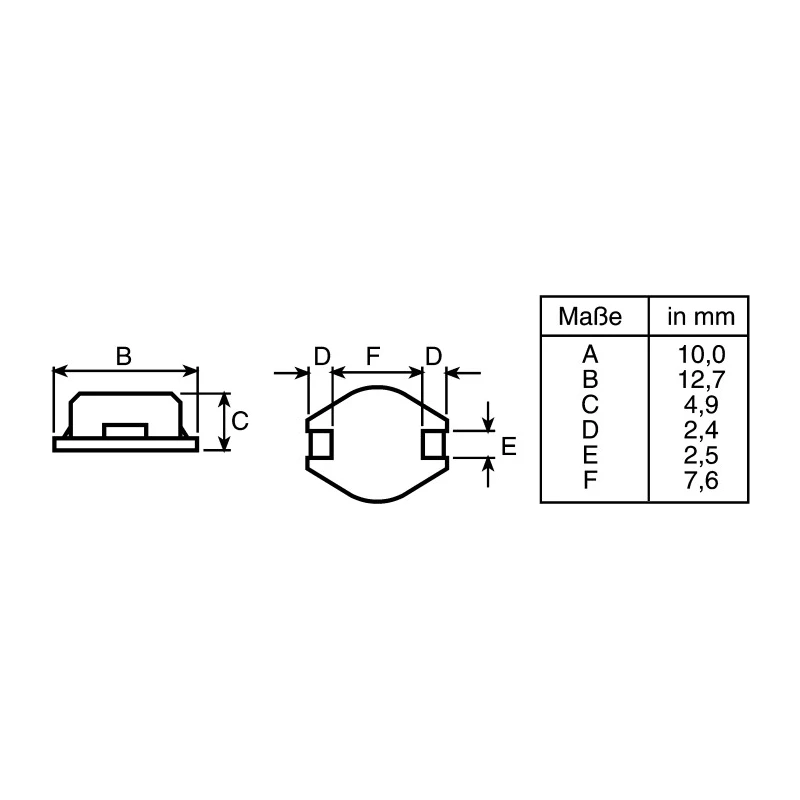

The inductor features a compact size with dimensions of 12.7mm length, 7.6mm diameter, 4.9mm height, and 10mm depth. It is moulded and constructed using wirewound technology ensuring high durability. The termination style is surface mount suitable for automated PCB assembly processes. It meets automotive industry standard AEC-Q200, confirming its suitability for high-reliability applications.

The component operates effectively in a temperature range from -25°C to +85°C and has a maximum DC resistance of 190 milliohms, providing efficient electrical performance. The maximum self resonant frequency is 12 MHz, allowing operation at high frequencies up to 10 MHz with suppression chokes applicable up to 1 MHz. This makes it ideal for industrial, automotive, communications, and power electronics applications.

The minimum quality factor rating of 35 indicates good energy storage capability with low power loss. This shielded inductor is housed with a ferrite core which enhances magnetic shielding performance to reduce electromagnetic interference in sensitive circuitry.

Packaging is supplied as Tape & Reel suitable for pick-and-place manufacturing processes, improving production efficiency in volume assembly. This inductor offers stable inductance for filtering and chokes in electronic circuits.

It is magnetically shielded to minimize electromagnetic interference in complex systems. Designed for surface mount technology enabling compact PCB footprints and automated assembly. Adheres to automotive standard AEC-Q200 for robust reliability in automotive electronics.

Suitable for industrial, telecommunications, automotive, and power supply applications. Ferrite core construction ensures effective suppression and stable magnetic properties. Compact dimensions allow integration into space-constrained circuit boards.

Operates reliably across a wide temperature range of -25°C to +85°C. Explore more Wurth Elektronik Surface Mount Inductors and other electronic components within EnvMart categories for high quality and reliable industrial electronics solutions.
