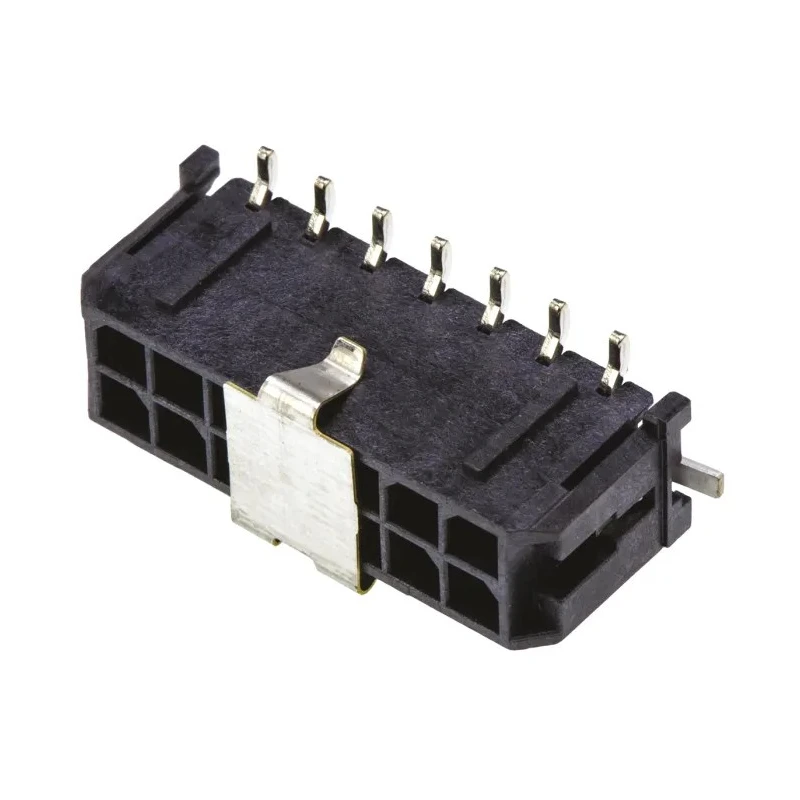

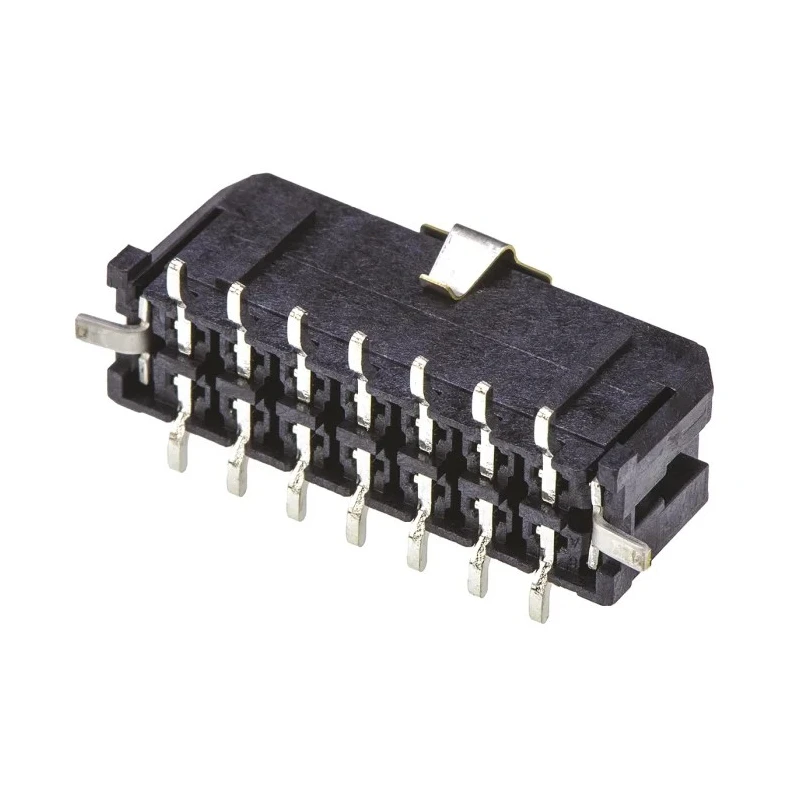

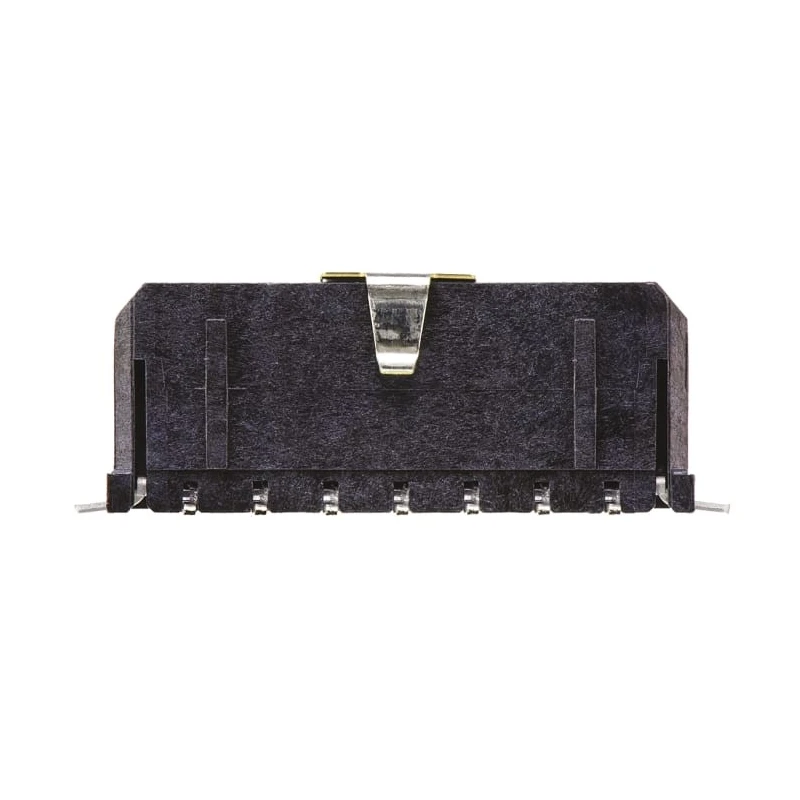

Molex Micro-Fit 3.0 Series Straight Surface PCB Header, 14 Contact(s), 3 mm Pitch, 2 Row, Shrouded 43045-1418
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | Molex |
| Orientation | Straight |
| Current | 5A |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Micro-Fit 3.0 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 3mm |
| Contact Plating | Tin |
| Number of Contacts | 14 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Mating Pin Length | 3mm |
Key Features
- This PCB header supports a current of up to 5A.
- Constructed with thermoplastic housing material ensuring durability and heat resistance.
- Features positive latching with a locking ramp for secure mating and disconnection prevention.
- Contacts are brass with tin plating for improved electrical performance and corrosion resistance.
- Designed for surface mounting with solder tabs to firmly attach to PCB boards.
- Operates reliably within temperature ranges from -40°C to 105°C.
- Suitable for a variety of applications including consumer electronics, telecommunications, and data communication equipment.
- Mating pin length is 3 mm, with dual row orientation ensuring compact installation.
Product Description
Molex 43045-1418 Micro-Fit 3.0 Series Straight Surface PCB Header is a high-performance dual row connector designed for wire-to-board applications requiring compact power distribution. It features 14 male contacts arranged with a 3 mm pitch, supporting currents up to 5A, making it ideal for a variety of industrial, commercial, and consumer electronic devices.
The connector housing is made from UL 94V-0 rated thermoplastic material, capable of withstanding high temperatures up to 265°C during IR reflow soldering. Positive latching is ensured by a locking ramp design that secures mating connectors preventing accidental disconnections, thereby enhancing system reliability.
Brass contacts coated with tin plating provide excellent electrical conductivity and corrosion resistance. The surface mount design includes solder tabs that reinforce the mechanical attachment to the PCB, ensuring robust mounting in demanding environments. Operating temperature ranges from -40°C to 105°C, enabling use in varying ambient conditions.
These Micro-Fit 3.0 PCB Headers are suitable for applications across a spectrum of industries, including military COTS, solar power systems, household appliances, data communication devices such as routers and servers, medical equipment, telecommunications, and gaming terminals. Their compact size combined with high current capacity addresses mid-range power needs efficiently.
This PCB header supports a current of up to 5A. Thermoplastic housing assures durability and heat resistance. Includes positive latching for secure connections. Brass contacts with tin plating enhance electrical reliability.
Surface mount with solder tabs ensures stable PCB mounting. Wide operating temperature range from -40°C to 105°C. Designed for 14 contacts with 3 mm pitch in 2 rows. Rated for voltages up to 250V in wire-to-board connections.
Ideal for industrial, commercial, and consumer electronic uses. Explore the Molex Micro-Fit 3.0 Series connectors on EnvMart for premium reliability and compact design solutions in electronic components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a maximum current of 5A.
It features a 3 mm pitch and has 14 male contacts arranged in 2 rows.
The operating temperature range is from -40°C to 105°C.
The housing is made from UL 94V-0 rated thermoplastic material, ensuring durability and heat resistance.
This model is designed for surface mounting and includes solder tabs for firm attachment to PCB boards.
It uses solder termination for secure connections.
The voltage rating for this PCB header is up to 250V.
The mating pin length is 3 mm.
The contacts are made of brass and are coated with tin plating for improved electrical performance and corrosion resistance.
It is suitable for various applications including consumer electronics, telecommunications, and data communication equipment.
Yes, it includes a positive latching mechanism with a locking ramp to secure mating connectors and prevent accidental disconnections.
The country of origin for this PCB header is India.
