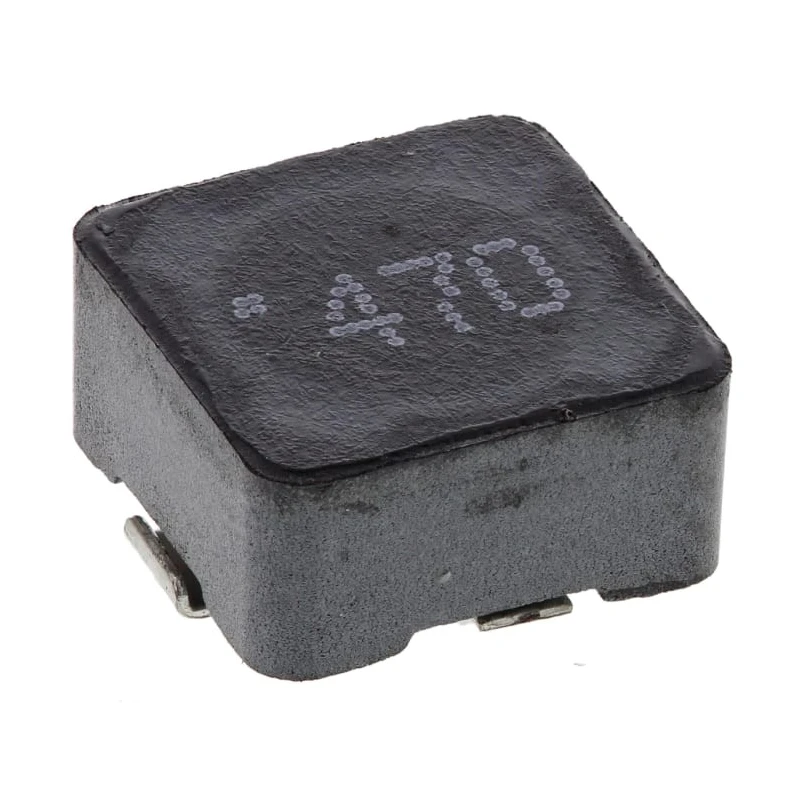

Wurth Elektronik WE-PD Shielded Wirewound Surface Mount Inductor with Ferrite Core 47μH ±20%, 1.03A Idc 744777147
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 7.3mm |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 47μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 1.03A |
| Maximum DC Resistance | 260mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 10.3MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- This inductor features a ferrite core construction for high magnetic performance.
- Magnetically shielded design reduces leakage fields effectively.
- Compact dimensions of 7.3mm length, 4.5mm height, and 7.3mm depth suit dense PCB layouts.
- Maximum DC resistance is low at 260mΩ ensuring efficient operation.
- Operating temperature range extends from -40°C to 125°C for versatile use.
- Automotive standard compliance AEC-Q200 ensures reliability in harsh environments.
- Packaged in tape and reel for automated assembly processes.
- Maximum self-resonant frequency is 10.3 MHz supporting high-frequency switching applications.
Product Description
Wurth Elektronik 744777147 WE-PD series shielded wirewound Surface Mount Inductor is designed for robust power regulation applications requiring reliable inductors with low magnetic leakage. The ferrite core and wirewound construction provide stability and performance with an inductance of 47μH ±20% tolerance and a maximum DC current of 1.03 A.
Its magnetically shielded design reduces interference, making it ideal for switching regulators, integrated DC-DC converters, and high-efficiency graphic card power circuits. The component measures 7.3mm in length and depth with a height of 4.5mm, suitable for compact PCB layouts.
The inductor operates across a wide temperature range from -40°C up to 125°C, meeting the automotive AEC-Q200 standard for enhanced durability and vibration resistance. The maximum DC resistance of 260mΩ ensures minimal power losses and efficient current flow.
Packaged in tape and reel format, it supports automated insertion for improved production efficiency. The 10.3 MHz self-resonant frequency makes it adaptable for high-frequency switching applications. This product is RoHS compliant and originates from China.
This inductor has a ferrite core for optimized magnetic performance. The magnetically shielded wirewound construction minimizes electromagnetic interference. Compact size and tape and reel packaging enable easy integration into automated manufacturing.
Suitable for automotive and industrial electronic applications requiring AEC-Q200 compliance. Reliable operation over a wide temperature range from -40 to 125 degrees Celsius. Designed for power electronics such as switching regulators and DC-DC converters.
Offers low DC resistance of 260 milliohms for efficient power handling. Supports frequencies up to 10.3 MHz due to high self-resonant frequency. Explore the Electronics Components category at EnvMart for quality inductors by Wurth Elektronik for your industrial and electronic design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 47μH with a tolerance of ±20%.
It can handle a maximum DC current of 1.03A.
The dimensions are 7.3mm in length, 7.3mm in depth, and 4.5mm in height.
The maximum DC resistance is 260mΩ, ensuring efficient operation.
It operates within a temperature range of -40°C to 125°C.
This inductor features a ferrite core material, which optimizes magnetic performance.
Yes, it complies with the automotive standard AEC-Q200, ensuring reliability in harsh environments.
It is packaged in tape and reel format, which supports automated assembly processes.
The maximum self-resonant frequency is 10.3 MHz, making it suitable for high-frequency applications.
It features a wirewound construction, which provides stability and performance.
It is suitable for power electronics applications such as switching regulators and DC-DC converters.
This inductor is RoHS compliant, ensuring it meets environmental regulations.
