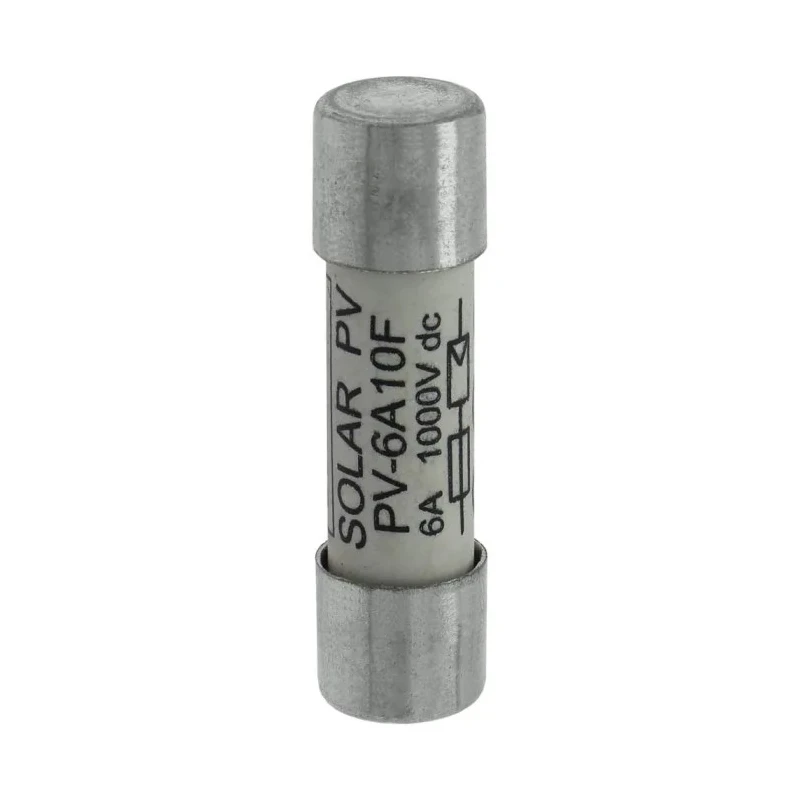

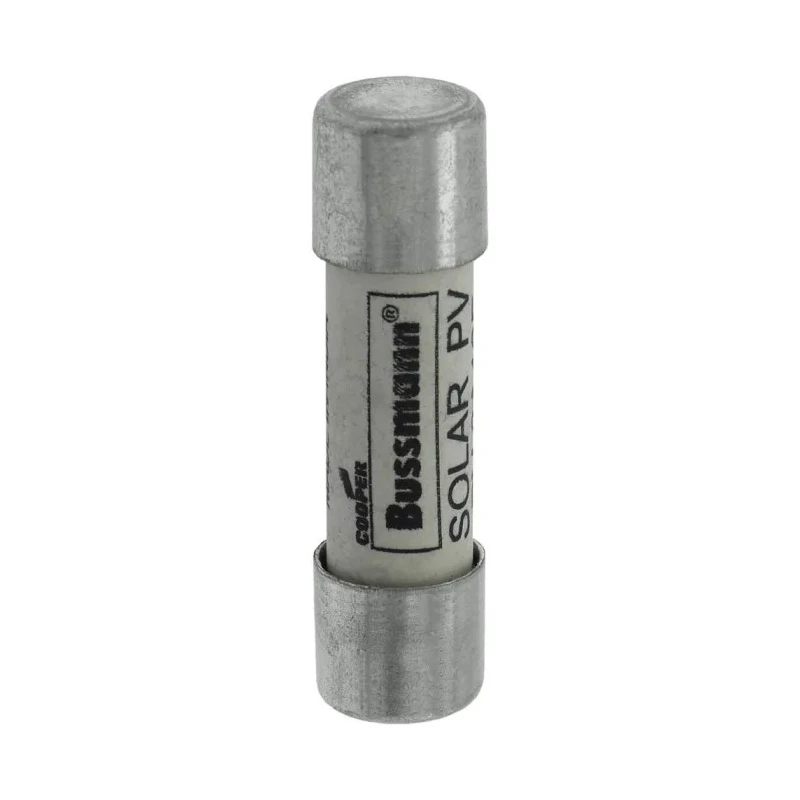

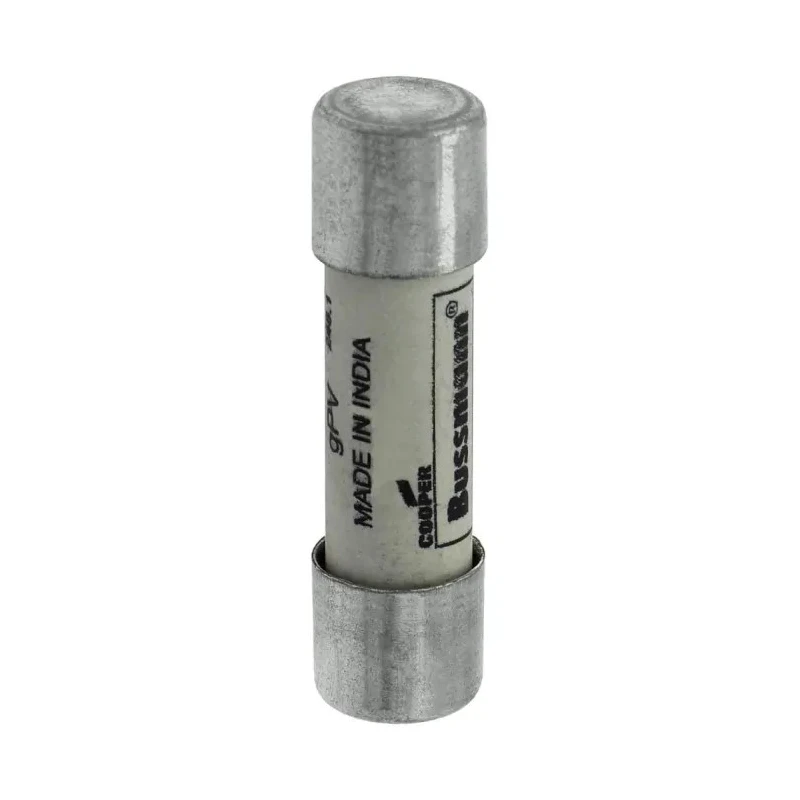

Eaton Ceramic Cartridge Fuse 6A Current, 1kV DC, 10 x 38 mm PV-6A10F

Eaton PV-6A10F ceramic cartridge fuse is designed for photovoltaic applications with a current rating of 6A and a voltage rating of 1kV DC. The fuse utilizes a ceramic body providing high thermal stability and reliable interruption of fault currents in solar string-level circuits.

This fuse's 10 x 38 mm dimensions and 10 mm diameter allow easy installation in standard Cartridge Fuse clips and compact fuse holders commonly used in high-voltage DC protection hardware. The robust ceramic construction ensures excellent dielectric separation and resistance to elevated temperatures during fault clearing, making it suitable for rooftop solar installations and combiner box integration.

It is engineered for controlled interruption of low-level photovoltaic faults, limiting energy let-through to protect downstream components. The fuse complies with CSA, CCC, IEC, and UL standards, assuring high quality and safety in renewable energy environments.

Typical applications include string-level protection in solar arrays, safeguarding inverters, replacing blown fuses in DC circuits, and usage in DC isolation stages. This product is made in India and stems from the Bussmann series, formerly associated with Eaton.

This fuse provides controlled interruption of photovoltaic fault currents. Ceramic body construction offers superior thermal and electrical stability. Compact 10 mm diameter fits standard fuse holders efficiently. Rated for up to 1 kV DC system voltages for high-voltage solar strings.

Standard 10 x 38 mm form factor enables straightforward replacement. Suitable for string-level protection and combiner box applications. Compliance with international safety and performance standards. Reliable protection for inverters and DC isolation stages.

Designed for use in photovoltaic and related high-voltage DC circuits.
