Honeywell Technologies 1 Axis Surface Hall Effect Sensor Digital Output 4V-28V SOT-23 3-Pin SS361CT

Free Delivery in India | Lowest Global Shipping Charges

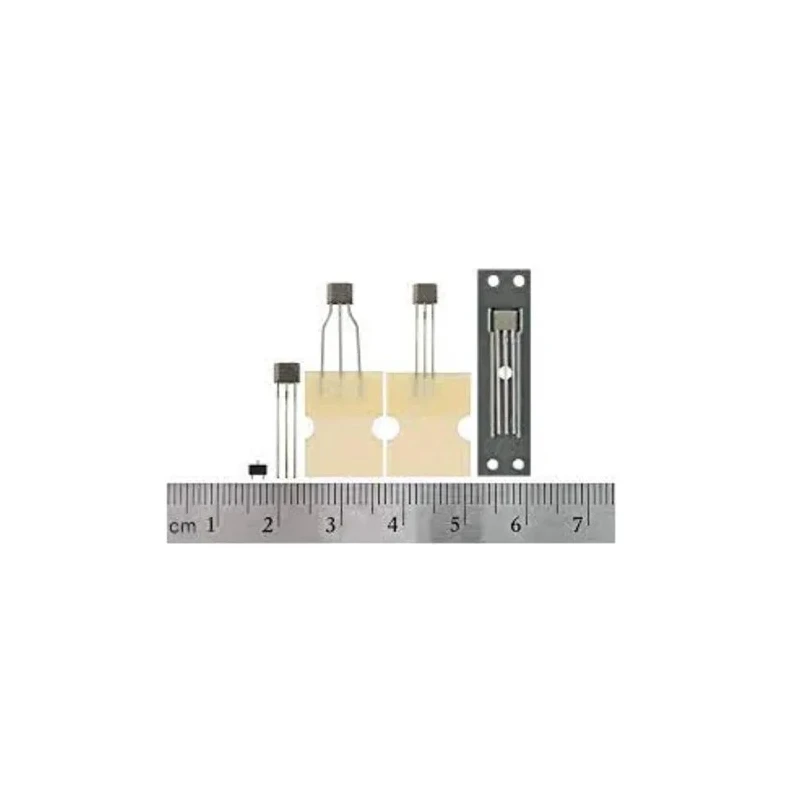

Honeywell Technologies 1 Axis Surface Hall Effect Sensor Digital Output 4V-28V SOT-23 3-Pin SS361CT

Name: Honeywell Technologies 1 Axis Surface Hall Effect Sensor Digital Output 4V-28V SOT-23 3-Pin SS361CT
Brand: Honeywell
SKU: 174484
Price: 1.18 USD
Availability: InStock



Category Hall Effect Sensor Brand Honeywell Condition New

Specifications

Country of Origin	China
Brand	Honeywell
Response time	1.5μs
Model	SS361CT
Technology	Digital
Sensor Type	Hall Effect Sensors
Mount Type	Surface
Series	SS361CT
Maximum Operating Temperature	125°C
Package Type	SOT-23
Minimum Operating Temperature	-40°C
Number of axis	1
Interface Type	Digital Output
Standards/Approvals	RoHS (Directive 2002/95/EC)
Pin Count	3
Maximum Supply Voltage	28V
Minimum Supply Voltage	4V
Supply Current	50mA
Magnetic Type	Bipolar

Key Features

Operates with a single magnetic axis and bipolar magnetic type.
Features a 3-pin surface mount design compatible with various PCB layouts.
Wide temperature range supports operation from -40°C to 125°C.
Low supply current consumption of 50mA enables energy efficient designs.
Fast response time of 1.5 microseconds for precise magnetic field detection.
Meets RoHS compliance for environmentally safe manufacturing.
Enhanced sensitivity with typical activation at 50 Gauss at 25°C.
Robust design tolerates maximum supply voltage of 28 V and operates reliably in harsh conditions.

Product Description

Honeywell SS361CT 1 Axis Surface Hall Effect Sensor is a high sensitivity, latching sensor IC designed to detect magnetic fields in a single axis. It operates from a low supply voltage of 4 V up to 28 V, delivering a digital output signal suitable for various control systems and electronic applications. Packaged in a compact SOT-23 3-pin surface mount form factor, the device supports installation in space-constrained PCBs.

The sensor responds to bipolar magnetic fields, turning ON in the presence of a north pole and turning OFF with a south pole. Its robust design protects against reverse polarity and ensures consistent performance from -40°C up to 125°C, making it ideal for industrial and automotive environments.

With a typical supply current of only 50mA and a rapid response time of 1.5 microseconds, the SS361CT sensor is suitable for precision magnetic detection tasks. It complies with RoHS Directive 2002/95/EC standards, ensuring environmentally conscious production.

Applications include proximity sensing, speed detection, motor controls, and industrial automation. The sensor's high sensitivity (50 Gauss typical at 25 °C) enables reliable operation even with low-intensity magnetic sources.

Operates with a single magnetic axis and bipolar magnetic type. Features a 3-pin surface mount SOT-23 package for compact usage. Wide temperature range supports harsh environment operation. Low supply current consumption enhances power efficiency.

Fast response time ensures real-time sensing. Complies with environmental safety standards (RoHS). Robust reverse polarity protection for safer installation. Suitable for industrial, automotive, and electronics control systems.

Explore more advanced sensor ICs in the Honeywell product range to enhance your designs with precision sensing solutions available at EnvMart.
