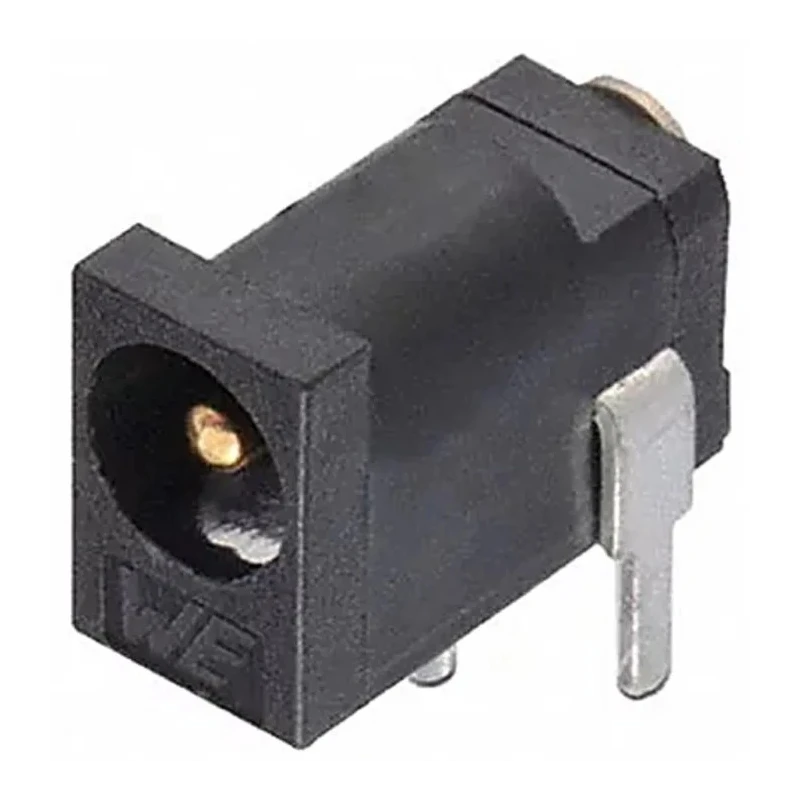

Wurth Elektronik WR-DC Right Angle DC Socket 2A 30V Panel Mount Length 5mm Tin Gold 694103303002

Wurth Elektronik 694103303002 WR-DC Right Angle DC Socket is a high-quality panel mount DC power connector engineered for safe and reliable electrical connections in low voltage applications. Rated for 2A current and 30V voltage, this socket offers a right-angle form factor that optimizes PCB space usage and layout flexibility.

The connector has a barrel inside diameter of 1.35 mm and outside diameter of 3.5 mm, designed to fit standard DC barrel plugs. It features a female connector gender with a pin diameter of 3.5 mm, making it suitable for various power delivery scenarios requiring panel mounting.

Constructed with copper alloy contacts plated with tin and gold, the socket ensures excellent conductivity, corrosion resistance, and durability. The termination type is solder, providing robust mechanical and electrical connections to PCBs.

The housing is manufactured with black UL94-V0 rated PA66 material, providing flame retardant properties for enhanced safety in industrial and commercial environments. The product dimensions include a length of 5 mm and width of 11.1 mm, allowing compact integration into electronic assemblies.

This WR-DC series connector from Wurth Elektronik is ideal for use in electronic components, power supplies, communication devices, and industrial equipment requiring dependable DC power connections. It complies with no specific approvals but meets general quality standards for panel mounted DC Power Sockets.

The socket features a 1.35 mm inside diameter and 3.5 mm outside diameter barrel. It supports a maximum current of 2 amperes and voltage of 30 volts. Right angle orientation ensures space-saving on PCB layouts. The contact is gold and tin plated for enhanced conductivity and corrosion resistance.

Termination is solder type with copper alloy contact material. The length of the socket is 5 mm and width 11.1 mm for compact installation. Connector gender is female with matching pin diameter of 3.5 mm. Series designation is WR-DC, suitable for PCB mounting applications.

The housing is made from black UL94-V0 PA66 material ensuring flame retardancy. Designed for applications in electronic components, power, and connectors sectors. Explore more premium DC power connector products and accessories at EnvMart to enhance your electronics designs and projects.
