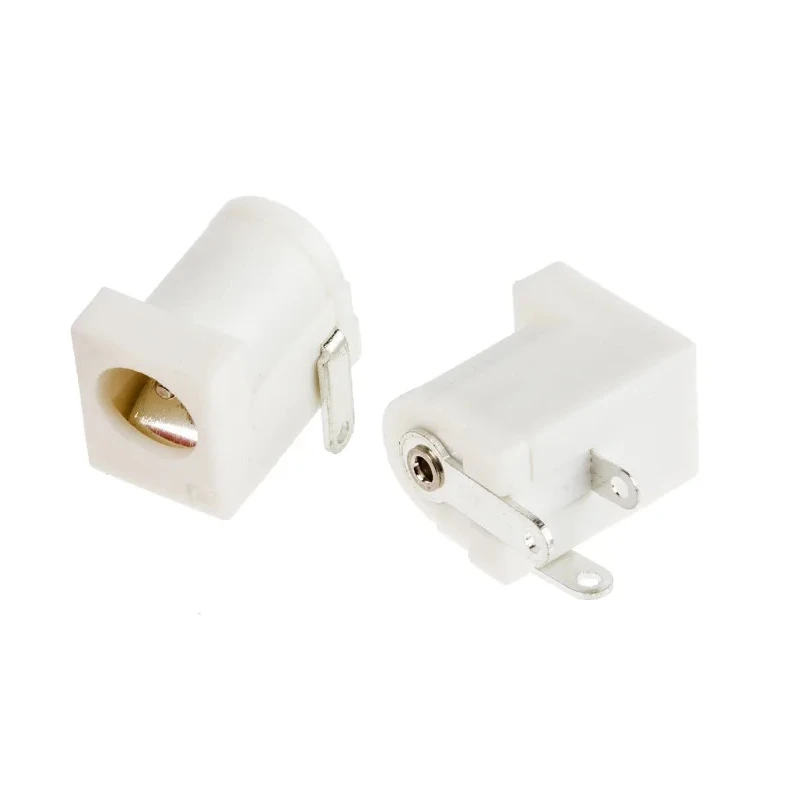

RS PRO Right Angle DC Power Socket Female, 5A, 12V, PCB Mount, Length 14.5mm, Tin Plated 143-8915

RS PRO 143-8915 Right Angle DC Power Socket Female is a high-quality connector designed for PCB mounting, rated for 5 amperes current and 12 volts operating voltage with a typical length of 14.5 mm. This DC socket meets the demands of a wide range of electronic applications including signal processing and power supply units, providing dependable and stable connection solutions.

The right angle structure allows convenient and space-saving assembly on printed circuit boards, making it well-suited for compact electronic layouts. The body is made from robust PBT material, which provides excellent electrical insulation and durability for long-term use.

The socket accepts standard 2.1 mm and 2.5 mm male plugs, making it versatile for various DC power sources. Contacts made from copper alloy ensure good electrical conductivity, while the tin plating provides resistance to corrosion and oxidation, improving connector lifespan.

The solder termination type secures the socket firmly onto PCBs to maintain steady electrical contacts even under thermal stress or vibrations found in industrial and laboratory environments.

With precise dimensions of 14.5 mm in length and 9 mm in width, this connector fits typical modern PCB designs seamlessly. While it does not cite specific standards or approvals, the RS PRO brand delivers consistent quality assurance.

The socket accepts standard 2.1 mm and 2.5 mm plugs for versatile applications. Right angle orientation facilitates convenient PCB installation in compact designs. Constructed with a durable PBT body material ensuring electrical insulation and mechanical strength.

Features solder termination for secure and stable connections on PCB boards. Copper alloy contacts provide excellent conductivity and corrosion resistance. Tin contact plating ensures effective protection against oxidation.

The socket measures 14.5 mm in length and 9 mm in width, suitable for precise PCB layouts. Typical use cases include signal processors, power supplies, and other electronic devices requiring reliable DC power input. Designed and manufactured under strict quality controls without specified compliance standards.

This RS PRO DC Power Socket is ideal for use in industrial, laboratory, manufacturing, and equipment assembly settings requiring reliable DC connections. It supports efficient power transmission and compact design integration.
