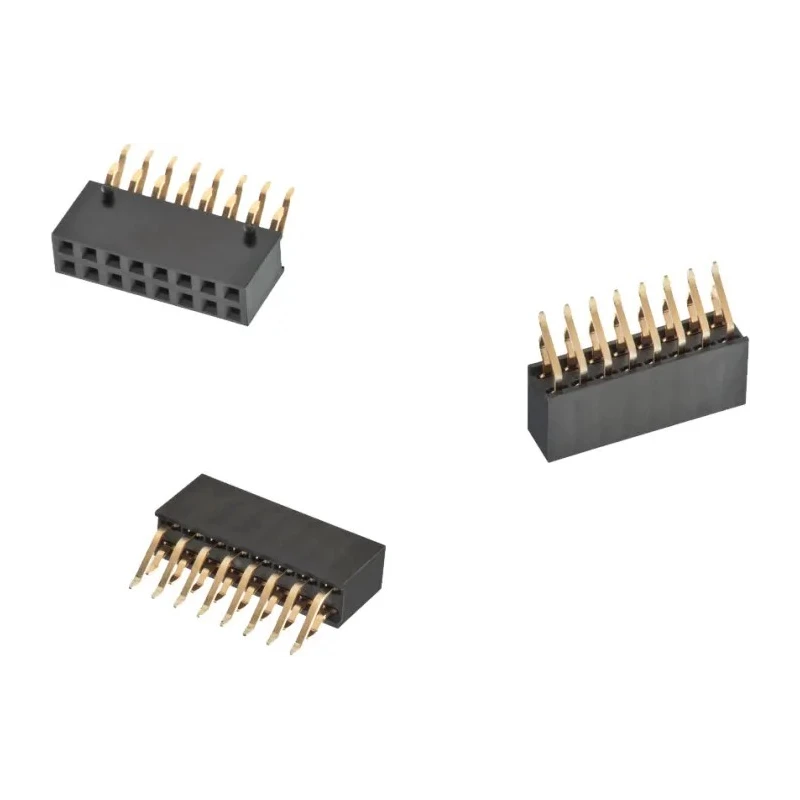

Wurth Elektronik WR-PHD Series Angled Surface PCB Socket 24-Contact 2 Row 2.54 mm Pitch 610124249221
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Angled |
| Current | 3A |
| Packaging | Tape and Reel |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 24 |
| Connector System | Board-to-Board |
Key Features
- Supports a current rating of 3A for moderate power applications.
- Designed with a copper alloy contact material with gold plating for enhanced conductivity and corrosion resistance.
- Operates effectively in temperatures from -40°C to 125°C.
- Features a durable PA6T insulator material and UL94 V-0 flammability rating for safety.
- Offers 25 mating cycles durability suitable for repeated connections.
- Packaged on tape and reel for convenient automated assembly processes.
- Angled orientation facilitates easier routing and board layout.
- Rated for 500V voltage ensuring compatibility with standard PCB systems.
Product Description
Wurth Elektronik 610124249221 angled surface PCB socket from the WR-PHD Series is a high-quality surface mount connector designed for board-to-board applications. This dual-row header offers 24 contacts spaced at a 2.54 mm pitch, optimized for reliable electrical connections in electronic circuits.
Constructed using robust copper alloy contacts plated with gold, it ensures excellent conductivity and resistance to corrosion. The insulator is made of PA6T material rated UL94 V-0 for flame retardance, providing operational safety.
This PCB socket supports a continuous current of 3A and a voltage rating of 500V, suitable for a wide range of electronic component assemblies. It operates efficiently across a temperature range from -40°C to 125°C, making it suitable for industrial and commercial applications that require thermal stability.
The angled orientation allows for flexible board designs and eases cable management. Its durability supports up to 25 mating cycles, making it reliable for applications needing frequent plug-in and removal.
Packaging in tape and reel format facilitates high-volume automated manufacturing processes, enhancing production efficiency in electronics assembly lines.
Typical use cases include industrial electronics, consumer electrical devices, communication equipment, and automotive electronics where dependable board-to-board connectivity is essential.
Supports a current rating of 3A for moderate power applications. Constructed with copper alloy contacts plated in gold for enhanced conductivity and corrosion resistance. Operates across an extended temperature range from -40°C to 125°C.
Durable PA6T insulator material with UL94 V-0 flame retardant rating. Provides 25 mating cycles for reliable repeated connections. Angled surface mount design enables improved board layout and wiring. Voltage rating of 500V for versatile electronic applications.
Packaged on tape and reel to support automated PCB assembly. Explore more PCB Sockets and connectors at EnvMart for industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current rating of 3A, making it suitable for moderate power applications.
This PCB socket has a voltage rating of 500V, ensuring compatibility with standard PCB systems.
It operates effectively within a temperature range from -40°C to 125°C.
This model features 24 contacts arranged in a dual-row configuration.
The contacts are made from a copper alloy and are plated with gold for enhanced conductivity and corrosion resistance.
The insulator is constructed from PA6T material, which has a UL94 V-0 flammability rating for safety.
It is designed for up to 25 mating cycles, making it suitable for applications requiring frequent connections and disconnections.
This model is a surface mount type, allowing for easy integration onto PCB layouts.
It is packaged on tape and reel, facilitating convenient automated assembly processes.
It features an angled orientation, which aids in routing and board layout.
Typical use cases include industrial electronics, consumer electrical devices, communication equipment, and automotive electronics.
