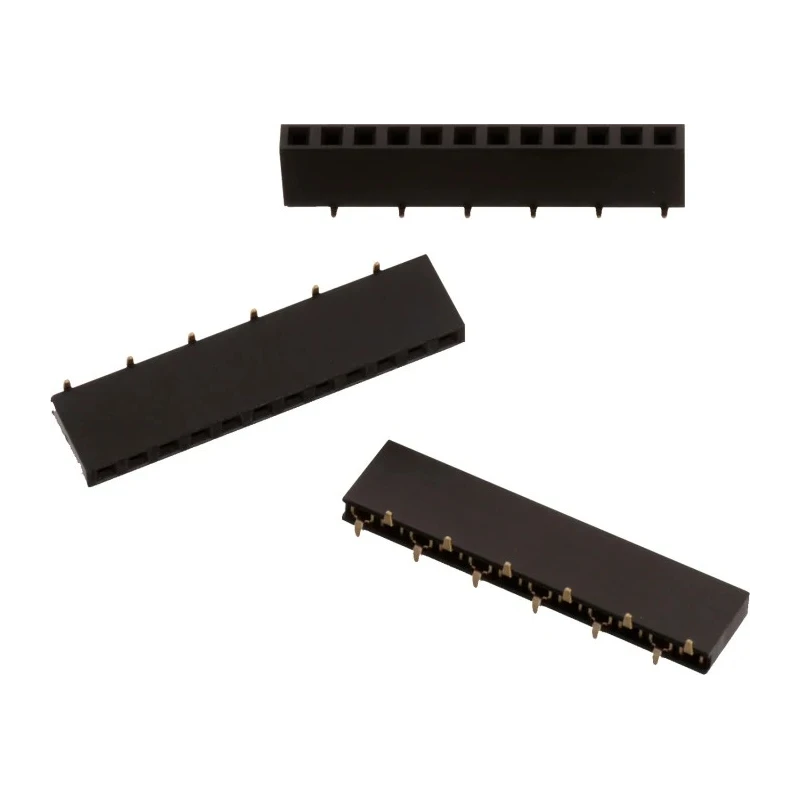

Wurth Elektronik WR-PHD Series Straight Surface PCB Socket 8-Contact 1 Row 2.54 mm Pitch 500V 3A 61000813321
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 500V |
| Brand | Wurth Elektronik |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Contact Material | Copper Alloy |
| Series | WR-PHD |
| Durability | 25mating cycles |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Connector System | Board-to-Board |
Key Features
- Constructed with copper alloy contacts plated with gold for reliable conductivity.
- Designed for board-to-board connector systems ensuring secure electrical connections.
- Operating temperature range from -40°C to 125°C, suitable for diverse environments.
- Insulator material is PA9T with UL94 V-0 flammability rating for safety compliance.
- Durable with a rated 25 mating cycles to ensure longevity in use.
- Surface mount type with straight orientation simplifies PCB assembly.
- Compliant with lead-free and RoHS standards.
- Manufactured in Taiwan, Province of China.
Product Description
Wurth Elektronik 61000813321 is a WR-PHD Series straight surface mount PCB socket featuring 8 contacts in a single row with a 2.54 mm pitch. It supports a current rating of 3A and is rated for 500V, making it suitable for various electronic applications.
This PCB socket uses copper alloy contacts with gold plating to ensure reliable electrical performance and minimize corrosion. The PA9T insulator material is flame retardant with UL94 V-0 rating, contributing to the safety of electrical assemblies.
The connector system is designed as board-to-board type with a straight orientation, facilitating easy and secure PCB connections. It operates effectively in temperatures ranging from -40°C to 125°C, making it appropriate for industrial, commercial, and electronic manufacturing environments.
Durability is ensured up to 25 mating cycles, providing stable mechanical and electrical connection over repeated usage. Additionally, the socket conforms to lead-free and RoHS compliance standards, supporting environmental safety regulations.
Manufactured in Taiwan, Province of China, this socket is an ideal component for electronics designers and manufacturers looking for a reliable and high-quality PCB mounting solution. The product is suitable for use in industrial electronics, communications equipment, and other precision electronic applications.
Constructed with copper alloy contacts plated with gold for reliable conductivity. Designed for board-to-board connector systems ensuring secure electrical connections. Operating temperature range from -40°C to 125°C, suitable for diverse environments.
Insulator material is PA9T with UL94 V-0 flammability rating for safety compliance. Durable with a rated 25 mating cycles to ensure longevity in use. Surface mount type with straight orientation simplifies PCB assembly. Compliant with lead-free and RoHS standards.
Manufactured in Taiwan, Province of China. Explore more high-quality PCB Sockets and related electronic components on EnvMart for your industrial and electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 500V.
This model has a current rating of 3A.
The contact pitch size is 2.54 mm.
It operates effectively in temperatures ranging from -40°C to 125°C.
This socket features 8 contacts in a single row.
It is designed as a board-to-board connector system.
The contacts are constructed from copper alloy and are plated with gold.
The insulator material has a UL94 V-0 flammability rating.
This model is rated for 25 mating cycles.
It supports surface mount type installation.
This socket is manufactured in Taiwan, Province of China.
Yes, it is compliant with lead-free and RoHS standards.
