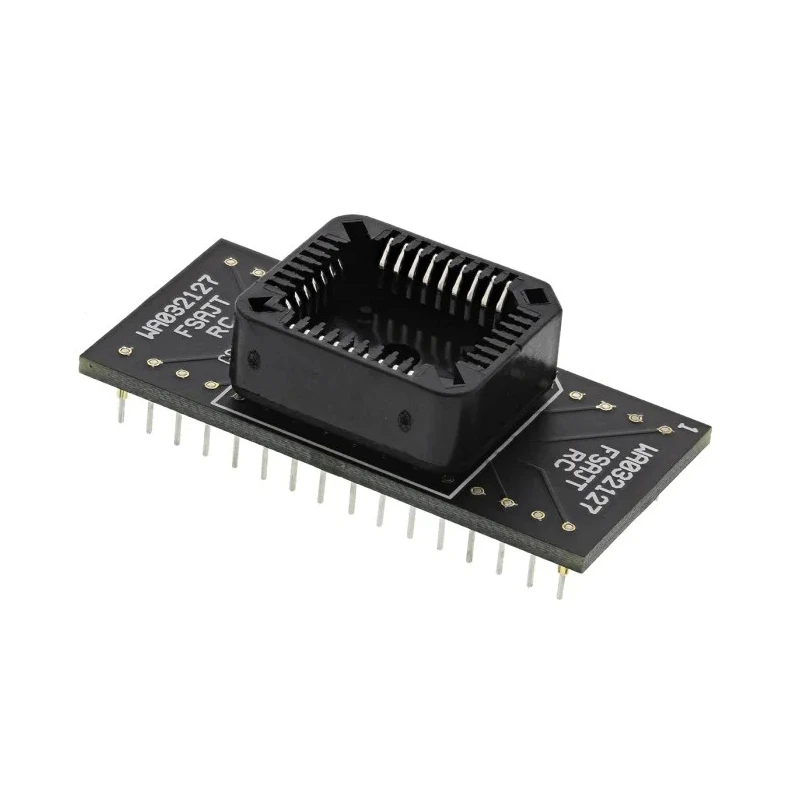

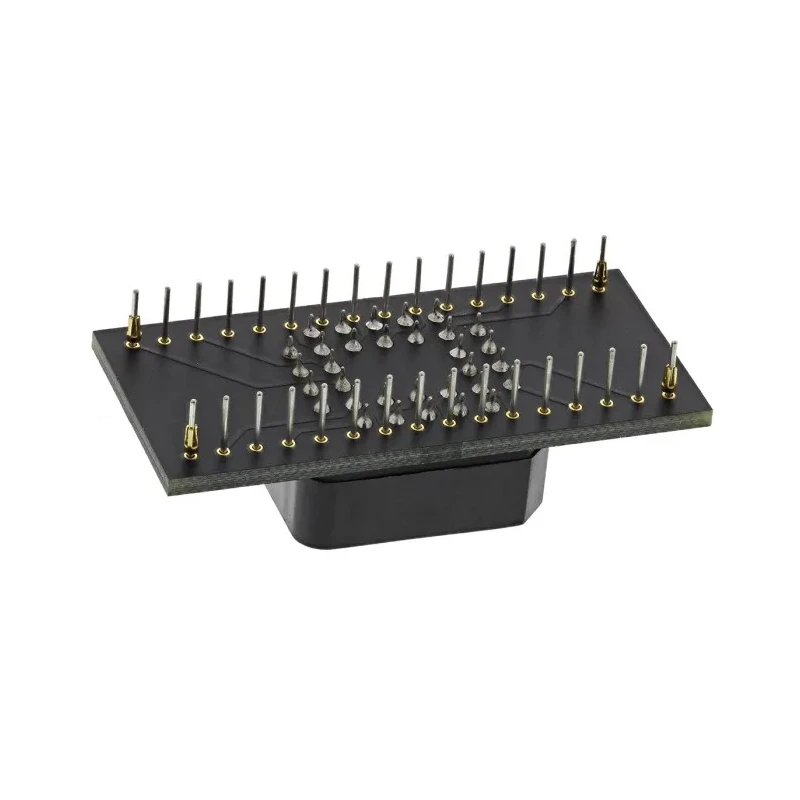

Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter, PLCC to DIP WA032127FSAJTRC

Name: Winslow Straight Through Hole Mount 2.54 mm Pitch IC Socket Adapter, PLCC to DIP WA032127FSAJTRC
Brand: Winslow
SKU: 172523
Price: 20.22 USD
Availability: InStock



Category IC Socket Adapter Brand Winslow Condition New

Specifications

Country of Origin	United Kingdom
Brand	Winslow
Orientation	Straight
Model	WA032127FSAJTRC
Mount Type	Through Hole
Housing Material	FR4
Contact Material	Brass
Pitch	2.54mm
Contact Plating	Tin over Nickel
Connection Gender A	Female
Number of Contacts A	32
Connection Gender B	Male
Connection A	PLCC
Connection B	DIP

Key Features

This IC socket adapter converts PLCC to DIP format, maintaining a 2.54 mm pitch.
It features 32 contacts on both PLCC and DIP sides with female and male connection genders respectively.
Constructed with brass contacts plated with tin over nickel and an FR4 housing for durability.
The straight orientation and through-hole mount facilitate easy PCB assembly.
Designed to reduce board redesigns by adapting package types efficiently.
Manufactured in the United Kingdom with high-quality materials.
Ideal for electronics development, prototyping, and manufacturing in industrial and laboratory settings.

Product Description

Winslow WA032127FSAJTRC is a Straight Through Hole Mount IC Socket Adapter with a 2.54 mm pitch, designed to convert PLCC (Plastic Leaded Chip Carrier) to DIP (Dual Inline Package) formats seamlessly. This adapter allows the use of PLCC chips on boards designed for DIP packages, helping engineers and manufacturers avoid costly PCB redesigns.

The product features 32 contacts on both the PLCC and DIP sides, with female connection gender on the PLCC side and male on the DIP side, ensuring compatibility between the two package types. The contacts are made of brass and plated with tin over nickel, providing reliable electrical performance and corrosion resistance. The housing material is FR4, known for its robust mechanical and thermal properties.

This IC socket adapter uses a through-hole mounting method with a straight orientation, suitable for mounting onto printed circuit boards with a 2.54 mm pitch, which corresponds to standard 0.1 inch spacing. It meets industry needs for adapting device packages without alterations to the original PCB design.

Manufactured in the United Kingdom, this adapter maintains high build quality and standards despite lacking specific certifications or approvals. Converts PLCC packages to DIP format with a standard 2.54 mm pitch. Features 32 contacts per side with female to male connection gender configuration.

Employs durable brass contacts with tin over nickel plating for enhanced conductivity. Robust FR4 housing ensures structural stability and insulation. Straight orientation and through-hole mounting promote easy PCB integration.

Manufactured in the United Kingdom, ensuring quality control. Supports electronics industrial, laboratory, manufacturing, and prototyping applications.

This IC socket adapter is essential for electronics technicians and engineers managing different package formats during design, testing, and production stages. It reduces costs and time delays due to package incompatibilities by enabling straightforward adaptation between PLCC and DIP packages.

Explore the complete range of IC Socket Adapters at EnvMart to find compatible solutions for your electronic component mounting requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The pitch of this IC socket adapter is 2.54 mm, which corresponds to standard 0.1 inch spacing.

This adapter supports a PLCC connection with female gender on one side and a DIP connection with male gender on the other side, featuring 32 contacts on each side.

The contacts are made of brass and are plated with tin over nickel, while the housing is constructed from FR4 material, known for its mechanical and thermal properties.

It employs a through-hole mounting method with a straight orientation, making it suitable for integration onto printed circuit boards.

This IC socket adapter is manufactured in the United Kingdom, ensuring quality control during production.

The model number of this IC socket adapter is WA032127FSAJTRC.

It is designed for electronics development, prototyping, and manufacturing in industrial and laboratory settings, facilitating the use of PLCC chips on DIP boards.

This adapter features 32 contacts on both the PLCC and DIP sides.

The connection gender configuration is female on the PLCC side and male on the DIP side.

The purpose of this adapter is to convert PLCC packages to DIP format, allowing for the use of PLCC chips on boards designed for DIP packages without redesigning the PCB.
