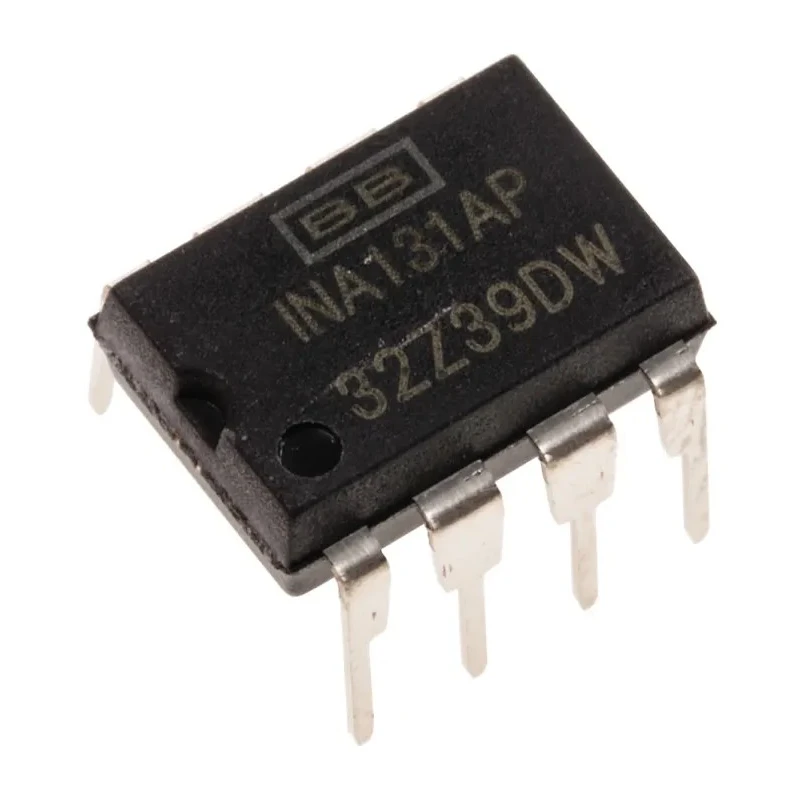

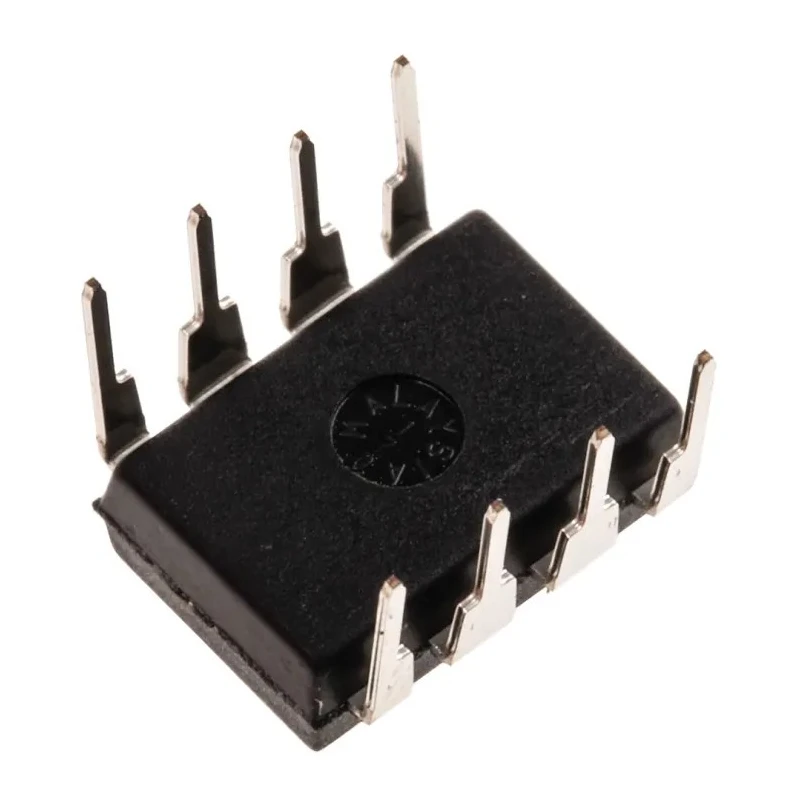

Texas Instruments Instrumentation Amplifier 0.125 mV Offset 70 kHz 8-Pin 3 mA PDIP INA131AP

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Instrumentation Amplifier 0.125 mV Offset 70 kHz 8-Pin 3 mA PDIP INA131AP

Name: Texas Instruments Instrumentation Amplifier 0.125 mV Offset 70 kHz 8-Pin 3 mA PDIP INA131AP
Brand: Texas Instruments
SKU: 154542
Price: 19.65 USD
Availability: InStock



Category Instrumentation Amplifiers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	4.57mm
Length	9.81mm
Model	INA131AP
Mount Type	Through Hole
Series	INA131
Maximum Operating Temperature	85°C
Package Type	PDIP
Minimum Operating Temperature	-40°C
Number Of Channels	1
Pin Count	8
Maximum Supply Voltage	18V
Minimum Supply Voltage	5V
Supply Current	3mA
GBP - Gain Bandwidth Product	70kHz
Vos - Input Offset Voltage	0.125 mV
Slew Rate	0.7V/μs
CMRR - Common Mode Rejection Ratio	106dB

Key Features

This amplifier features a very low input offset voltage of 0.125 mV ensuring accurate signal amplification.
It operates with a power supply voltage ranging from 5 V to 18 V for flexible integration.
The device provides a gain bandwidth product of 70 kHz suitable for moderate frequency amplification needs.
The 8-pin PDIP package supports through-hole mounting, facilitating easy prototyping and PCB assembly.
Supply current is typically 3 mA, enabling efficient power consumption.
The operating temperature range spans from -40°C to 85°C, making it suitable for industrial environments.
Common mode rejection ratio (CMRR) of 106 dB delivers excellent noise suppression in electrically noisy settings.
The slew rate of 0.7 V/μs supports reasonable response times for signal variations.

Product Description

The Texas Instruments INA131AP instrumentation amplifier is a precision analog component designed for high accuracy differential signal amplification. Featuring a low input offset voltage of 0.125 mV and a typical gain bandwidth product of 70 kHz, this device supports accurate measurement in noisy and industrial environments.

Packaged in an 8-pin PDIP for through-hole mounting, the INA131AP is ideal for applications requiring stable amplification with reduced drift. The amplifier accepts a wide supply voltage range from 5 V to 18 V with a modest current consumption of 3 mA, making it suitable for various embedded systems and electronic instrumentation.

Industrial-grade temperature tolerance from -40°C to 85°C enables reliable operation in harsh conditions. The high common mode rejection ratio of 106 dB ensures excellent suppression of unwanted noise, critical in precision measurement setups such as sensor signal conditioning and data acquisition systems.

This instrumentation amplifier features a very low 0.125 mV input offset voltage for precision. Wide supply voltage range of 5 V to 18 V supports diverse power architectures. Gain bandwidth product of 70 kHz adequate for medium-frequency applications.

Compact 8-pin PDIP package ideal for through-hole mounting and prototyping. Low supply current of 3 mA enables efficient power utilization. Operating temperature from -40°C to 85°C supports industrial usage. High common mode rejection ratio (CMRR) of 106 dB minimizes noise interference.

Slew rate of 0.7 V/μs delivers responsive signal amplification.

Widely used in industrial, electronic test, measurement, and sensor applications, the INA131AP provides robust and accurate instrumentation amplification. Its low offset voltage and outstanding noise rejection allow for precise DC and AC signal conditioning.
