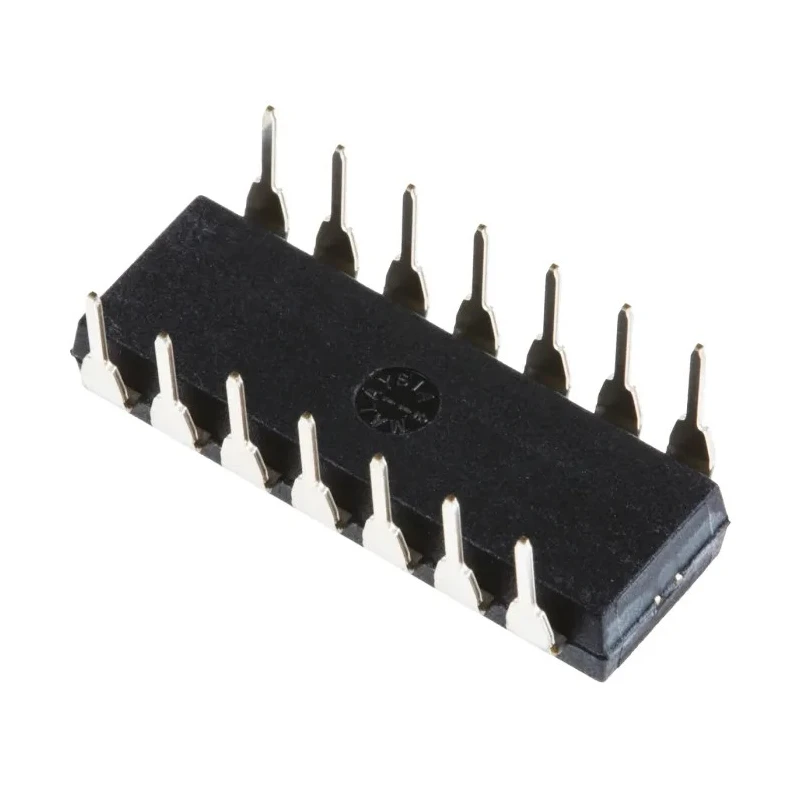

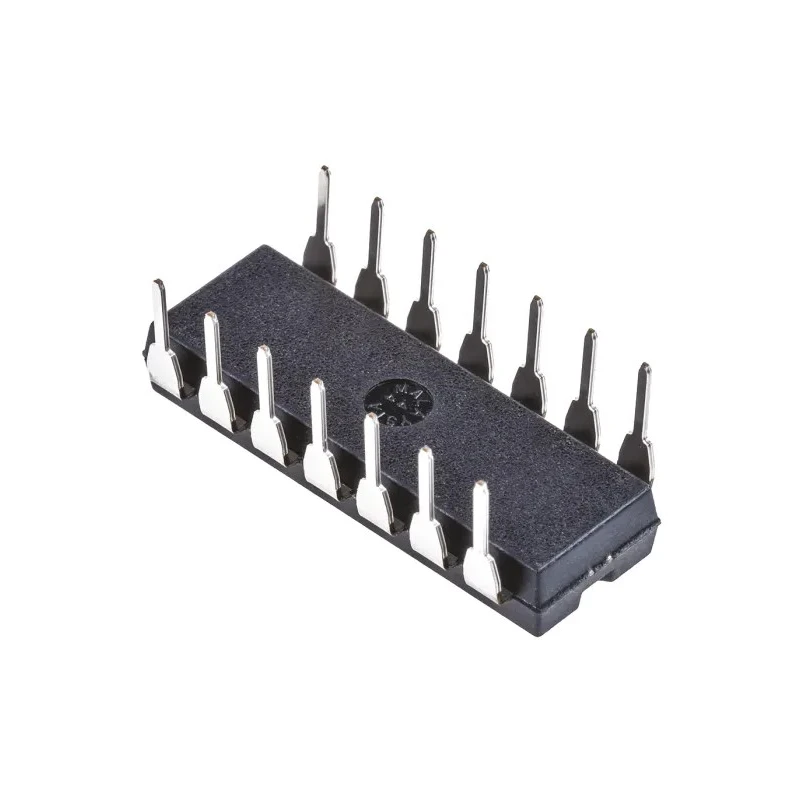

Texas Instruments Instrumentation Amplifier, 2 mV Input Offset Voltage, 1 MHz Gain Bandwidth Product, 14-Pin PDIP PGA202KP

The Texas Instruments PGA202KP is a precision instrumentation amplifier designed for accurate and stable signal conditioning in industrial, laboratory, and measurement systems. Featuring a 2 mV input offset voltage and a gain bandwidth product of 1 MHz, this device supports high-fidelity amplification of low-level signals with minimal distortion and noise.

Packaged in a 14-pin PDIP through-hole format, the PGA202KP is ideal for easy integration on standard PCBs. Its power-efficient 6.5 mA supply current and wide operating voltage range of 6 V to 18 V allow flexible use in various analog front-end systems. The device operates effectively within ambient temperatures from 0°C to 70°C, making it suitable for many industrial applications.

The amplifier provides a robust common-mode rejection ratio of 80 dB, ensuring effective rejection of unwanted interference. Its rapid response is highlighted by a slew rate of 15 V/μs, allowing accurate tracking of fast-changing input signals.

This product belongs to the PGA202 series of programmable gain amplifiers, widely used in instrumentation, data acquisition, and sensor interfacing tasks. The compact size (19.3 mm length and 4.57 mm height) makes the PGA202KP a practical choice for space-constrained designs.

Single channel instrumentation amplifier optimized for precision signal conditioning. Input offset voltage of 2 mV ensures precise measurements and stability. Gain bandwidth product of 1 MHz for high-frequency signal amplification.

Low power consumption with supply current of 6.5 mA. Wide operating voltage range from 6 V to 18 V. 14-pin PDIP package for easy through-hole mounting and replacement. Operational temperature range from 0°C to 70°C. Common-mode rejection ratio (CMRR) of 80 dB for noise immunity.

Slew rate of 15 V/μs for responsive signal tracking. Compact with length 19.3 mm and height 4.57 mm dimensions.

This instrumentation amplifier is widely applied in industrial automation, laboratory measurement equipment, audio signal processing, and sensor signal conditioning systems. Its reliability and precision make it suitable for professional engineering and manufacturing environments.
