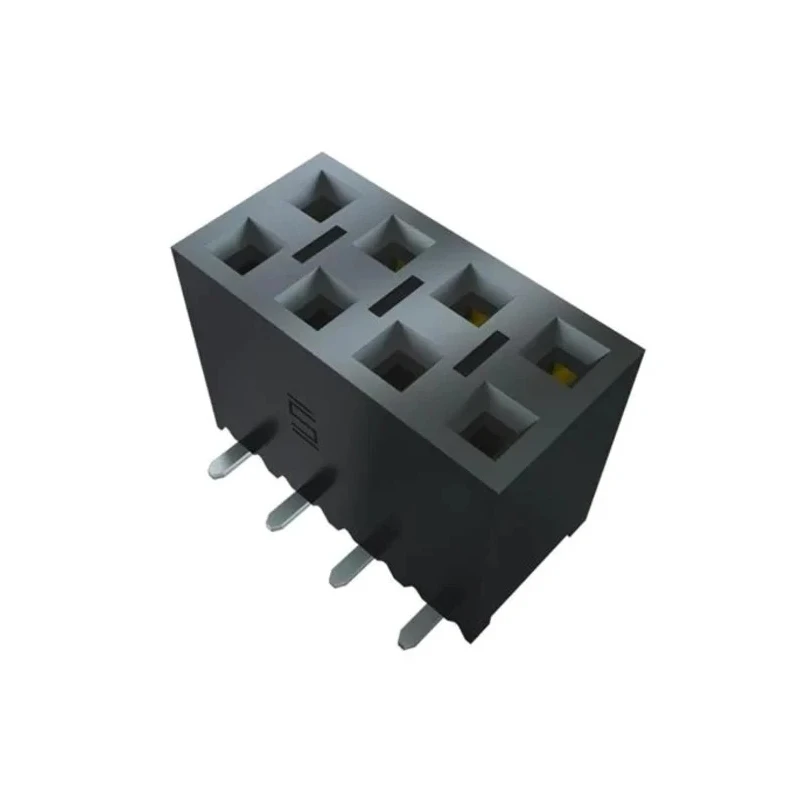

Samtec SSM Series Vertical Surface PCB Socket 20-Contact, 2 Row, 2.54 mm Pitch, Solder Termination SSM-110-L-DV-BE-K-TR

Samtec SSM-110-L-DV-BE-K-TR is a vertical surface mount PCB socket from the SSM Series, engineered for high reliability in electronic applications. This socket features 20 contacts arranged in two rows, each row comprising 10 female pins, with a contact pitch of 2.54 mm. It is designed for board-to-board connector systems and employs solder termination technology for optimal mechanical and electrical connection on PCB surfaces.

The housing material is a robust liquid crystal polymer that ensures increased mechanical strength and stability even under thermal stress. The tail ends have a matte tin finish to improve solderability.

Operating voltage rating of this socket reaches up to 572 volts with a maximum current capacity of 5.2 amperes, making it suitable for demanding electronic assemblies. It reliably functions across a temperature range from -55°C to +125°C, accommodating a wide variety of industrial, commercial, and laboratory environments.

This product is designed for vertical orientation and surface mount applications, facilitating tight and organized PCB layouts. It comes packaged in tape and reel form which supports automated pick and place assembly equipment, enhancing production efficiency. The 2.5 mm row pitch provides a compact footprint, ensuring space-saving designs in high-density board assemblies.

The Samtec SSM Series Vertical Surface PCB Socket is widely used in electronic components manufacturing, telecommunications, computing devices, industrial automation systems, and aerospace electronics. This category of connectors is essential for secure and reliable interconnections in complex PCB configurations.

Features a vertical orientation suitable for board-to-board connections. Consists of 20 female contacts arranged in 2 rows with 10 pins each. Supports operating voltage up to 572 V and current up to 5.2 A. Contact material is phosphor bronze with selective gold plating on the contact area.

Housing made from liquid crystal polymer for durability and heat resistance. Operates reliably between -55°C and 125°C temperature range. Row pitch measures 2.5 mm with 2.54 mm standard pitch between contacts. Termination type is solder suitable for surface mounting.

Packaged in tape and reel format for automated assembly processes. Explore other high-quality PCB Sockets and electronic components at EnvMart to complement your project requirements and achieve superior performance standards.
