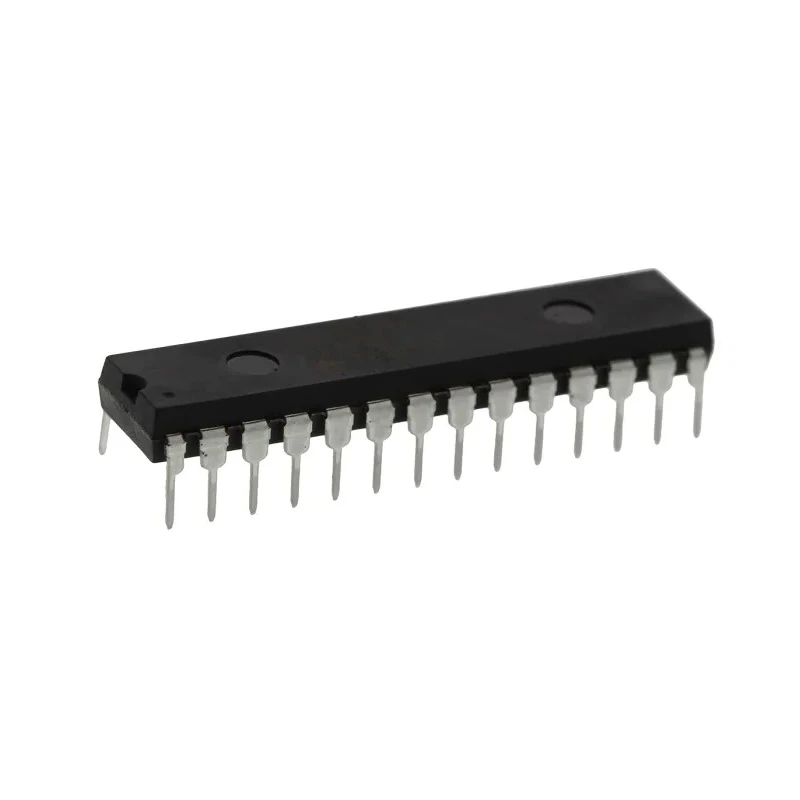

Microchip 8 bit PIC PIC16F Microcontroller 20 MHz 14kB FLASH 28-Pin SPDIP PIC16F886-I/SP

Microchip PIC16F886-I/SP is an 8 bit PIC microcontroller designed with Microchip's Mid-Range core architecture. It operates at a maximum clock frequency of 20 MHz and contains 14kB of FLASH memory to store programs. The microcontroller is housed in a 28-Pin SPDIP package with a pin pitch optimized for through-hole mounting applications.

This device supports 35 instructions and includes an 8 level deep hardware stack, making it efficient for embedded system designs. It features 24 programmable I/O pins to cater to various interfacing needs, along with 11 analog-to-digital converter (ADC) channels with 10-bit precision, which are suitable for accurate sensor data acquisition.

Equipped with peripheral modules such as two 8-bit timers and one 16-bit timer, two capture/compare/PWM modules, an enhanced CCP module, and two analog comparators, the PIC16F886-I/SP supports diverse control and timing functions. Communication interfaces include Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) and a Master Synchronous Serial Port (MSSP) supporting SPI and I2C protocols, facilitating serial communication in embedded applications.

Power management features such as Brown-Out Reset (BOR), Power-Up Timer (PWRT), Oscillator Start-Up Timer (OST), and Watchdog Timer (WDT) improve reliability and system stability. The microcontroller operates reliably over a temperature range of -40°C to 85°C, making it suitable for industrial and automotive environments.

Its program memory is FLASH type, and it supports In-Circuit Serial Programming (ICSP) and In-Circuit Debugging (ICD) for convenient firmware development and field updates. The device has a maximum power dissipation of 800 mW ensuring thermal efficiency.

Program memory size is 14 kB with 368 bits of RAM for data handling. Pin count is 28, with the device core based on Microchip's PIC architecture. Mounting is through-hole, suitable for prototyping and traditional PCB assembly.

Dimensions: Length 35.56 mm, Width 7.49 mm, Height 3.81 mm.

This microcontroller is commonly used in embedded systems, industrial automation, sensor interfacing, and consumer electronics where compact, reliable, and efficient control is required. Its versatile peripherals and robust design support a wide range of applications in electronic device development and production.
