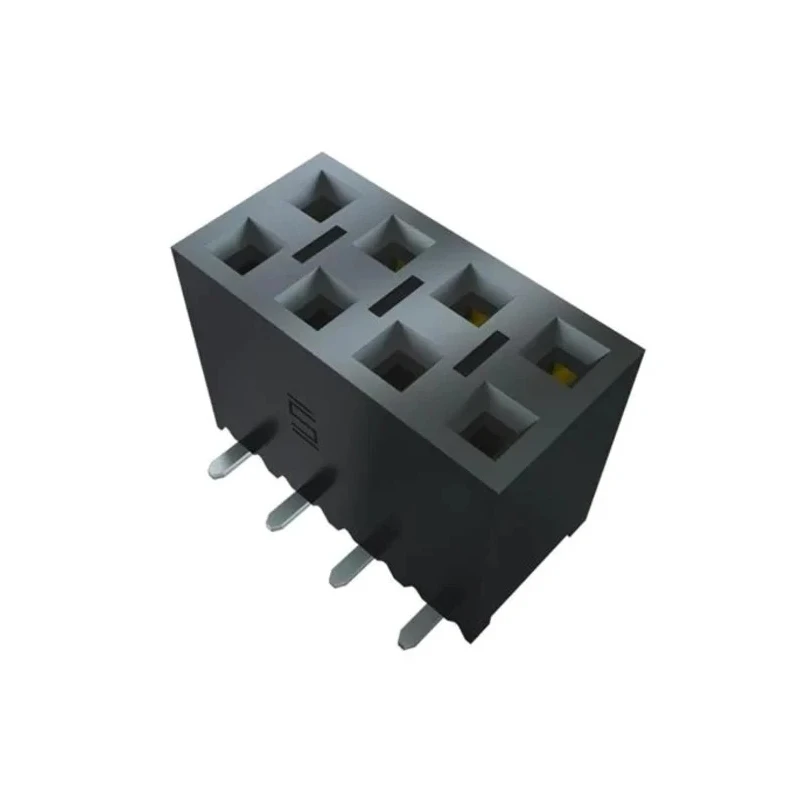

Samtec SSM Series Vertical Surface PCB Socket 10 Contacts 2 Rows 2.54 mm Pitch Solder SSM-105-L-DV-P-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 572V |
| Brand | Samtec |
| Orientation | Vertical |
| Current | 5.2A |
| Model | SSM-105-L-DV-P-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | SSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 2.5mm |
Key Features
- Supports a maximum current rating of 5.2 amperes.
- Constructed with liquid crystal polymer housing for enhanced durability.
- Features phosphor bronze contact material plated with gold for reliable conductivity.
- Vertical orientation with surface mount technology for PCB integration.
- Rated for an operating voltage of 572 V and operating temperatures between -55°C and 125°C.
- Connector system designed for board-to-board connection.
- Tape and reel packaging suitable for automated assembly.
- Dual vertical rows with a row pitch of 2.5 mm provide compact layout.
Product Description
Samtec SSM-105-L-DV-P-TR vertical surface PCB socket is engineered for reliable board-to-board connection in electronics applications requiring high performance and durability. Featuring 10 contacts arranged in 2 rows with a 2.54 mm pitch, this socket supports solder termination and is ideal for surface mounting.
The housing material is liquid crystal polymer, offering excellent mechanical and thermal properties suitable for industrial and commercial electronics. The contacts are made from phosphor bronze and plated with gold to ensure low electrical resistance and corrosion resistance, facilitating high signal integrity.
Designed to operate at voltages up to 572 V and currents up to 5.2 A, this socket can function reliably within a temperature range from -55°C to 125°C, making it suitable for diverse environmental conditions.
The product comes packaged on tape and reel to support automated placement systems, optimizing manufacturing efficiency. Its dual vertical row configuration with a 2.5 mm row pitch ensures compact and organized PCB layouts.
Supports a maximum current rating of 5.2 amperes. Constructed with liquid crystal polymer housing for enhanced durability. Features phosphor bronze contact material plated with gold for reliable conductivity. Vertical orientation with surface mount technology for PCB integration.
Rated for an operating voltage of 572 V and operating temperatures between -55°C and 125°C. Connector system designed for board-to-board connection. Tape and reel packaging suitable for automated assembly. Dual vertical rows with a row pitch of 2.5 mm provide compact layout.
Contact gender is female with matte tin on tail and selective light gold plating on contact area.
This Samtec PCB socket is widely used in industrial electronics manufacturing, laboratory equipment, telecommunications, and commercial electronic devices. It ensures secure, reliable connections where precision and durability are essential.
Explore more PCB Sockets and other PCB connectors at EnvMart for a comprehensive range of electronics components and power connectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this PCB socket is 5.2 amperes.
This model is rated for an operating voltage of 572 V.
The contacts are made from phosphor bronze and are plated with gold for reliable conductivity.
It can operate within a temperature range of -55°C to 125°C.
This model features a surface mount design for PCB integration.
The socket has a total of 10 contacts arranged in 2 rows.
The pitch of the rows is 2.54 mm, with a row pitch of 2.5 mm.
This socket has a vertical orientation.
It uses a solder termination type.
The housing is constructed from liquid crystal polymer, providing enhanced durability.
It is designed for a board-to-board connection.
The product is manufactured in India.
