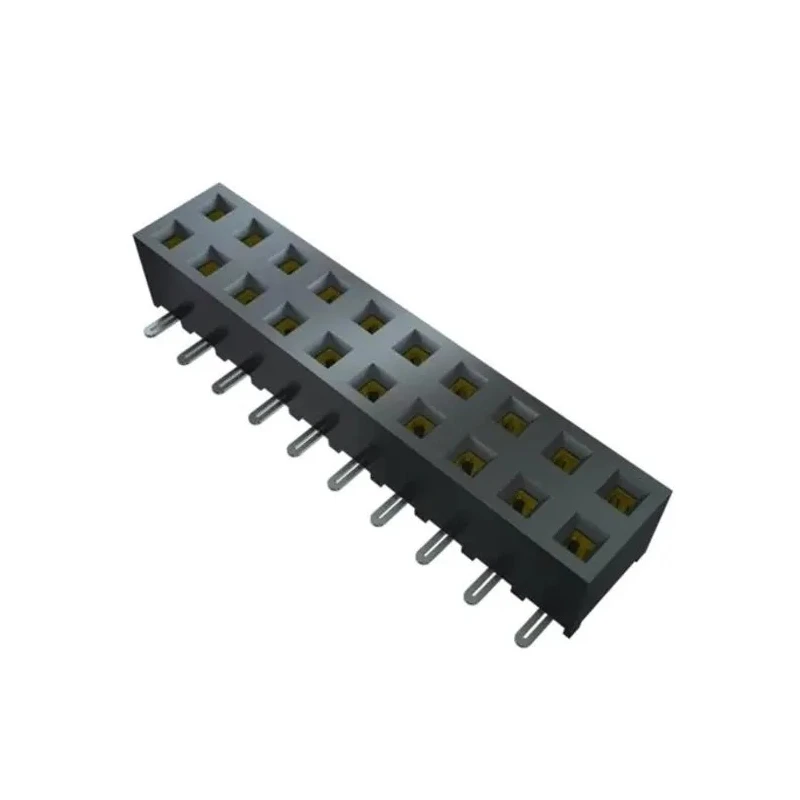

Samtec Straight Surface PCB Socket 6-Contact 2 Row 2 mm Pitch Surface Mount SMM-103-02-S-D-K-TR
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | SMM-103-02-S-D-K-TR |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Row Pitch | 1.27mm |
Key Features
- Features 6 female contacts arranged in 2 rows for robust connectivity.
- Surface mount termination on a 2 mm pitch for precise PCB installation.
- Constructed with Liquid Crystal Polymer housing for durability.
- Gold-plated Beryllium Copper contacts ensure excellent conductivity and corrosion resistance.
- Operates reliably in temperatures from -55°C to 125°C.
- Designed for a current carrying capacity of 3.2 amperes and voltage rating of 350 volts.
- Includes 1.27 mm row pitch and straight orientation for easy mounting.
- Packaged in tape and reel format suitable for automated assembly.
Product Description
Samtec SMM-103-02-S-D-K-TR Straight Surface PCB Socket is a high-quality connector designed for electronic components requiring reliable board-to-board connections.
Featuring 6 female contacts in two rows spaced by a 2 mm pitch, this socket is engineered for surface mount termination on printed circuit boards. The housing material is a durable Liquid Crystal Polymer that provides mechanical stability under various operating conditions.
The contacts are made of Beryllium Copper Alloy with a gold plating thickness of 0.000762 mm on the contact area, ensuring an excellent low-resistance electrical connection and high corrosion resistance.
This connector supports currents up to 3.2 A and voltage ratings up to 350 V, suitable for a wide range of PCB applications in industrial, manufacturing, and electronic assembly environments.
Designed for use in operating temperature extremes ranging from -55°C to 125°C, the socket offers robust performance and reliable service in harsh conditions. The row pitch is 1.27 mm with a straight orientation optimizing layout flexibility.
The product is supplied in tape and reel packaging to facilitate automated placement and soldering in high-volume manufacturing processes. Features 6 female contacts arranged in 2 rows on a 2 mm pitch. Surface mount termination type for easy PCB integration.
Constructed with Liquid Crystal Polymer housing for strength and durability. Gold-plated Beryllium Copper contacts provide superior conductivity. Operational temperature range from -55°C to 125°C ensures thermal resilience.
Rated for 3.2 amperes current and 350 volts voltage for versatile applications. Packaged in tape and reel for efficient automated assembly.
This PCB socket finds extensive use in industrial electronics, telecommunications equipment, manufacturing applications, and as a reliable component in automated electronic assembly lines.
Explore more connectors and PCB Sockets within EnvMart’s Electronics & Electricals category for precision and quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this PCB socket is 350 volts.
This model has a current carrying capacity of 3.2 amperes.
It operates reliably in temperatures ranging from -55°C to 125°C.
The contacts are made of Beryllium Copper Alloy and are gold-plated for enhanced conductivity and corrosion resistance.
This PCB socket features 6 female contacts arranged in 2 rows.
The pitch of this socket is 2 mm, with a row pitch of 1.27 mm.
It utilizes surface mount termination for easy integration onto printed circuit boards.
The orientation of this model is straight, optimizing layout flexibility.
It is packaged in tape and reel format, suitable for automated assembly processes.
The housing is constructed from Liquid Crystal Polymer, providing mechanical stability.
This model is suitable for various applications in industrial electronics, telecommunications, and automated electronic assembly.
The country of origin for this PCB socket is India.
