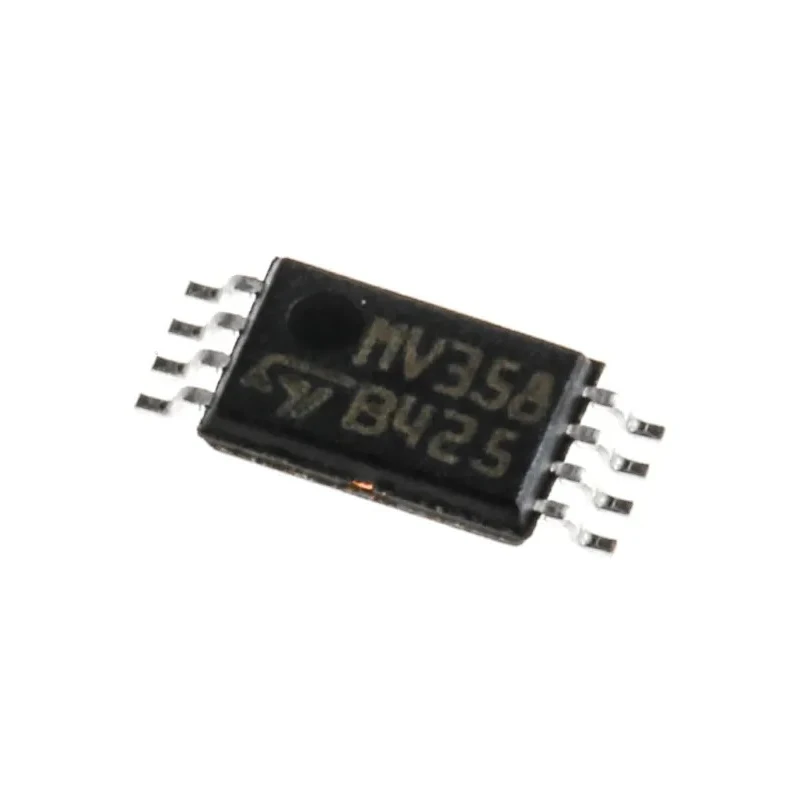

STMicroelectronics Operational Amplifier 1.3 MHz 8-Pin 6V TSSOP LMV358IPT
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1mm |
| Length | 3mm |
| Model | LMV358IPT |
| Width | 4.4mm |
| Mount Type | Surface |
| Series | LMV358 |
| Output Current | 46mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 1.3MHz |
| Input Bias Current | 85 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 0.45V/μs |
| Input Offset Current | 25 nA |
| Low supply current | 145 μA |
| Gain bandwidth product | 1 MHz |
| Electrostatic Discharge (ESD) tolerance | 2 kV |
Key Features
- Low power consumption suitable for battery-operated and portable equipment.
- Rail-to-rail input and output operation for wide dynamic range.
- Wide supply voltage range from 3 V to 6 V.
- High electrostatic discharge tolerance of 2 kV ensures robustness.
- Operating temperature range from -40°C to 125°C for industrial applications.
- Slew rate of 0.45 V/μs for moderate speed signal processing.
- Output current capability of 46 mA supports various load requirements.
- Complies with RoHS directives promoting environmental safety.
Product Description
STMicroelectronics LMV358IPT is a dual general purpose operational amplifier offering a gain bandwidth product of 1.3 MHz. Packaged in an 8-pin TSSOP surface mount package, this device is optimized for low power consumption and rail-to-rail input and output operation, making it highly suitable for battery-powered and portable devices.
Operating from a supply voltage range of 3 V to 6 V, it provides reliable performance across a wide temperature range from -40°C to 125°C, supporting industrial, automotive, and commercial applications. The IC features low input bias current of 85 nA, input offset voltage of 6 mV, and a slew rate of 0.45 V/μs, which delivers precision and stable signal amplification.
Its robust electrostatic discharge (ESD) tolerance of 2 kV enhances device durability and reliability, while compliance with RoHS standards ensures it meets environmental and safety requirements.
Low power rail-to-rail input/output amplifiers designed for portable systems. Wide voltage supply capability from 3 V to 6 V. High ESD tolerance of 2 kV for device protection. Automotive grade AEC-Q100 certification for use in automotive systems.
Compact TSSOP package dimensions: 3 mm x 4.4 mm x 1 mm. Output current capacity up to 46 mA supports varying loads. Operating temperature ranging from -40°C to 125°C suits harsh environments. Low supply current of 145 μA preserves battery life in portable applications.
Versatile operational amplifier for electronics, industrial, automotive, and communication systems.
This dual Operational Amplifier is ideal for applications in industrial instrumentation, automotive electronics, battery-powered devices, and consumer electronics. Its balance of performance, power efficiency, and compact packaging makes it a reliable choice for engineers and designers.
Explore the full range of semiconductor and amplifier products for your projects on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the LMV358IPT is 1.3 MHz, making it suitable for various signal processing applications.
It operates within a supply voltage range of 3 V to 6 V, allowing for flexibility in different applications.
This operational amplifier can provide an output current of up to 46 mA, accommodating various load requirements.
The LMV358IPT operates effectively within a temperature range of -40°C to 125°C, suitable for industrial applications.
The TSSOP package of this model measures 3 mm in length, 4.4 mm in width, and 1 mm in height.
The slew rate for this operational amplifier is 0.45 V/μs, which supports moderate speed signal processing.
The input offset voltage for the LMV358IPT is specified at 6 mV, contributing to its precision in signal amplification.
It has a high electrostatic discharge tolerance of 2 kV, enhancing its robustness and reliability.
This operational amplifier complies with the AEC-Q100 automotive standard, making it suitable for automotive applications.
The input bias current for the LMV358IPT is 85 nA, which is beneficial for low power applications.
The LMV358IPT is designed for surface mounting, which is common in compact electronic applications.
It complies with RoHS directives, promoting environmental safety in its usage and manufacturing.
