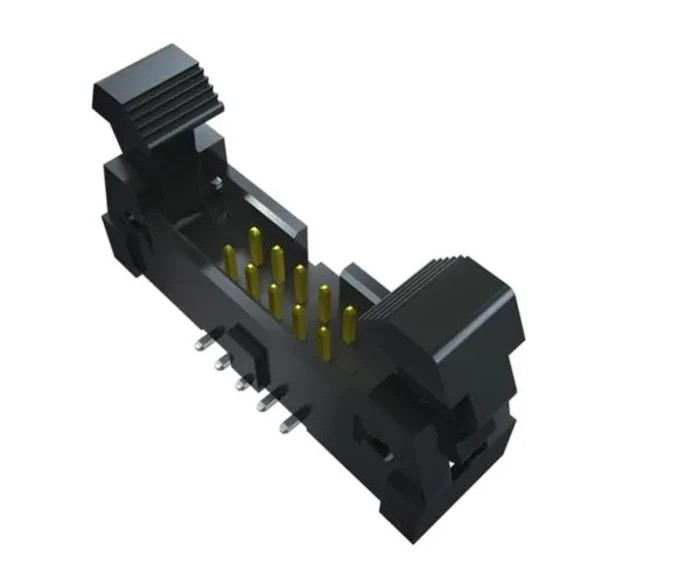

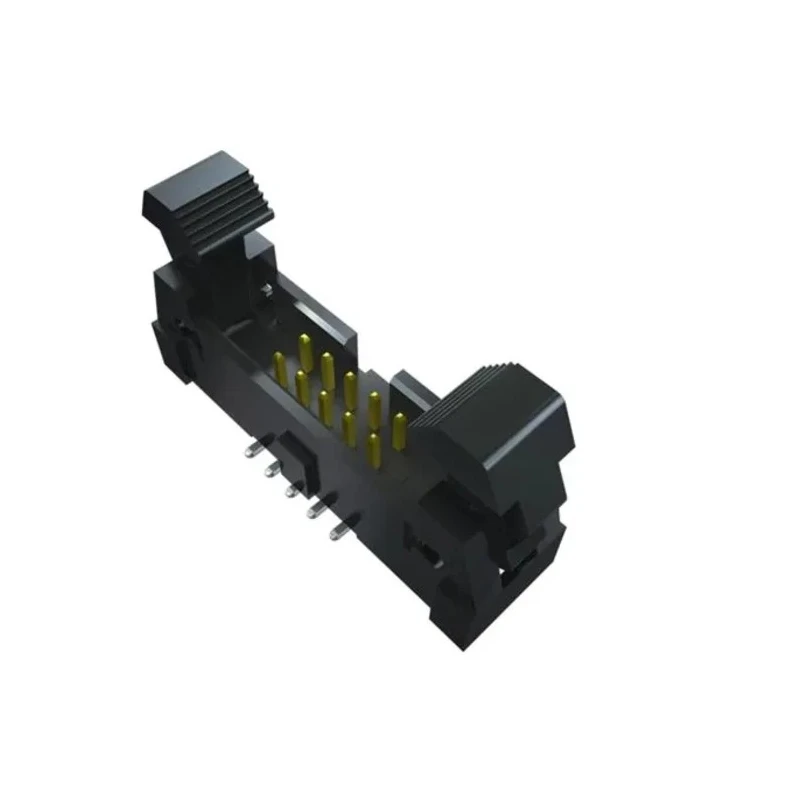

Samtec 20-Way Shrouded IDC Male PCB Header, Surface Mount, 2 Row, 2mm Pitch EHT-110-01-S-D-SM-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec 20-Way Shrouded IDC Male PCB Header, Surface Mount, 2 Row, 2mm Pitch EHT-110-01-S-D-SM-P-TR

Name: Samtec 20-Way Shrouded IDC Male PCB Header, Surface Mount, 2 Row, 2mm Pitch EHT-110-01-S-D-SM-P-TR
Brand: Samtec
SKU: 172133
Price: 15.37 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Model	EHT-110-01-S-D-SM-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	EHT
Termination Type	IDC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	2mm
Contact Plating	Gold, Tin
Number of Contacts	20
Contact Gender	Male
Connector Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

This PCB header has 20 contacts arranged in 2 rows, suitable for IDC termination.
The connector features a shrouded design for protection and reliable mating.
Contacts are gold and tin plated, ensuring excellent conductivity and corrosion resistance.
Constructed with phosphor bronze contacts and a liquid crystal polymer housing for durability.
It operates reliably across a temperature range from -55°C to 125°C.
Designed with a straight orientation and surface mount tail style for efficient PCB integration.
Includes tape and reel packaging designed for automated pick and place assembly.

Product Description

Samtec EHT-110-01-S-D-SM-P-TR is a 20-way shrouded IDC male PCB header designed for surface mount technology (SMT) applications in electronic assemblies. This connector features a 2-row configuration with a 2mm pitch, making it ideal for high-density PCB interconnections requiring reliable and durable contacts.

The contacts are made of phosphor bronze, plated selectively with 0.000762mm gold in the contact area and matte tin on the tail, providing excellent electrical performance and resistance to corrosion. The housing material is a high-performance liquid crystal polymer, offering strength and thermal stability to endure operating temperatures from -55°C up to 125°C.

The straight orientation and surface mount tail type allow easy integration onto PCBs with automated assembly processes, supported by tape and reel packaging. Its shrouded design protects the contacts while preventing misalignment during mating, which ensures prolonged connector life in industrial, manufacturing, and electronic equipment applications.

This PCB header is part of the EHT series, known for precise IDC connectors, and suits applications in industrial electronics, telecommunications, and embedded systems where reliable high-density connections are needed.

This PCB Header has 20 contacts arranged in 2 rows, suitable for IDC termination. The connector features a shrouded design for protection and reliable mating. Contacts are gold and tin plated, ensuring excellent conductivity and corrosion resistance.

Constructed with phosphor bronze contacts and a liquid crystal polymer housing for durability. It operates reliably across a temperature range from -55°C to 125°C. Designed with a straight orientation and surface mount tail style for efficient PCB integration.

Includes tape and reel packaging designed for automated pick and place assembly.

This product offers a robust solution for electronics manufacturers and integrators requiring dependable IDC header connectors. Explore more PCB components and connectors on EnvMart for your industrial and commercial needs.
