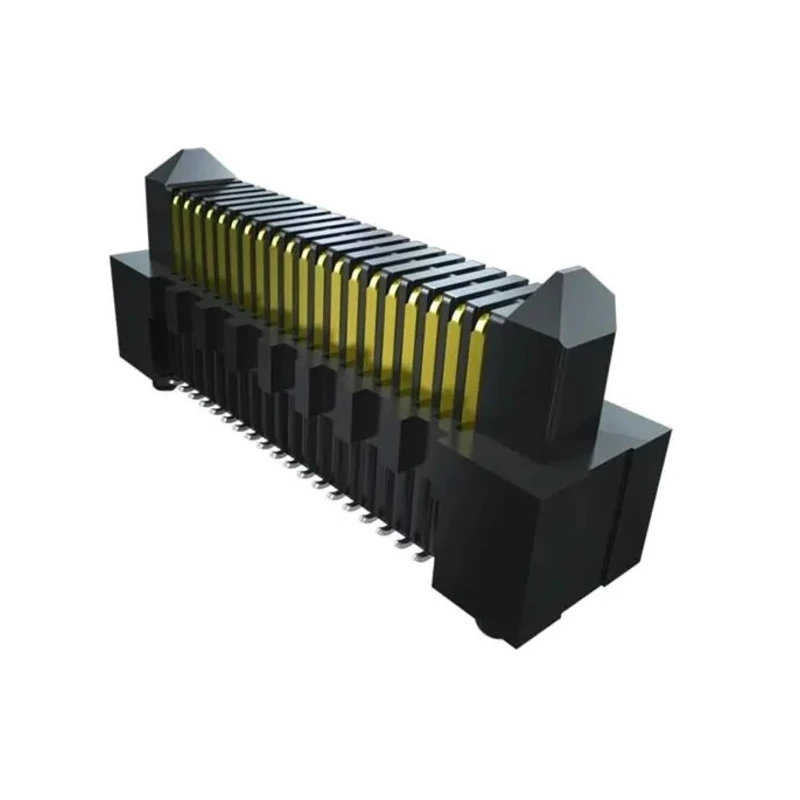

Samtec ERM8 Series Vertical Surface PCB Header 60 Contacts 0.8 mm Pitch 2 Row Shrouded

Samtec ERM8 ERM8-030-08.0-L-DV-K-TR vertical surface PCB header is a rugged and precision-engineered component designed for high-speed electronic applications requiring reliable board-to-board connections. This 60-contact PCB header is arranged in two vertical rows with a 0.8 mm pitch, making it ideal for compact and high-density PCB layouts.

The housing is manufactured from liquid crystal polymer, providing excellent mechanical strength and thermal stability. Its phosphor bronze contacts plated with gold ensure superior electrical performance and resistance to corrosion. The header supports a maximum operating current of 1.4A and voltage of 318V, suitable for various industrial, consumer electronics, and communication equipment.

The shrouded connector design offers enhanced protection, accurate mating, and safety against accidental contact. Termination is through soldering, optimized for surface mount assembly processes. Operating temperature ranges from -55°C to 125°C, ensuring reliable operation across diverse environmental conditions.

This product is surface mount compatible and supplied on tape and reel packaging for automated assembly lines. The compact 0.8 mm pitch and board-to-board connector system provide design flexibility and performance in modern electronics manufacturing.

Features 60 contacts arranged in 2 vertical rows for board-to-board connections. Constructed with liquid crystal polymer housing ensuring high durability and stability. Contact material is phosphor bronze with gold plating for optimal conductivity and corrosion resistance.

Operating voltage rated at 318V and current capacity of 1.4A suitable for varied electronic applications. Shrouded design enhances protection and alignment during mating. Termination type is solder compatible with surface mount technology.

Rated for operation in temperature range from -55°C to 125°C for diverse environments. Pitch between contacts is 0.8 mm, supporting compact PCB designs.

This Samtec PCB Header series is extensively used in industrial, manufacturing, telecommunications, and laboratory electronic assemblies requiring dependable, high-density board interconnects. Its robust design and high operating parameters ensure reliable connectivity for a wide range of applications.

Explore EnvMart’s comprehensive catalog of electronic components to find compatible connectors and accessories for efficient PCB assembly solutions.
