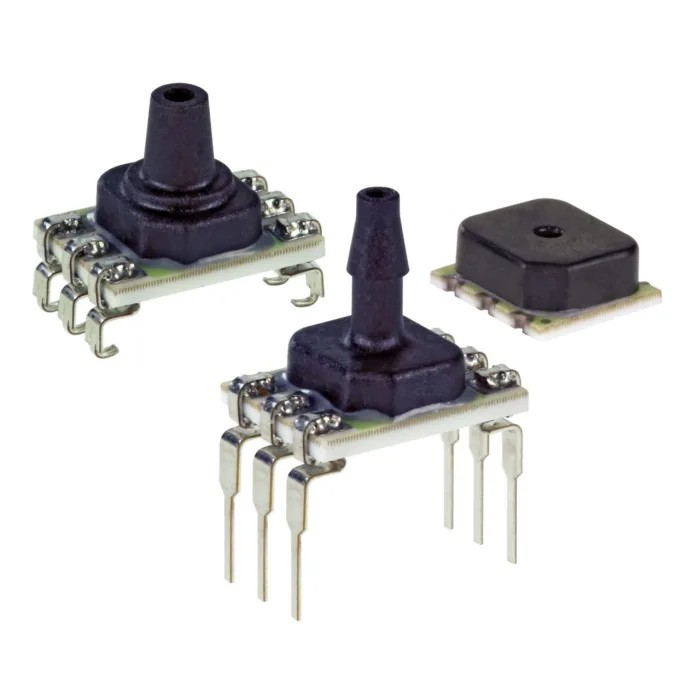

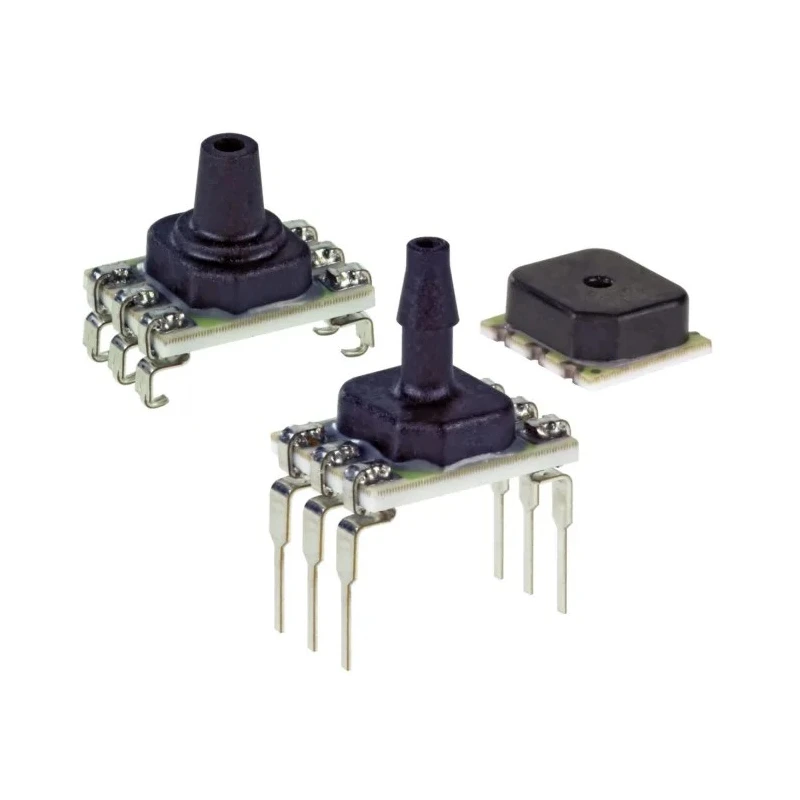

Honeywell Technologies Piezoresistive Pressure Sensor Board 6 SMT, Model with ±0.25% Accuracy, 0-60 kPa, 5V ABPMANN060KGSA3
Specifications
| Country of Origin | India |
|---|---|
| Accuracy | ±0.25 % |
| Brand | Honeywell |
| Maximum Operating Pressure | 60 kPa |
| Height | 10.63mm |
| Length | 7.3mm |
| Model | ABPMANN060KGSA3 |
| Sensor Type | Piezoresistive Pressure Sensor |
| Width | 6.3mm |
| Mount Type | Board |
| Series | ABP |
| Maximum Operating Temperature | +85°C |
| Port Type | Single Axial Barbed |
| Package Type | SMT |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | BPA Free, LFGB, NSF-169 |
| Pin Count | 6 |
| Automotive Standard | ISO 9001 |
| Maximum Supply Voltage | 5V |
| Minimum Supply Voltage | -0.3V |
| Minimum Operating Pressure | 0kPa |
| Maximum Overload Pressure | 200kPa |
Key Features
- Compact SMT package with 6 pins suitable for board mounting.
- Operates with supply voltages from -0.3V to 5V for flexible integration.
- Wide operating temperature range from -40 to +85°C for harsh environments.
- Single axial barbed port enables straightforward tubing connections.
- Stable and calibrated output for gauge and differential pressure monitoring.
- Supports liquid and dry-gas media with optional silicone gel coating for liquid exposure.
- Long-term stability with ±0.25% full-scale span after 1000 hours at 25°C.
- Ideal for medical devices, industrial pneumatic controls, HVAC, and portable battery systems.
Product Description
Honeywell Technologies ABPMANN060KGSA3 is a piezoresistive pressure sensor in a compact board-mounted SMT package featuring six pins. It converts pressure into a ratiometric electrical output, designed for monitoring gauge or differential pressures in electronic systems with ±0.25% accuracy and a 0 to 60 kPa pressure range.
The sensor uses a silicon sensing element with onboard signal conditioning and calibration to provide stable pressure readings across a wide temperature span from -40°C to +85°C, making it suitable for harsh industrial, medical, and HVAC environments.
This device supports both dry-gas and liquid media environments, with a silicone-based gel coating option for protection against non-corrosive liquids and condensation. Its single axial barbed port allows for easy tubing connection on PCB-mounted designs.
With supply voltage compatibility from -0.3V up to 5V, the sensor integrates easily with low-voltage systems and includes features such as internal diagnostics and sleep mode to reduce current consumption, ideal for portable battery-powered applications.
Honeywell ABP series sensors provide long-term offset and sensitivity stability, and the ABPMANN060KGSA3 model meets RoHS environmental standards and ISO 9001 automotive quality requirements.
Compact SMT board mount with 6 pins. ±0.25% accuracy for reliable measurements. 0 to 60 kPa max operating pressure. Wide operating temperature: -40 to +85°C. Single axial barbed port for tubing. Supports liquid and dry-gas media.
Low voltage operation from -0.3V to 5V. Long-term stability and calibration. RoHS compliant and ISO 9001 certified. Analog ratiometric and 12-bit digital outputs.
This pressure sensor is ideal for applications including CPAP and ventilator pressure monitoring in the medical field, pneumatic control and valve positioning in industrial systems, HVAC transmitter sensing, and water/saline monitoring in liquid media scenarios. It supports integration into microcontroller-based systems with multiple output options.
