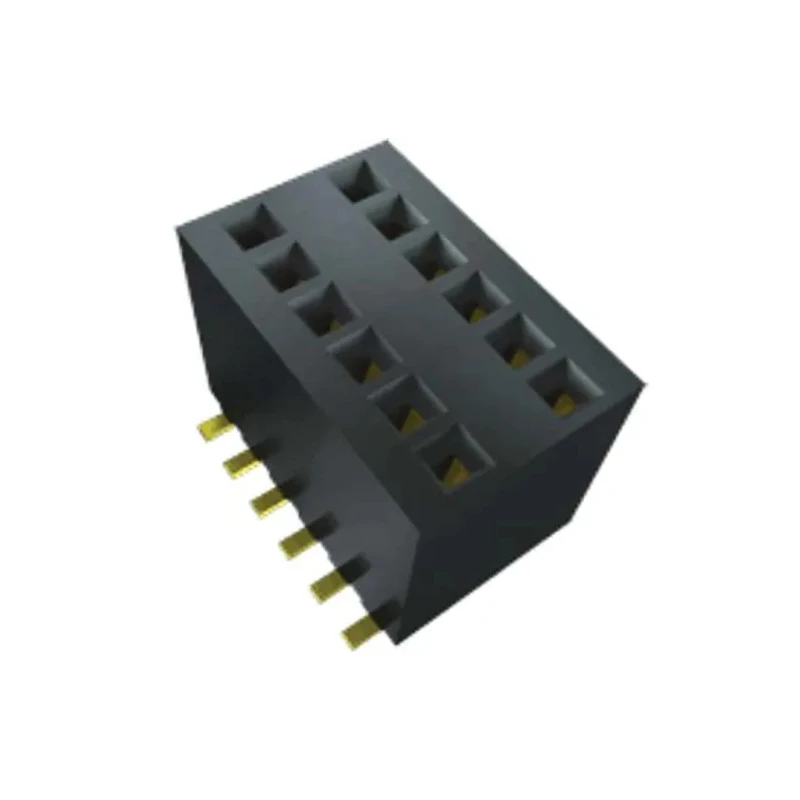

Samtec PCB Socket Micro Socket 20 Contacts 2 Rows 1.27 mm Pitch 290V 3.8A RSM-110-02-L-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 290V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.8A |
| Model | RSM-110-02-L-D |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | RSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | Micro Socket |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Plating | Au or Sn over 50 μ" (1.27 μm) Ni |
| Pitch | 1.27mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Connector System | Board-to-Board |
| Row Pitch | 2.54mm |
Key Features
- Constructed from liquid crystal polymer housing for durability.
- Phosphor bronze contacts plated with gold ensure excellent conductivity.
- Supports a current rating of 3.8 amperes and voltage up to 290 volts.
- Surface mount termination with straight orientation simplifies PCB assembly.
- Operating temperature range spans from -55°C to 125°C for diverse environments.
- Compact pitch of 1.27 mm with 2.54 mm row pitch suitable for high-density PCB layouts.
- Compliant with RoHS standards for environmentally safe manufacturing.
- Ideal for industrial, electronic, and telecommunications applications requiring reliable micro sockets.
Product Description
Samtec RSM-110-02-L-D is a micro socket PCB connector designed for straight surface mount applications. It features 20 reliable contacts in a 2-row configuration with a fine 1.27 mm pitch, making it suitable for dense PCB designs. The socket housing is made from high-quality liquid crystal polymer, providing robust mechanical strength and excellent electrical insulation.
The contacts are manufactured using phosphor bronze and plated with gold to ensure durability, corrosion resistance, and consistent signal integrity. This product supports operating voltages up to 290 volts and a current rating of 3.8 amperes, enabling its use in demanding electronic circuits.
With an operating temperature range between -55°C and +125°C, the socket accommodates harsh industrial and commercial environments. Its surface mount termination type and straight orientation facilitate straightforward PCB assembly and reliable board-to-board connections.
The RSM series is RoHS compliant, reflecting an environmentally responsible manufacturing process. This micro socket is suitable for electronic components industries including industrial automation, telecommunications, computing, and instrumentation.
Constructed from liquid crystal polymer housing for durability. Phosphor bronze contacts plated with gold ensure excellent conductivity. Supports a current rating of 3.8 amperes and voltage up to 290 volts. Surface mount termination with straight orientation simplifies PCB assembly.
Operating temperature range spans from -55°C to 125°C for diverse environments. Compact pitch of 1.27 mm with 2.54 mm row pitch suitable for high-density PCB layouts. Compliant with RoHS standards for environmentally safe manufacturing.
Ideal for industrial, electronic, and telecommunications applications requiring reliable micro sockets. Explore more industrial and electronic components with Samtec PCB connectors and sockets at EnvMart.
Explore more products in our PCB Socket category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum voltage rating of 290 volts.
It has a current rating of 3.8 amperes.
The pitch is 1.27 mm, with a row pitch of 2.54 mm.
The housing is made from liquid crystal polymer, and the contacts are made of phosphor bronze plated with gold.
The operating temperature range spans from -55°C to +125°C.
This micro socket features 20 contacts arranged in 2 rows.
It uses surface mount termination with a straight orientation.
Yes, the micro socket is compliant with RoHS standards for environmentally safe manufacturing.
It is ideal for industrial, electronic, and telecommunications applications requiring reliable micro sockets.
The connector system is designed for board-to-board connections.
The country of origin for this product is India.
The contacts are plated with gold, ensuring excellent conductivity and corrosion resistance.
