Honeywell Technologies Piezoresistive Pressure Sensor Board 6 PIN DIP Package ABPDJNN001PDAA3

Free Delivery in India | Lowest Global Shipping Charges

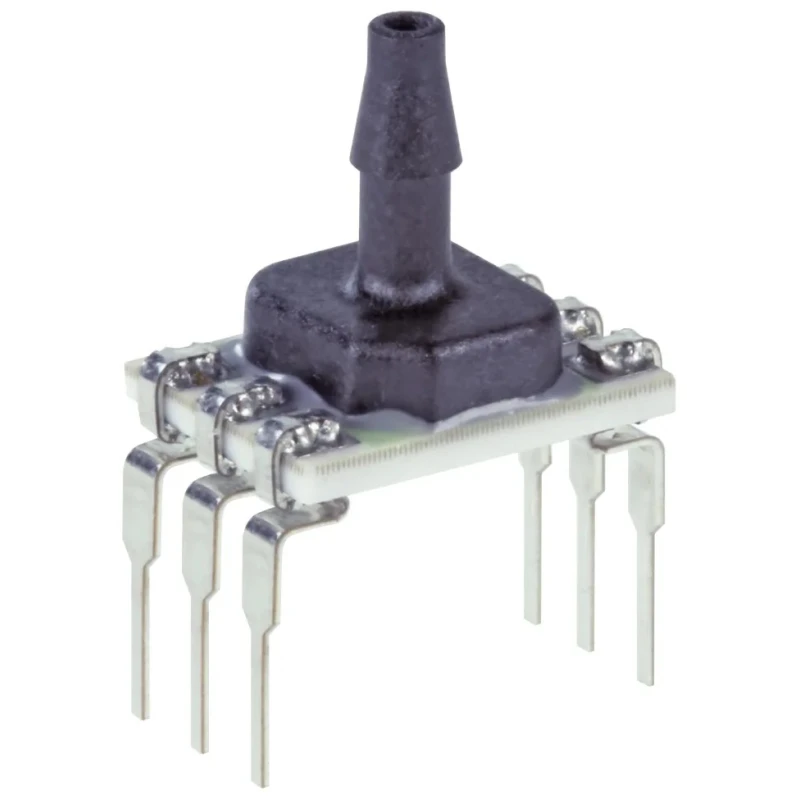

Honeywell Technologies Piezoresistive Pressure Sensor Board 6 PIN DIP Package ABPDJNN001PDAA3

Name: Honeywell Technologies Piezoresistive Pressure Sensor Board 6 PIN DIP Package ABPDJNN001PDAA3
Brand: Honeywell Technologies
SKU: 172059
Price: 50.67 USD
Availability: InStock



Category Pressure Sensor ICs Brand Honeywell Technologies Condition New

Specifications

Country of Origin	India
Accuracy	±0.25 %
Brand	Honeywell Technologies
Maximum Operating Pressure	6.89 kPa
Height	3.63mm
Length	7.3mm
Model	ABPDJNN001PDAA3
Sensor Type	Gauge Pressure Sensor
Width	6.3mm
Mount Type	Board
Series	ABP
Maximum Operating Temperature	85°C
Port Type	Single Radial Barbless
Package Type	DIP
Minimum Operating Temperature	-40°C
Standards/Approvals	BPA Free, LFGB, NSF-169
Pin Count	6
Automotive Standard	ISO 9001
Maximum Supply Voltage	5V
Minimum Supply Voltage	-0.3V
Minimum Operating Pressure	0psi
Maximum Overload Pressure	69kPa

Key Features

Operates at a maximum supply voltage of 5V with a minimum supply voltage of -0.3V.
Maximum operating pressure rated at 6.89 kPa with overload protection up to 69 kPa.
High accuracy with ±0.25% full scale span ensuring precise sensing.
Designed for board mounting with single radial barbless port type.
Wide operating temperature range from -40°C to 85°C for versatile application environments.
Compliant with BPA Free, LFGB, and NSF-169 standards for safe usage in food-contact scenarios.
Suitable for applications including CPAP devices, ventilator pressure monitoring, HVAC transmitters, and pneumatic controls.
Provides analogue or digital outputs compatible with I2C or SPI bus protocols.

Product Description

Honeywell Technologies ABPDJNN001PDAA3 is a piezoresistive pressure sensor board designed with a 6-pin DIP package, ideal for measuring gauge pressures accurately within gas or liquid environments. It delivers a ratiometric electronic signal suited for board-mounted measurement applications.

This sensor operates from a low voltage supply ranging from -0.3V to 5V and offers a maximum operating pressure of 6.89 kPa, with an overload protection up to 69 kPa. The device offers ±0.25% full-scale span accuracy and a total error band of ±1.5% FSS for worst-case error, ensuring reliable performance across applications.

The sensor includes a single radial barbless port type and is designed for board mounting, featuring a compact form factor with dimensions of 7.3 mm length, 6.3 mm width, and 3.63 mm height. Operating temperature ranges from -40°C to 85°C, supporting broad environment conditions.

Honeywell has certified the sensor materials for food-contact safety, complying with BPA Free, LFGB, and NSF-169 standards, making it excellent for applications such as medical ventilators, blood-pressure instruments, HVAC transmitters, coffee machines, and washing machine controls.

±0.25% FSS accuracy reduces measurement uncertainty. Operates on 3.3V or 5V supply voltage providing design flexibility. Calibrated output supports update rates up to 2kHz for digital applications. Sleep mode with microamp current draw ideal for battery-powered devices.

Long-term stability maintained with ±0.25% FSS after 1,000 hours at 25°C. Outputs support analogue ratiometric signals and 12-bit digital outputs compatible with I2C and SPI protocols. This sensor is widely used in industrial, laboratory, and medical sectors for precise pressure monitoring and control.
