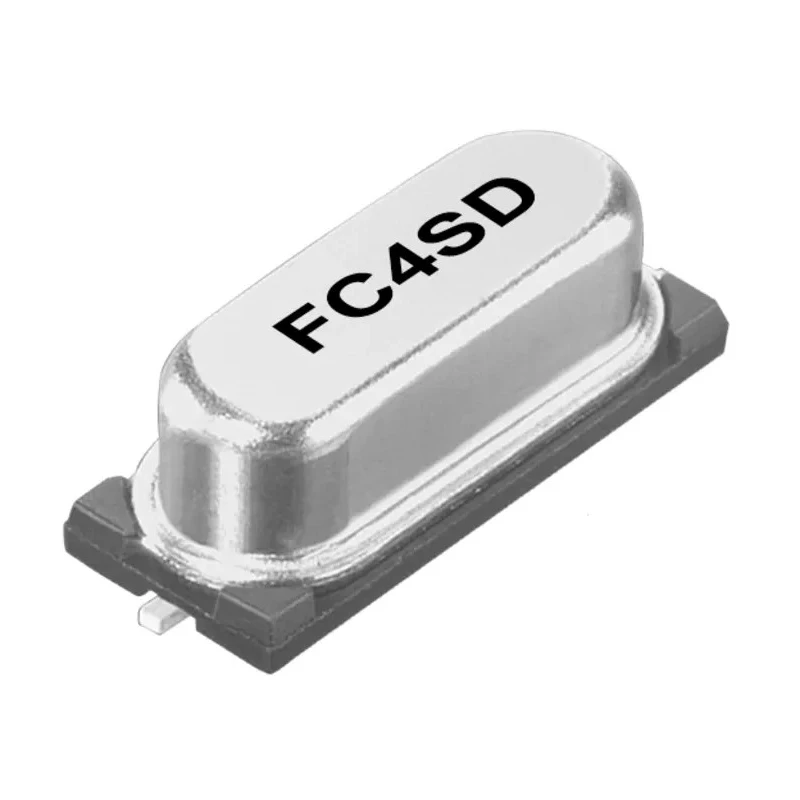

Abracon 4 MHz Crystal Surface Mount 2-Pin 20pF Load Capacitance ±30 ppm Tolerance FC4SDCBMM4.0-T1

Free Delivery in India | Lowest Global Shipping Charges

Abracon 4 MHz Crystal Surface Mount 2-Pin 20pF Load Capacitance ±30 ppm Tolerance FC4SDCBMM4.0-T1

Name: Abracon 4 MHz Crystal Surface Mount 2-Pin 20pF Load Capacitance ±30 ppm Tolerance FC4SDCBMM4.0-T1
Brand: Abracon
SKU: 171905
Price: 0.22 USD
Availability: InStock



Category Crystals, Oscillators & Resonators Brand Abracon Condition New

Specifications

Country of Origin	India
Brand	Abracon
Height	4.5mm
Length	13.5mm
Model	FC4SDCBMM4.0-T1
Packaging	Tape & Reel
Width	5mm
Mount Type	Surface
Series	FC4SD
Maximum Operating Temperature	70°C
Package Type	Surface Mount
Minimum Operating Temperature	-20°C
Standards/Approvals	RoHS
Pin Count	2
Standard Frequency	4MHz
Load Capacitance	20pF

Key Features

Standard frequency of 4 MHz ensures stable operation.
Surface mount package with 2 pins facilitates easy PCB integration.
Operating temperature range from -20°C to 70°C for reliable performance.
RoHS compliant construction supports environmental standards.
Packaging in tape and reel format is suitable for automated assembly.
Series FC4SD provides resistance welded seal for durability.
Termination finish includes Sn, Ag3.0, Cu0.5 for reliable electrical contact.

Product Description

The Abracon FC4SDCBMM4.0-T1 is a high precision 4 MHz crystal designed for surface mount technology applications. This 2-pin crystal unit offers a load capacitance of 20 pF and a frequency tolerance of ±30 ppm, optimized for stable oscillator circuits in electronic devices.

Measuring 13.5 mm in length, 5 mm in width, and 4.5 mm in height, this component fits compactly on printed circuit boards. It operates reliably across a broad temperature range from -20°C to 70°C, making it suitable for various environmental conditions within industrial and commercial electronic systems.

Constructed with a resistance weld seal and a termination finish composed of tin, silver (3.0%), and copper (0.5%), it ensures robust electrical connectivity and long service life. The crystal has a frequency stability of ±50 ppm, contributing to the precision timing required in telecommunications, computing, and instrumentation equipment.

This Abracon crystal is RoHS compliant, supporting environmentally responsible manufacturing practices. The packaging in tape and reel format is ideal for automated assembly lines, improving manufacturing efficiency.

Standard 4 MHz frequency with ±30 ppm tolerance ensures precise frequency generation. Compact surface mount 2-pin design enables easy integration in electronic assemblies. Temperature range supports operation from -20°C to 70°C for diverse applications.

Durable resistance welded seal construction provides mechanical stability. RoHS compliant design adheres to environmental regulations. Frequency stability of ±50 ppm maintains consistent performance. Tape and reel packaging suitable for surface mount manufacturing processes.

Termination finish with high-quality metal plating ensures reliable connections.

This crystal unit finds applications in industrial, telecommunications, instrumentation, and consumer electronic products requiring stable frequency references. Explore more from the Abracon FC4SD series for reliable surface mount crystal solutions.
