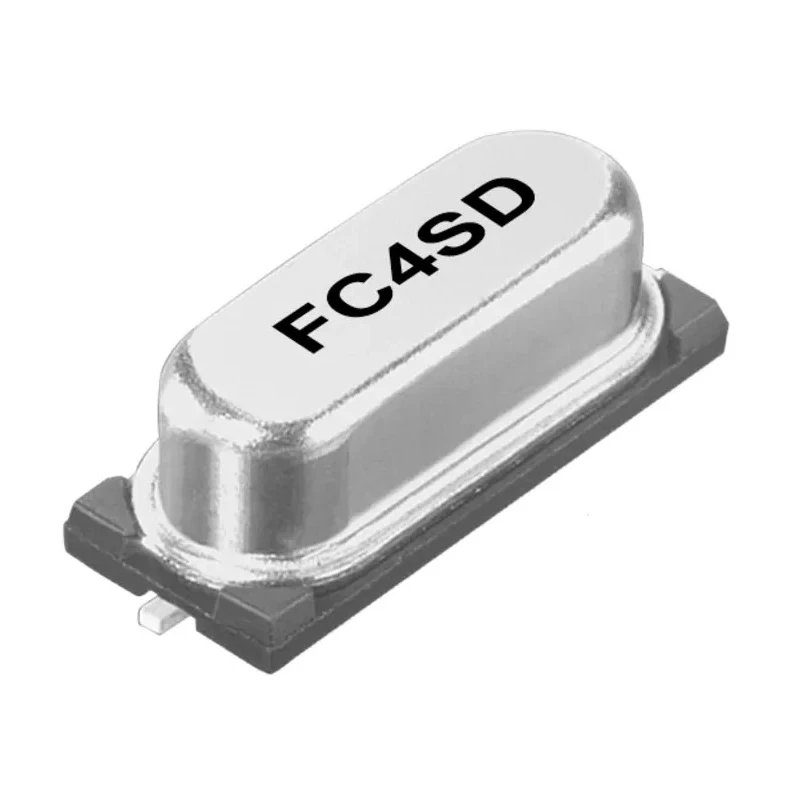

Abracon 8 MHz Crystal ±30 ppm Surface Mount 2-Pin 13.5 mm x 5 mm x 4.5 mm FC4SDCBMM8.0-T1

Abracon FC4SDCBMM8.0-T1 is an 8 MHz crystal oscillator designed for surface mounting with two pins, featuring a frequency tolerance of ±30 ppm. Its compact size of 13.5 mm length, 5 mm width, and 4.5 mm height makes it suitable for a wide range of electronic applications requiring reliable frequency references.

This crystal oscillator belongs to the FC4SD series and comes with a load capacitance of 20 pF, essential for stable oscillation in circuits. The device operates reliably within the temperature range of -20°C to 70°C and delivers a frequency stability of ±50 ppm, suitable for applications where precision timing is critical.

Manufactured with a resistance weld seal and a termination finish using Sn, Ag 3.0, and Cu 0.5 materials, this component ensures long-lasting performance and durability in surface mount technology assemblies. It is packaged in Tape & Reel format, facilitating automated assembly processes popular in industrial and commercial electronics manufacturing.

The product complies with RoHS standards, ensuring it meets current environmental directives for electronics components. Its 2-pin configuration enables easy integration onto printed circuit boards (PCBs) without compromising on compactness or performance.

Standard frequency of 8 MHz with ±30 ppm tolerance. Surface mount 2-pin package with Tape & Reel packaging. Load capacitance of 20 pF for circuit stability. Operating temperature range from -20°C to 70°C for versatility.

Compact dimensions suitable for space constrained designs. RoHS compliant, meeting environmental standards. Resistance weld seal ensures long-term reliability. Frequency stability of ±50 ppm for precise timing.

This Abracon 8 MHz crystal unit is ideal for electronic circuit designs in industrial, commercial, and consumer electronics where stable and accurate frequency sources are required, including oscillators, microcontroller clock sources, and frequency generation modules.
