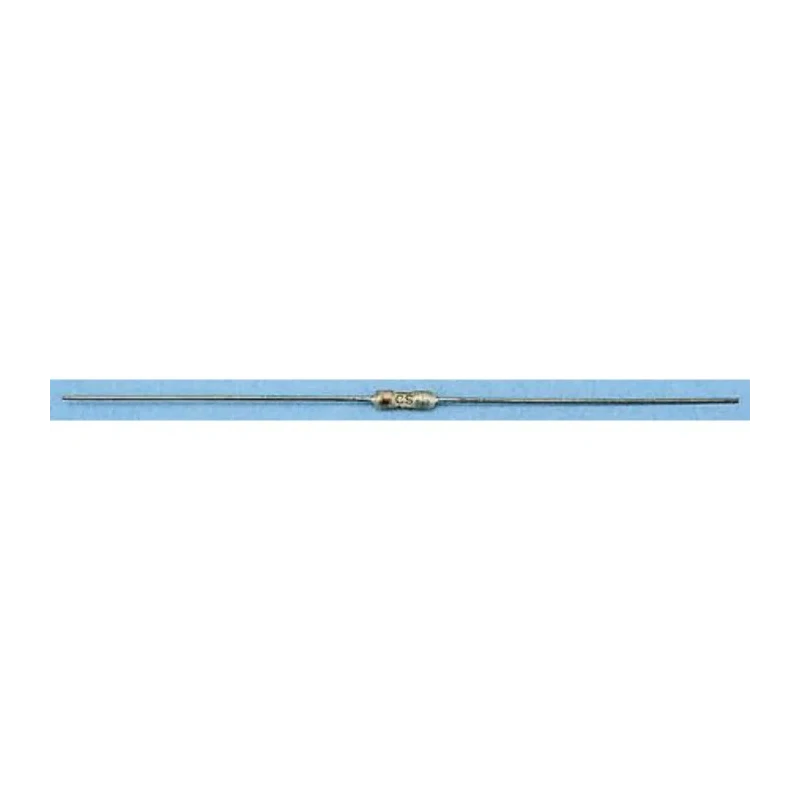

Schurter Non-Resettable Axial Fuse 5A 125 V AC/DC Ceramic Body 172322 Series 7010.7130.13

Schurter 7010.7130.13 Non-Resettable Axial Fuse 5A 125 V AC/DC features a robust ceramic body and axial lead orientation designed for direct solder mounting on printed circuit boards.

This fast-acting fuse provides critical overcurrent protection with a breaking capacity of 50A and operates reliably in temperatures from -55°C to 85°C. Its compact dimensions (2.36 mm diameter, 8 mm length) and 86 mm lead length offer ease of integration into compact electronic assemblies.

The fuse is compliant with internationally recognized CSA and UL standards, ensuring product reliability and safety for industrial, commercial, and electrical engineering applications.

Its design follows IEC 172322 series minifuses, featuring a ceramic tube with clear insulating sleeve and thermoplastic polyamide bodies to deliver superior durability and electrical insulation.

Axial oriented fuse with 5 ampere current rating for reliable circuit protection. Ceramic body ensures high breaking capacity up to 50A. Fast acting fuse characteristic suitable for sensitive electronics protection. Compact size with 2.36 mm diameter and 8 mm length for efficient board space usage.

Operates within -55°C to 85°C temperature range for versatile environment suitability. Compliant with CSA and UL standards ensuring safety and quality assurance. Leads sized 0.82 mm diameter and 86 mm length for easy soldering on PCB.

Designed according to IEC standard 172322 series minifuses for industrial and commercial applications.

This Schurter fuse is ideal for use in industrial automation, electrical equipment, circuit protection, and manufacturing sectors requiring high-performance non-resettable axial fuses.
