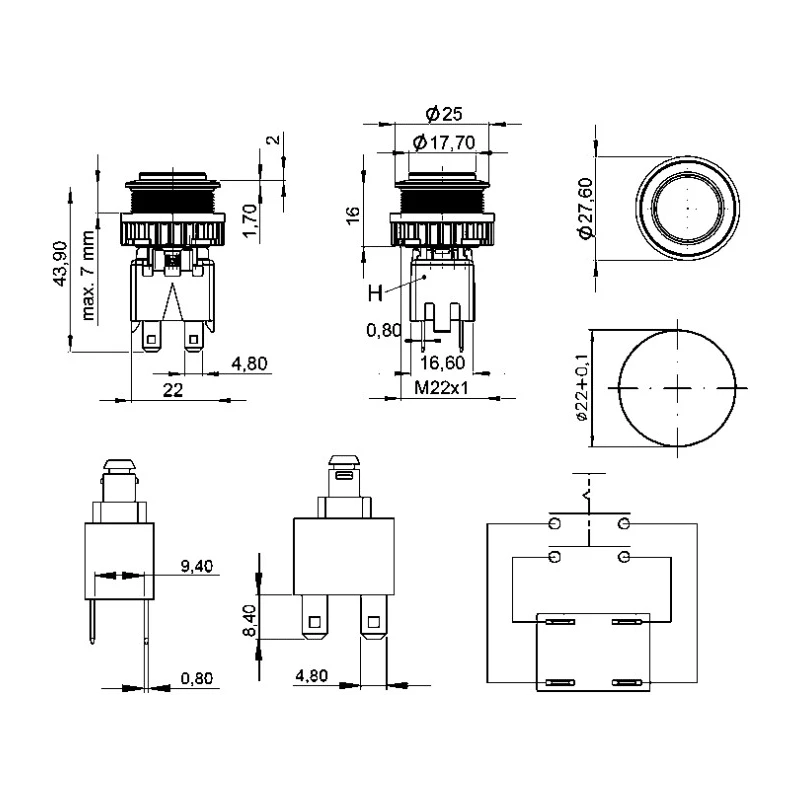

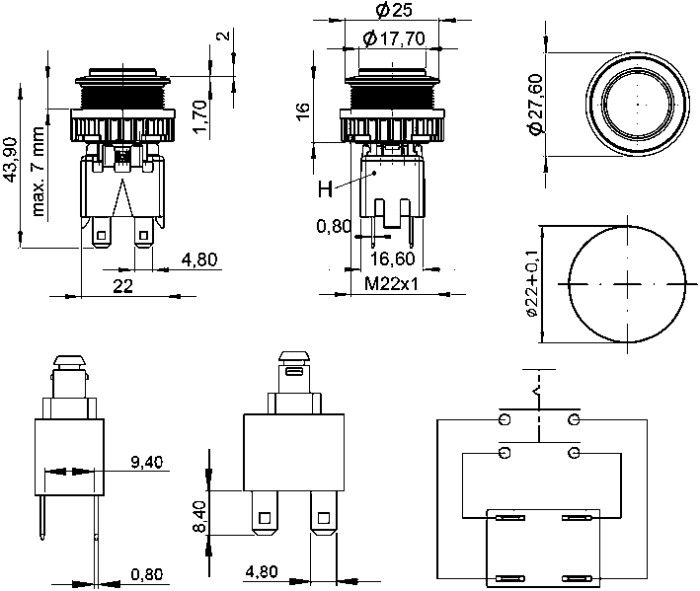

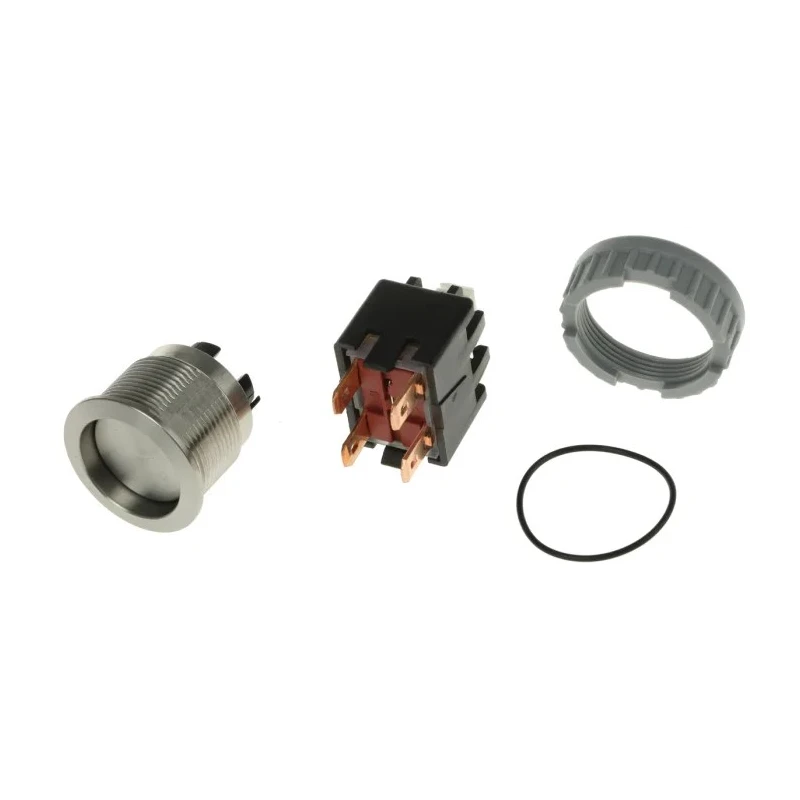

Schurter MSM LA 22 Series Push Button Switch Latching Panel 22 mm Cutout DPDT RGB LED IP00 IP64 125 V dc 1241.6831.1120000
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schurter |
| IP Rating | IP00, IP64 |
| Mount Type | Panel |
| Series | MSM LA 22 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -20°C |
| Panel Cutout Size | 22 mm |
| Terminal type | Tab |
| Standards/Approvals | RoHS, IEC, CSA, UL |
| LED Colour | Blue, Green, Red |
| Switch Operation | Latching |
| Actuator Colour | Natural |
| Contact DC Voltage | 125V dc |
| Actuator Style | Button |
| Switch Contact Current | 12A |
| Contact AC Voltage | 250V ac |
Key Features
- The actuator has a natural color and button style design for easy operation.
- It features an IP00 and IP64 rating for dust and splash resistance with an IK07 shock resistance standard.
- The switch is suitable for harsh industrial environments with a temperature range from -20°C to 85°C.
- The contact current rating is 12A, supporting reliable electrical switching performance.
- Quick connect terminals ensure easy installation and maintenance.
- Switching status is optically visible with a 180° viewing angle on illuminated versions.
- The switch is compliant with RoHS, IEC, CSA, and UL standards for safety and environmental protection.
- It offers up to 150,000 mechanical operations ensuring extended durability.
Product Description
Schurter 1241.6831.1120000 is part of the MSM LA 22 Series push button switches designed for panel mounting and latching operation. This device features a 22 mm cutout and a DPDT contact configuration with colorful RGB LED illumination options in blue, green, and red. It operates within voltage limits of 125 V dc and 250 V ac, making it versatile for a range of electrical and industrial applications.
The switch has a natural-colored button actuator style, engineered for durability and comfort during operation. It is constructed to withstand harsh environments with an IP64 sealed stainless steel housing and offers IK07 shock resistance according to DIN EN 50102, which ensures reliability against mechanical impacts.
Operational temperatures range from -20°C to 85°C, allowing it to work in diverse industrial and commercial settings. The device supports a contact current of 12A and features quick connect tab terminals for ease of integration into electrical systems.
With a long mechanical life of up to 150,000 operations, the Schurter MSM LA 22 Series provides robust performance for control panels in manufacturing, HVAC, automation, and other industrial sectors. The switch's illuminated viewing angle of 180° offers clear visual indication of switching status, enhancing usability and safety.
Compliance with RoHS, IEC, CSA, and UL certifications assures adherence to international safety and environmental standards. Point illuminated types require suitable series resistors, while ring illuminated types incorporate resistors for operation at 24V dc.
The actuator is designed with 10N operating force and 4.5mm travel, protruding 3.7mm above the panel. Ideal for industrial, laboratory, construction, and automation system applications. Robust housing and latching mechanism for reliable control interfaces.
Schurter products are recognized for quality and durability. Explore our Electronics & Electricals catalog for more Push Button Switch solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 12A, supporting reliable electrical switching performance.
It operates within a temperature range from -20°C to 85°C, making it suitable for diverse industrial environments.
This switch features an IP00 and IP64 rating, providing dust and splash resistance for various applications.
The required panel cutout size for installation is 22 mm.
It features quick connect tab terminals, which facilitate easy installation and maintenance.
The contact configuration of this push button switch is DPDT (Double Pole Double Throw).
The RGB LED illumination options available for this model include blue, green, and red.
It is compliant with RoHS, IEC, CSA, and UL standards for safety and environmental protection.
The switch offers a mechanical life of up to 150,000 operations, ensuring extended usability.
The actuator style is a button, and it has a natural color design for easy operation.
This switch has an IK07 shock resistance rating according to DIN EN 50102, ensuring reliability against mechanical impacts.
The actuator has an operating force of 10N and a travel distance of 4.5mm, protruding 3.7mm above the panel.
