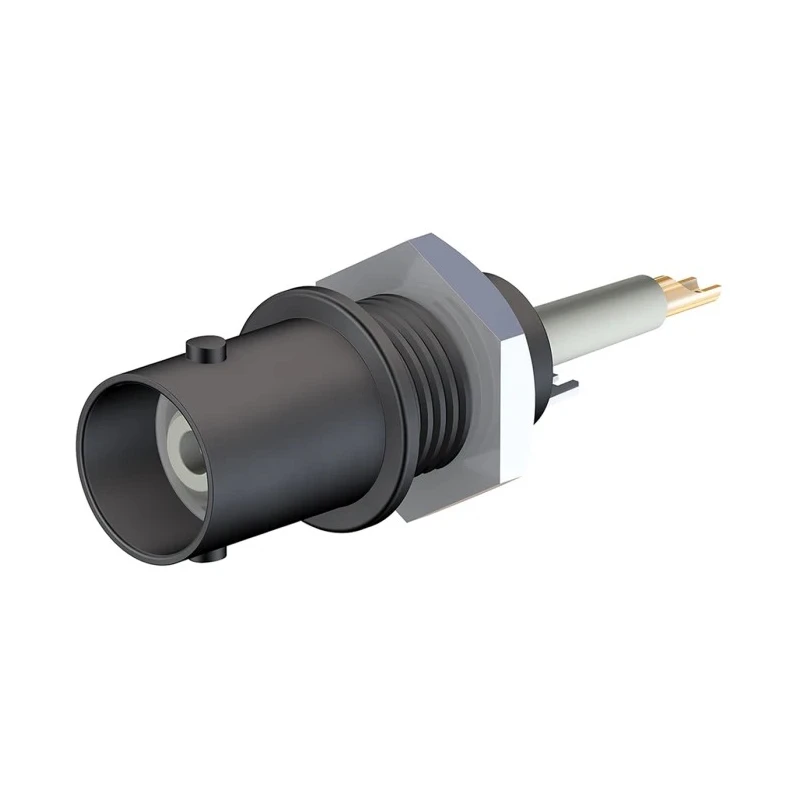

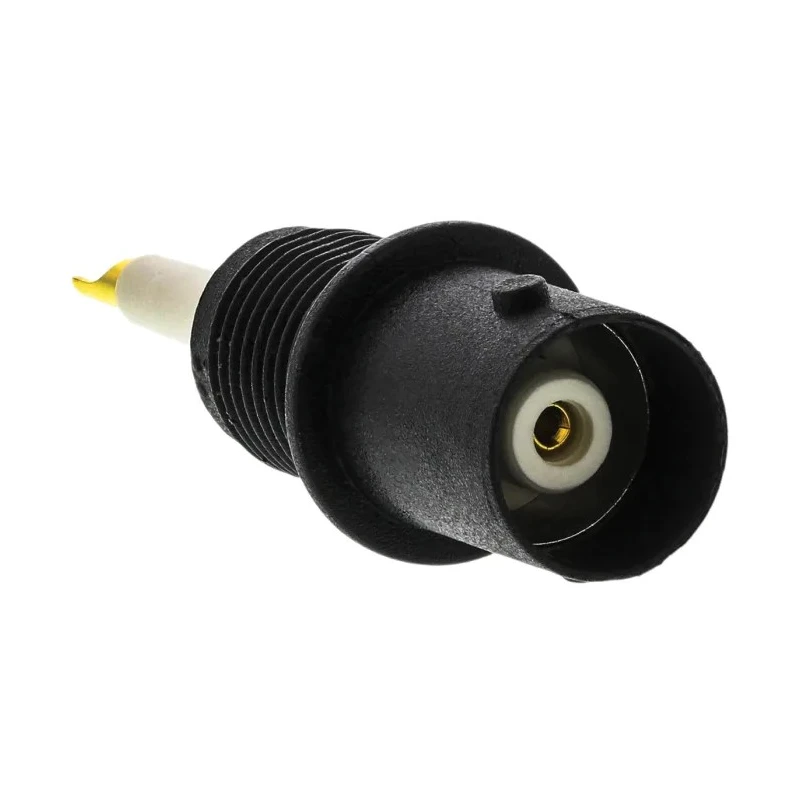

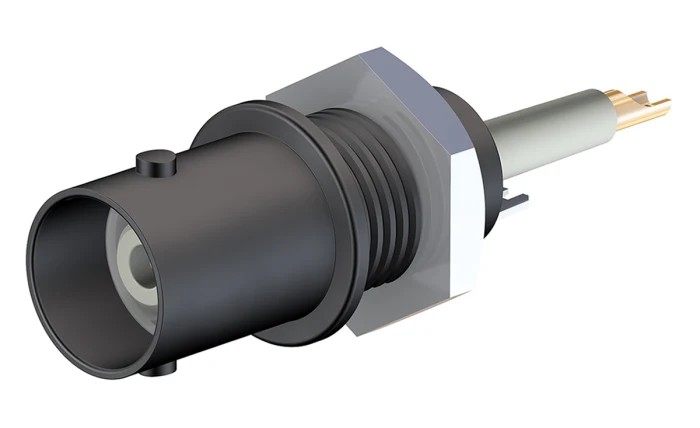

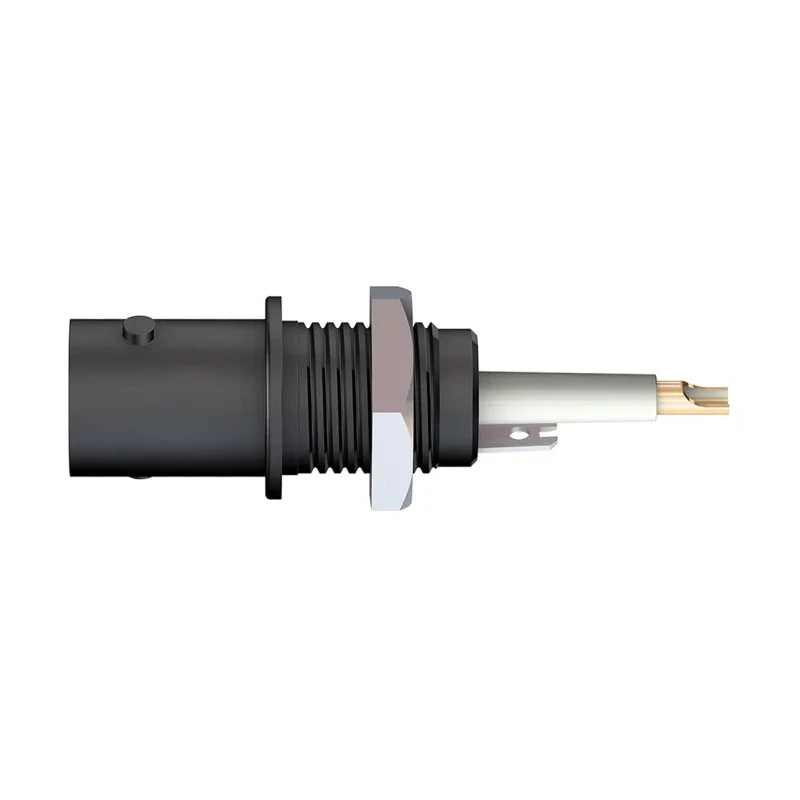

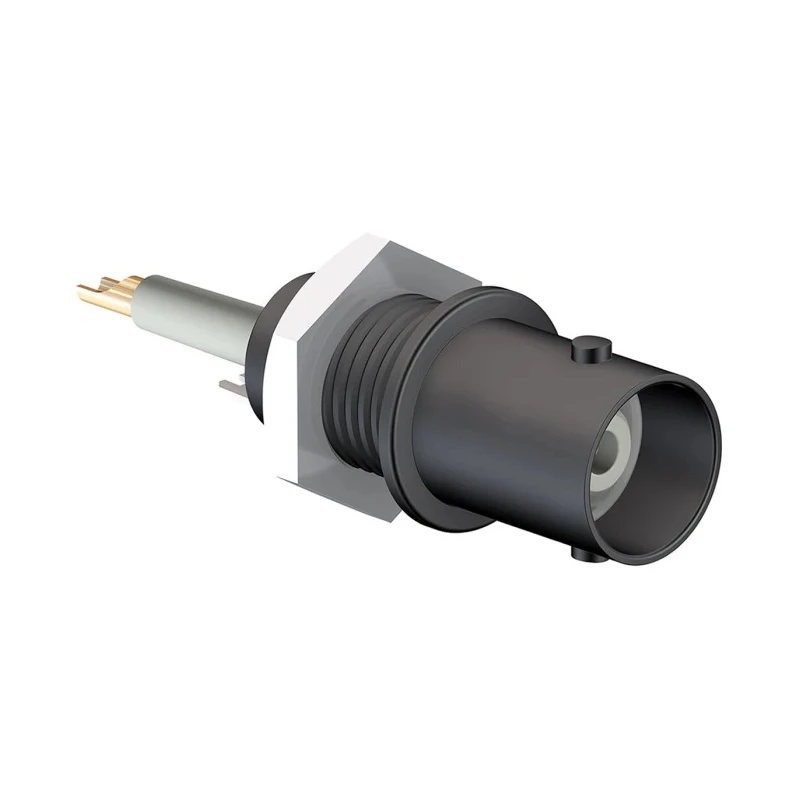

Staubli BNC Series Coaxial Connector Panel Mount Female BNC, Straight Body Solder 67.9764-21
Specifications
| Country of Origin | Germany |
|---|---|
| Size | Standard |
| Brand | Staubli |
| Orientation | Straight |
| Mount Type | Panel Mount |
| Operating Frequency | 1.5GHz |
| Contact Material | Brass |
| Series | BNC |
| Termination Type | Solder |
| Maximum Operating Temperature | 40°C |
| Minimum Operating Temperature | 5°C |
| Polarity | Normal |
| Contact Plating | Gold |
| Contact Gender | Female |
| Connector Gender | Female |
| Coaxial Connector Type | BNC |
| Body Plating | Nickel Plated |
Key Features
- Fully insulated and touch-protected 50 Ohm RF coaxial panel mount socket.
- Nickel-plated body with gold-plated brass contacts ensures durability and excellent conductivity.
- Suitable for operating temperatures between 5°C and 40°C.
- Mounts easily into pre-drilled panels with a Whitworth pipe thread Rp 1/8".
- Maintains normal polarity and standard sizing for compatibility with industry-standard connectors.
- Ideal for industrial, laboratory, and communication system applications.
Product Description
Staubli 67.9764-21 BNC Series Coaxial Connector is a fully insulated, touch-protected 50 Ohm RF coaxial panel mount socket connector designed for high-reliability applications. Featuring a female BNC connector gender in a straight body configuration, this panel mount connector features solder termination for secure and robust cable connection.
The connector body is nickel plated for enhanced corrosion resistance, while the brass contacts have gold plating ensuring optimal signal integrity and low contact resistance. It is engineered to operate reliably within temperature ranges from 5°C to 40°C, catering to a variety of environmental conditions.
This model is designed with a WHITWORTH PIPE THREAD Rp 1/8" specification, making it suitable for mounting into standard pre-drilled panels as a bulkhead connector. It supports an operating frequency up to 1.5 GHz, ideal for RF coaxial signal transmission in industrial equipment, laboratory instrumentation, telecom infrastructure, and communication systems.
The connector maintains standard size and polarity, ensuring compatibility with a broad range of BNC connectors and assemblies. Its fully insulated and touch-protected design reduces the risk of accidental contact or shorts, promoting safe handling during installation and maintenance.
Fully insulated 50 Ohm BNC RF coaxial panel mount socket for reliable signal transmission. Nickel-plated shield and gold-plated brass contacts offer durability and performance. Solder termination type ensures secure cable connections.
Compact standard size with Whitworth pipe thread Rp 1/8" for easy panel mounting. Operating frequency up to 1.5 GHz for versatile RF applications. Operating temperature range from 5°C to 40°C allows use in varied environments.
This Coaxial Connector is manufactured in Germany and built for applications requiring high-quality and consistent RF connections. Its robust mechanical design and high electrical performance make it suitable for usage in industrial, laboratory, telecom, and commercial electronics fields.
Explore the Electronics Components category at EnvMart for a wide range of precision connectors including BNC series and other coaxial solutions from trusted brands like Staubli.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating frequency of this model is up to 1.5 GHz, making it suitable for RF coaxial signal transmission.
It operates reliably within a temperature range of 5°C to 40°C.
This model features a solder termination type, ensuring secure and robust cable connections.
The connector body is nickel-plated, which enhances its corrosion resistance.
It is designed for panel mounting and features a Whitworth pipe thread Rp 1/8" for easy installation into pre-drilled panels.
The contacts are made of brass and are gold-plated to ensure optimal signal integrity and low contact resistance.
This model has a female BNC connector gender.
This connector is manufactured in Germany.
Yes, it maintains normal polarity and standard sizing for compatibility with industry-standard BNC connectors and assemblies.
It is suitable for industrial, laboratory, and communication system applications requiring reliable RF connections.
It is designed in a standard size for ease of use and compatibility with existing setups.
The contacts are gold-plated, which helps in maintaining low contact resistance and optimal performance.
