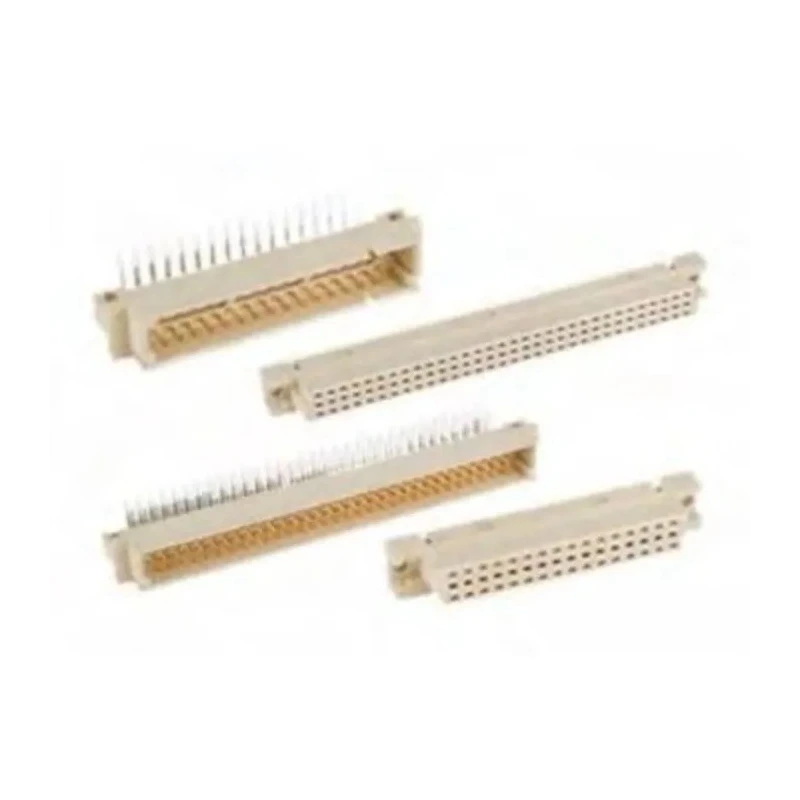

Amphenol Communications Solutions DIN 41612 Connector 64 Way 2.54 mm Pitch Type C Press Fit 2 Row Male 86094647194755E1LF
Specifications
| Country of Origin | India |
|---|---|
| Brand | Amphenol Communications Solutions |
| Orientation | Right Angle |
| Current | 1.5A |
| Model | 86094647194755E1LF |
| Housing Material | Polyester Thermoplastic |
| Contact Material | Copper Alloy |
| Series | DIN 41612 |
| Termination Type | Press Fit |
| Maximum Operating Temperature | 125°C |
| Sub Type | C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Number of Contacts | 64 |
| Contact Gender | Male |
| Connector Gender | Male |
| Maximum Contact Resistance | 20mΩ |
| Row Loading | A/C |
Key Features
- Features a Type C, press fit termination for reliable mounting.
- Right angle male connector designed for compact installations.
- Rated for a voltage of 1000 Vrms and a current carrying capacity of 1.5 A.
- Constructed with copper alloy contacts and polyester thermoplastic housing for durability.
- Operates within a temperature range of -55°C to 125°C for broad environmental conditions.
- Meets industry standards including EN45545-2, IEC 603-2, DIN 41612, and UL certifications.
- Provides a maximum contact resistance of 20 mΩ ensuring signal integrity.
- Manufactured in India, ensuring quality compliance and availability.
Product Description
Amphenol Communications Solutions 86094647194755E1LF DIN 41612 Connector is a highly reliable backplane connector system conforming to IEC 603-2 standards. It is widely used in industrial electronic applications requiring robust board-to-board interconnections.
This connector features 64 contacts arranged in 2 rows with a 2.54 mm pitch, providing a compact and efficient connection interface. The Type C press fit termination offers secure mechanical and electrical engagement ideal for signal and power delivery up to 1.5 A and 1000 Vrms.
Constructed with copper alloy contacts for excellent conductivity and low resistance, the connector housing is made of polyester thermoplastic material, ensuring durability and resistance to mechanical stress and environmental factors. It is rated for operating temperatures from -55°C to 125°C, suitable for a wide range of industrial environments.
The right angle male orientation supports space-saving PCB designs and easier assembly in demanding applications. Compliance with multiple international standards such as EN45545-2 for fire safety, IEC 603-2, and UL ensures this connector meets high safety and performance benchmarks.
Type C configuration with selective loading pattern for optimized connector performance. Press fit termination for solderless assembly and improved reliability. Wide range of accessories available for flexible integration.
Suitable for industrial, electronic component manufacturing, power connector, and backplane applications. Manufactured in India guaranteeing quality and supply consistency. Explore the full range of Amphenol Communications Solutions DIN 41612 Connectors and accessories on EnvMart for your industrial connectivity requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a current carrying capacity of 1.5 A, making it suitable for various industrial applications.
This connector operates within a temperature range of -55°C to 125°C, allowing it to function in diverse environmental conditions.
It features 64 contacts arranged in 2 rows, providing efficient connectivity for board-to-board interconnections.
The pitch size of this model is 2.54 mm, which is standard for many DIN connectors.
It is constructed with copper alloy contacts and a polyester thermoplastic housing, ensuring durability and reliable performance.
This model features a press fit termination, which allows for solderless assembly and improved reliability.
It meets multiple international standards including EN45545-2, IEC 603-2, and UL certifications, ensuring high safety and performance benchmarks.
It has a right angle orientation, which supports space-saving PCB designs and easier assembly in compact installations.
The maximum contact resistance is 20 mΩ, which helps ensure signal integrity during operation.
It is manufactured in India, ensuring quality compliance and availability for users.
This connector is suitable for industrial applications, electronic component manufacturing, power connectors, and backplane applications.
This connector features a male connector gender, which is standard for many interconnection applications.
