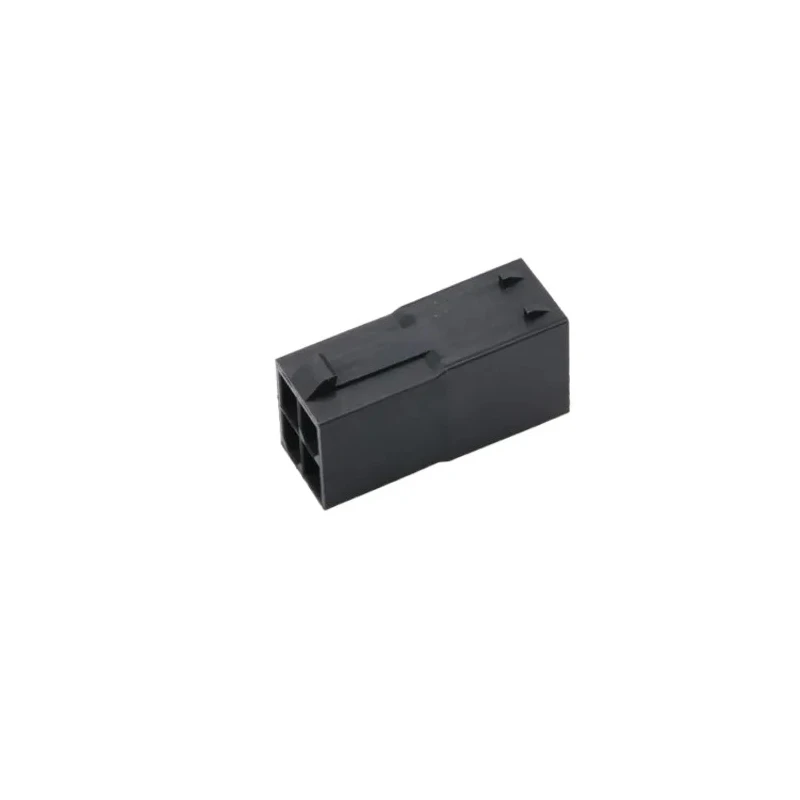

Molex 4 Way Nylon Connector Housing, Black, Plug Type, 26mm Length, 24 to 16 AWG Wire Size 172762-1004
Specifications
| Country of Origin | United States |
|---|---|
| Brand | Molex |
| Colour | Black |
| Body Material | Nylon |
| Length | 26mm |
| Connector Type | Plug |
| Series | 172762 |
| Number of Contacts | 4 |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 16AWG |
Key Features
- Constructed from durable nylon material for strength and electrical insulation.
- Supports wire sizes ranging from 24 AWG to 16 AWG for flexible connectivity.
- Features 4 contacts with a 4.20mm pitch in a dual row configuration.
- Includes a secure locking mechanism to prevent accidental disconnections.
- Operates reliably in temperatures ranging from -40°C to +105°C.
- Designed for wire-to-wire and wire-to-board power connections in electronic devices.
- Compatible with Mini-Fit TPA2/Sigma male terminals for efficient circuitry integration.
- UL 94V-0 rated for high flammability resistance ensuring safety in electrical applications.
Product Description
Molex 172762-1004 4 Way Nylon Connector Housing is a robust plug connector housing designed for reliable power connections in various electronic and industrial applications. Made of durable nylon, this connector housing ensures both mechanical strength and excellent electrical insulation properties.
Measuring 26mm in length and configured with 4 contacts spaced at a 4.20mm pitch in a dual-row layout, it efficiently supports wire sizes from 24 AWG to 16 AWG, enabling versatile wiring setups in automation equipment and electronic devices. The straight plug design incorporates a locking mechanism that securely mates with compatible receptacle housings, preventing accidental disconnection during operation.
This connector housing operates effectively within a temperature range of -40°C to +105°C, making it suitable for demanding environments. It complies with UL 94V-0 standards for flammability resistance, which enhances safety in power distribution and electronic circuitry.
The Molex 172762 series connector housing is widely used in applications requiring dependable wire-to-wire and wire-to-board power connections. It is specifically engineered to pair with Mini-Fit TPA2/Sigma male terminals, supporting secure and efficient electrical circuits.
Durable nylon construction for mechanical strength and electrical insulation. 4 contacts with 4.20mm pitch in a compact dual-row arrangement. Secure locking mechanism ensures stable connections. Supports wire sizes from 24 AWG to 16 AWG for flexible wiring.
Reliable operation from -40°C to +105°C for wide temperature environments. UL 94V-0 flammability rating for enhanced safety compliance. Ideal for automation, electronic devices, and power distribution applications.
Choose Molex 172762-1004 Connector Housing for industrial, laboratory, and commercial electronics requiring robust and reliable power connections. Browse the Electronics Components categories on EnvMart for compatible connectors and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The length of this connector housing is 26mm.
It supports wire sizes ranging from 24 AWG to 16 AWG.
This connector housing operates reliably in temperatures ranging from -40°C to +105°C.
It features 4 contacts arranged in a dual-row configuration.
The housing is constructed from durable nylon material, providing strength and electrical insulation.
It includes a secure locking mechanism to prevent accidental disconnections during operation.
It is designed to be compatible with Mini-Fit TPA2/Sigma male terminals for efficient circuitry integration.
It is UL 94V-0 rated for high flammability resistance, ensuring safety in electrical applications.
It is suitable for wire-to-wire and wire-to-board power connections in various electronic devices and automation equipment.
The contacts are spaced at a pitch of 4.20mm.
The country of origin for this connector housing is the United States.
It is a plug type connector housing designed for reliable power connections.
