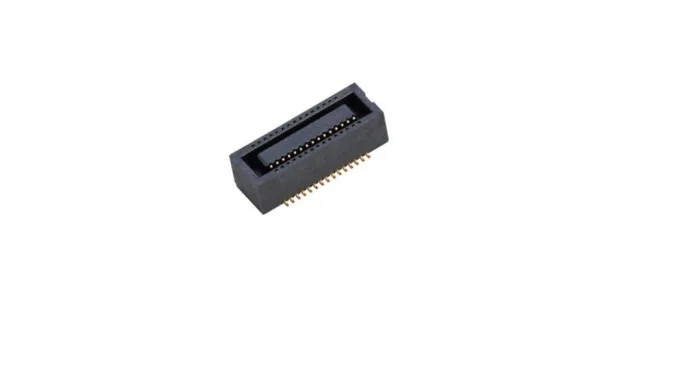

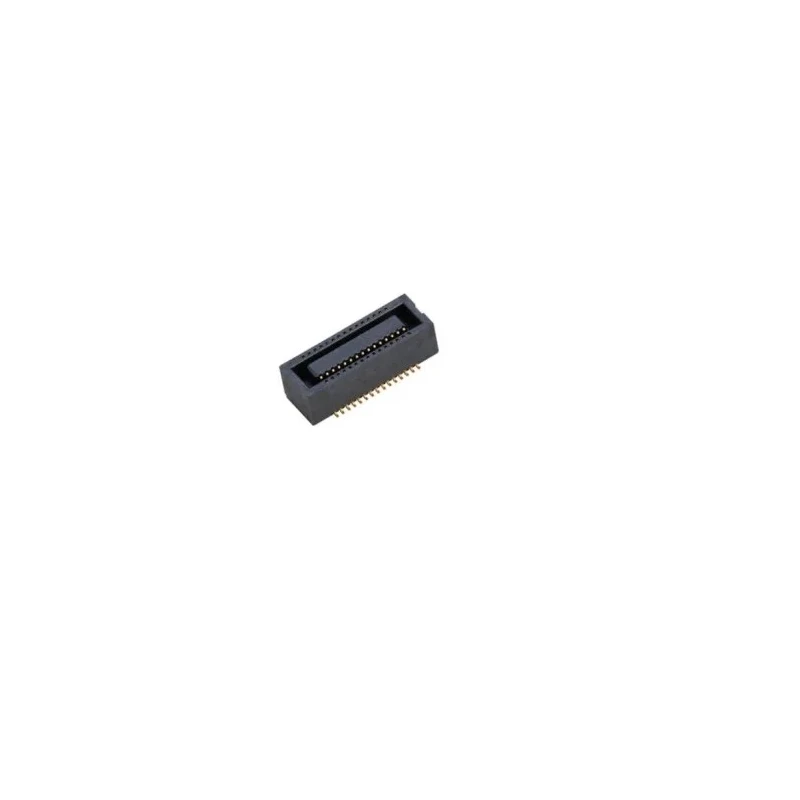

Amphenol Communications Solutions BergStak Series Vertical PCB Socket 30-Contact 2 Row 0.4mm Pitch 10142890-030A3EHLF
Specifications
| Country of Origin | China |
|---|---|
| Brand | Amphenol Communications Solutions |
| Orientation | Vertical |
| Model | 10142890-030A3EHLF |
| Mount Type | PCB |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Copper |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Sub Type | Vertical Receptacle |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.4mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 30 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Stacking Height | 3.5mm |
| Row Pitch | 3.08mm |
Key Features
- The connector features a vertical receptacle with a 3.5 mm stacking height.
- Constructed using liquid crystal polymer housing for durability and performance.
- Supports board-to-board connector system ensuring reliable electrical connections.
- Contact plating is gold over nickel for enhanced conductivity and corrosion resistance.
- Operates reliably within a temperature range of -40°C to 125°C.
- Offers female contact gender optimized for secure mating with compatible connectors.
- Self-alignment feature supports blind mating for ease of assembly.
- Rated for speed performance up to 8 Gb/s, suitable for high-speed data transfer.
Product Description
Amphenol Communications Solutions 10142890-030A3EHLF is a BergStak Series vertical PCB socket designed for high reliability board-to-board connections. Featuring a 30-contact, 2-row configuration with a fine 0.4 mm pitch, this surface mount socket enables compact and efficient PCB design.
The connector housing is made of liquid crystal polymer, providing excellent mechanical stability and resistance to harsh operating environments. Its female copper contacts are plated with gold over nickel, ensuring high electrical conductivity and corrosion resistance.
This product supports a stacking height of 3.5 mm and a row pitch of 3.08 mm, optimized for tight board spacing. It operates over a wide temperature range from -40°C to 125°C, making it suitable for demanding industrial and automotive applications.
The unique self-alignment feature facilitates blind mating, reducing assembly errors and improving connection reliability. Designed to meet USCAR-2 standards, it withstands vibration and shock stresses commonly encountered in automotive markets.
This connector supports data speeds up to 8 Gb/s, ideal for high-speed communication in electronic systems including industrial, automotive, and communication equipment. The connector includes 30 female contacts arranged in 2 rows.
Housing material is liquid crystal polymer. Contact plating is gold over nickel. Compatible with surface mount PCB mounting. Designed for vertical orientation and board-to-board connector systems. Meets operating temperatures from -40°C to 125°C.
Compliant with USCAR-2 vibration and shock limits.
This BergStak series connector from Amphenol Communications Solutions provides a dependable and compact solution for PCB interconnections. Explore the Electronics Components category on EnvMart for more PCB sockets and connectors optimized for your industrial and automotive applications.
Explore more products in our Electronic Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 30-contact configuration arranged in 2 rows with a 0.4 mm pitch.
The maximum operating temperature for this connector is 125°C.
The housing is constructed from liquid crystal polymer, providing mechanical stability and resistance to harsh environments.
It utilizes surface mount termination for PCB mounting.
The stacking height of this connector is 3.5 mm, allowing for compact board designs.
This model is rated for data speeds up to 8 Gb/s, making it suitable for high-speed data transfer applications.
It operates reliably within a temperature range of -40°C to 125°C.
This connector supports a board-to-board connector system, ensuring reliable electrical connections.
The contacts are plated with gold over nickel, which enhances conductivity and corrosion resistance.
Yes, it includes a self-alignment feature that supports blind mating for ease of assembly.
Yes, it is designed to meet USCAR-2 standards, which address vibration and shock limits in automotive applications.
The connector features female contacts, optimized for secure mating with compatible connectors.
