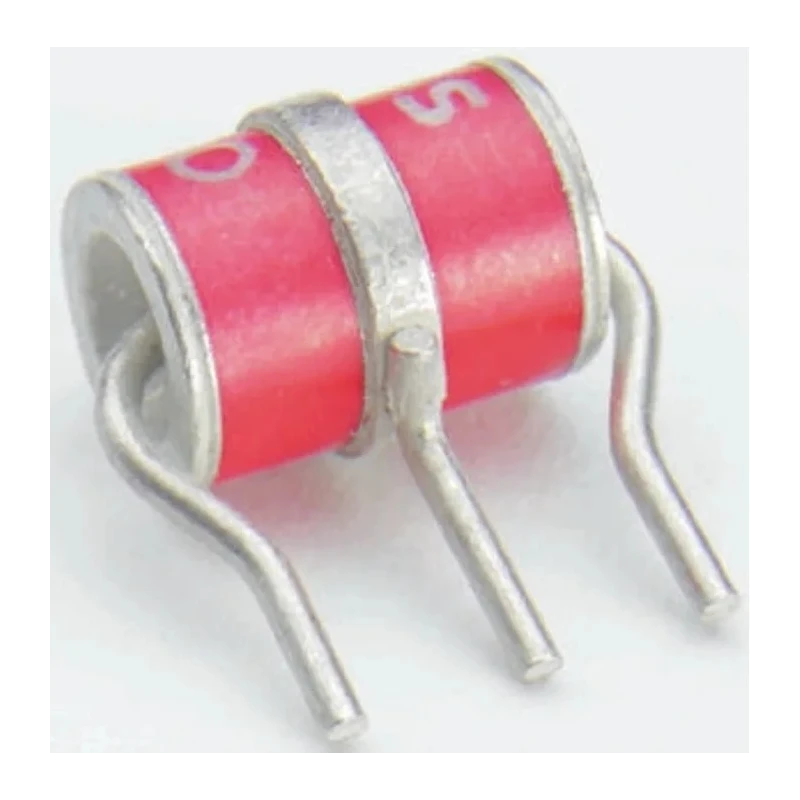

TDK Surge Suppressor Unit 3 Pole Arrester 350V dc Maximum Voltage Rating 25kA Maximum Surge Current B88069X7200B502



Category Surge Suppressor Unit Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	10.5mm
Length	13.4mm
Model	B88069X7200B502
Depth	8mm
Mount Type	Through Hole
Series	B88069X
Maximum Operating Temperature	90°C
Minimum Operating Temperature	-40°C
Suppressor Type	3 Pole Arrester
Maximum Voltage	350V dc
Standards/Approvals	IEC 61643-311
Lead Pitch	4.4mm
Maximum Surge Current	25kA

Key Features

Compact through hole mounted design suitable for telecommunication and electronic equipment.
Maximum operating temperature of 90°C and minimum operating temperature of -40°C for reliable performance in diverse environments.
Lead pitch of 4.4 mm ensures compatibility with standard PCB layouts.
Compliant with IEC 61643-311 standards ensuring international quality and safety.
Designed to protect equipment from voltage surges and transient overvoltages effectively.
Miniature form factor with dimensions 13.4 mm length, 10.5 mm height, and 8 mm depth.
Ideal for use in telecommunication exchange main distribution frames and subscriber-end equipment.

Product Description

TDK B88069X7200B502 Surge Suppressor Unit is a high-quality miniature gas filled 3-electrode arrester designed for protecting sensitive electronic and telecommunication equipment from transient voltage surges. This unit features a maximum DC voltage rating of 350V and can safely handle surge currents up to 25kA, making it reliable for harsh electrical environments.

The suppressor is mounted using a through hole technique with a lead pitch of 4.4mm, facilitating easy integration into printed circuit boards. This product operates reliably within a temperature range of -40°C to 90°C, ensuring consistent performance across various industrial, telecommunication, and electronic applications.

Measuring 13.4 mm in length, 10.5 mm in height, and 8 mm in depth, the compact size is ideal for space-constrained installations. The surge suppressor is manufactured to comply with the IEC 61643-311 standard, guaranteeing adherence to internationally recognized electrical safety and quality norms.

Common use cases include telecommunication exchange main distribution frames, subscriber-end equipment surge protection, and other industrial scenarios where short-duration high-energy transient voltage suppression is critical. This robust device ensures longevity and protection for sensitive electronic circuits against voltage spikes caused by lightning and switching events.

Compact through hole mounted design suitable for telecommunication and electronic equipment. Maximum operating temperature of 90°C and minimum operating temperature of -40°C for reliable performance in diverse environments.

Lead pitch of 4.4 mm ensures compatibility with standard PCB layouts. Compliant with IEC 61643-311 standards ensuring international quality and safety. Designed to protect equipment from voltage surges and transient overvoltages effectively.

Miniature form factor with dimensions 13.4 mm length, 10.5 mm height, and 8 mm depth. Ideal for use in telecommunication exchange main distribution frames and subscriber-end equipment. Explore a wide range of Surge Suppressor Units at EnvMart designed to meet industrial and commercial electrical protection requirements.
