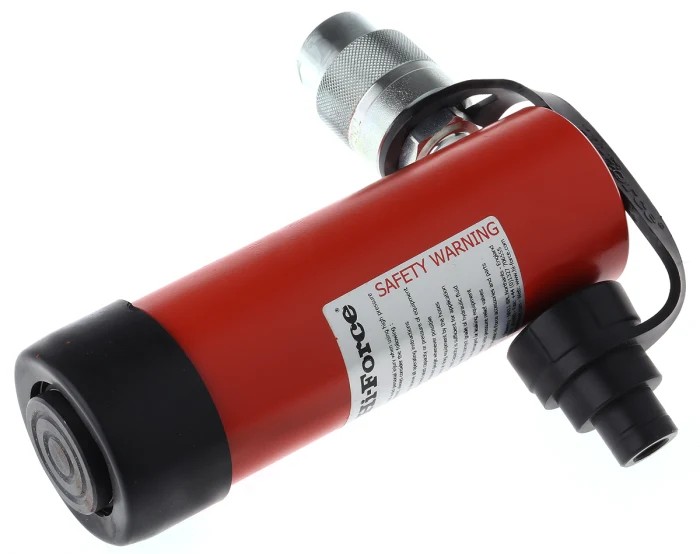

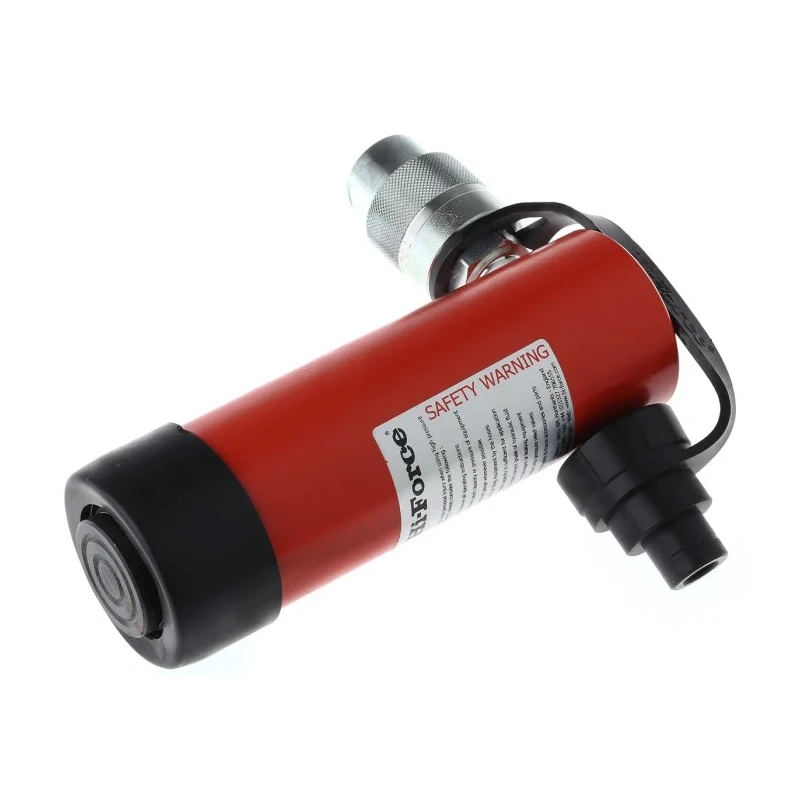

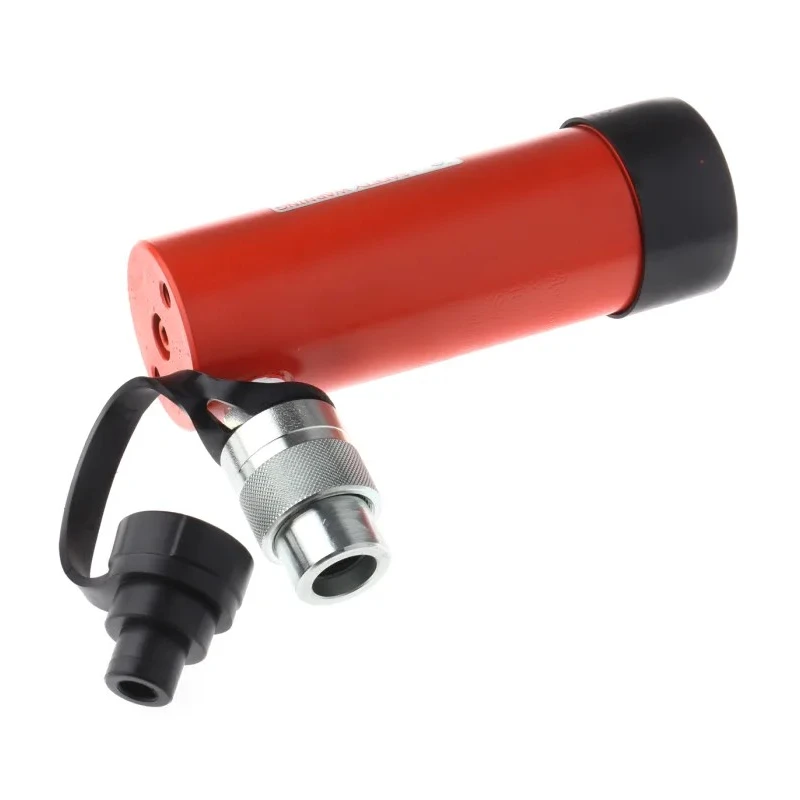

Hi-Force Portable General Purpose Hydraulic Cylinder Single Acting 10 t Capacity 100 mm Stroke HSS104

Hi-Force HSS104 is a portable, general purpose hydraulic cylinder designed for industrial applications requiring high power and precision. This single acting hydraulic cylinder features a robust construction from high strength alloy steels with a chrome plated piston rod to resist corrosion and provide long service life.

With a stroke length of 100 mm and a maximum operating pressure of 700 bar, the HSS104 is capable of delivering a cylinder capacity of 10 tonnes, making it ideal for demanding lifting and pushing tasks where flexibility and high cycle capability are essential.

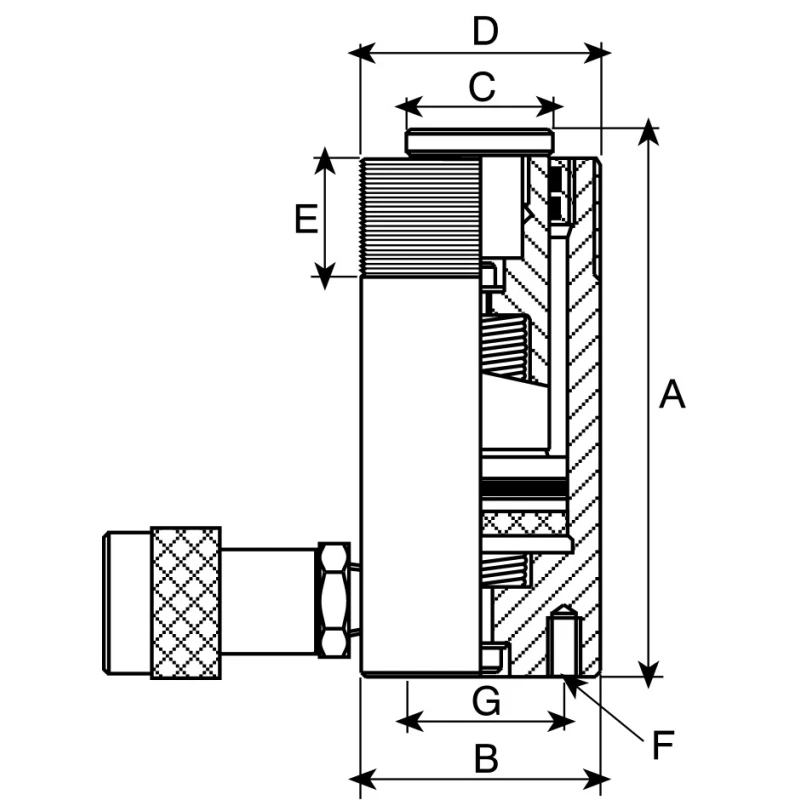

The cylinder effective area of 14.4 cm² and oil capacity of 144 cm³ ensure efficient hydraulic performance. Its compact design offers a closed height of 175 mm and an extended height of 275 mm with an outside diameter of 57 mm, facilitating ease of use in confined spaces.

Non-metallic bearings on the piston rod and stop ring deliver excellent wear resistance with low friction and high side load bearing capacity. Heavy duty return springs support the piston retraction fully, and steel stop rings enhance capacity to withstand side loads and retain piston position.

All port connections are 3/8 inch NPT and include a high flow, quick release female half coupler for swift hydraulic connection.

Designed for use in diverse industries including mining, power stations, railways, shipyards, and steelworks, this hydraulic cylinder balances ruggedness with performance. Replacement seal kits are available for maintenance to extend service life and reliability.

This Hi-Force hydraulic cylinder is a new product manufactured in the United Kingdom and meets a minimum safety factor of 3:1 for dependable operation under pressure. Constructed from high strength alloy steels for durability and reliability.

Single acting spring return action suitable for lifting and pushing applications. Chrome-plated piston rod for corrosion resistance and enhanced performance. Maximum operating pressure of 700 bar ensures high power output.

Compact dimensions with 175 mm closed height and 275 mm extended height. Non-metallic bearings provide excellent wear resistance with low friction. Equipped with high flow quick release female half coupler for easy connection.
